TS line TS010 - Keyboard Description

7
USE
USEUSE
USE

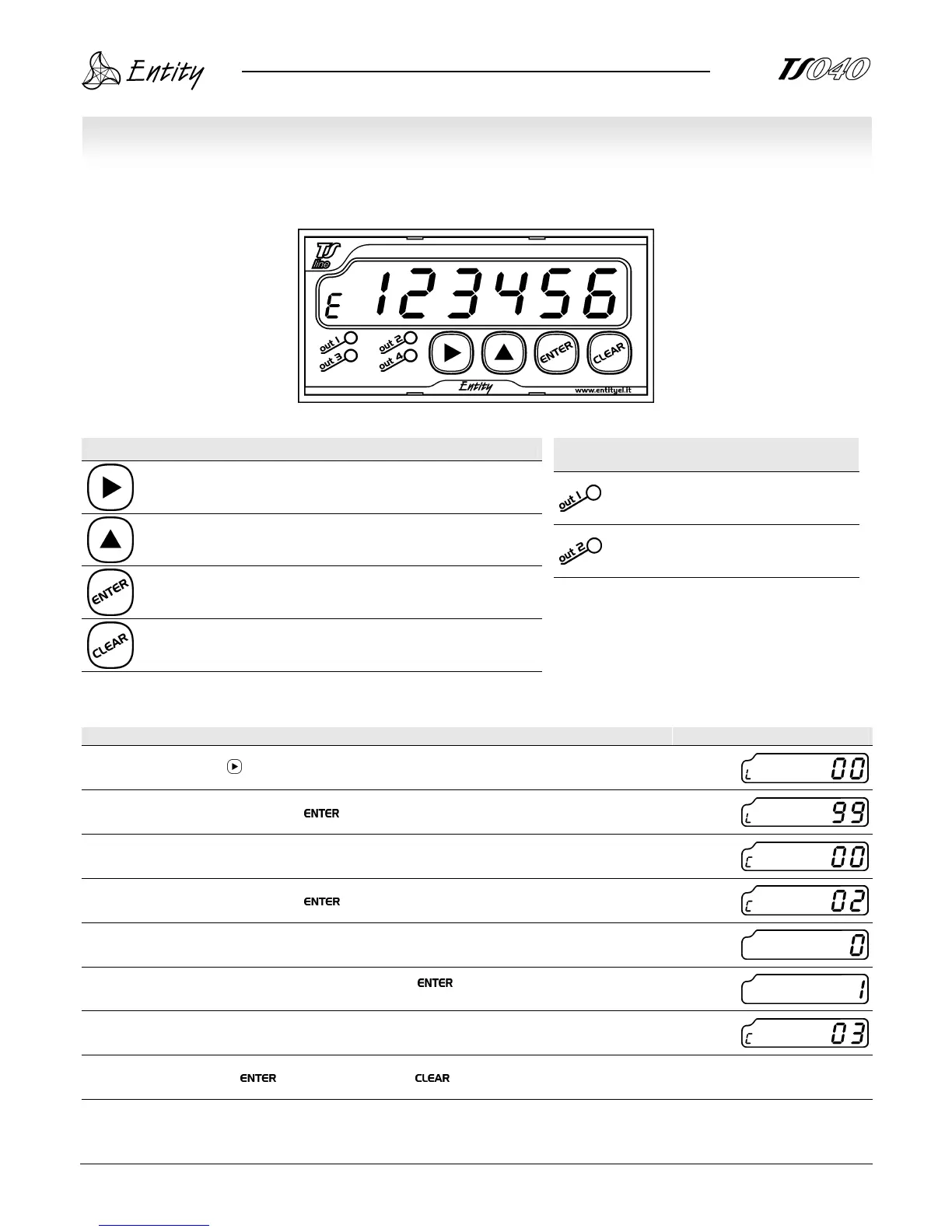

KEY BOARD DE SCRIP TIO N
KEY BOARD DE SCRIP TIO NKEY BOARD DE SCRIP TIO N
KEY BOARD DE SCRIP TIO N
Key Normal mode Set-up mode
Start set-up mode; Shift to the right the flashing digit;
- Increment flashing digit;
- Enter value;
- Reset visualized value;
LED Meaning (if lighted)
“OUT 1” output is on (first threshold);
“OUT 2” output is on (second threshold);
SET UP PROCE DURE
SET UP PROCE DURESET UP PROCE DURE
SET UP PROCE DURE
Description Display
To start setup mode, push ; “L00” will flash on the display;
Enter “99” with arrow keys, confirm with ;
“C00” will flash on the display;
Insert the parameter code and then push ;
On the display will appear the value of the chosen parameter;
Change the value with arrows keys as desired and confirm with ; the value will not be accepted if goes
behind its limits;
The next parameter code will appear on the display;
To continue with setup, push ; to exit setup mode, push four times.
