Manual of Mid-drive Conversion Motor——TSDZ8
Document No.：TSE-PM-MM-TSDZ8-A-01(EN)
Suzhou Tongsheng Electric Appliances Co., Ltd 5 / 11

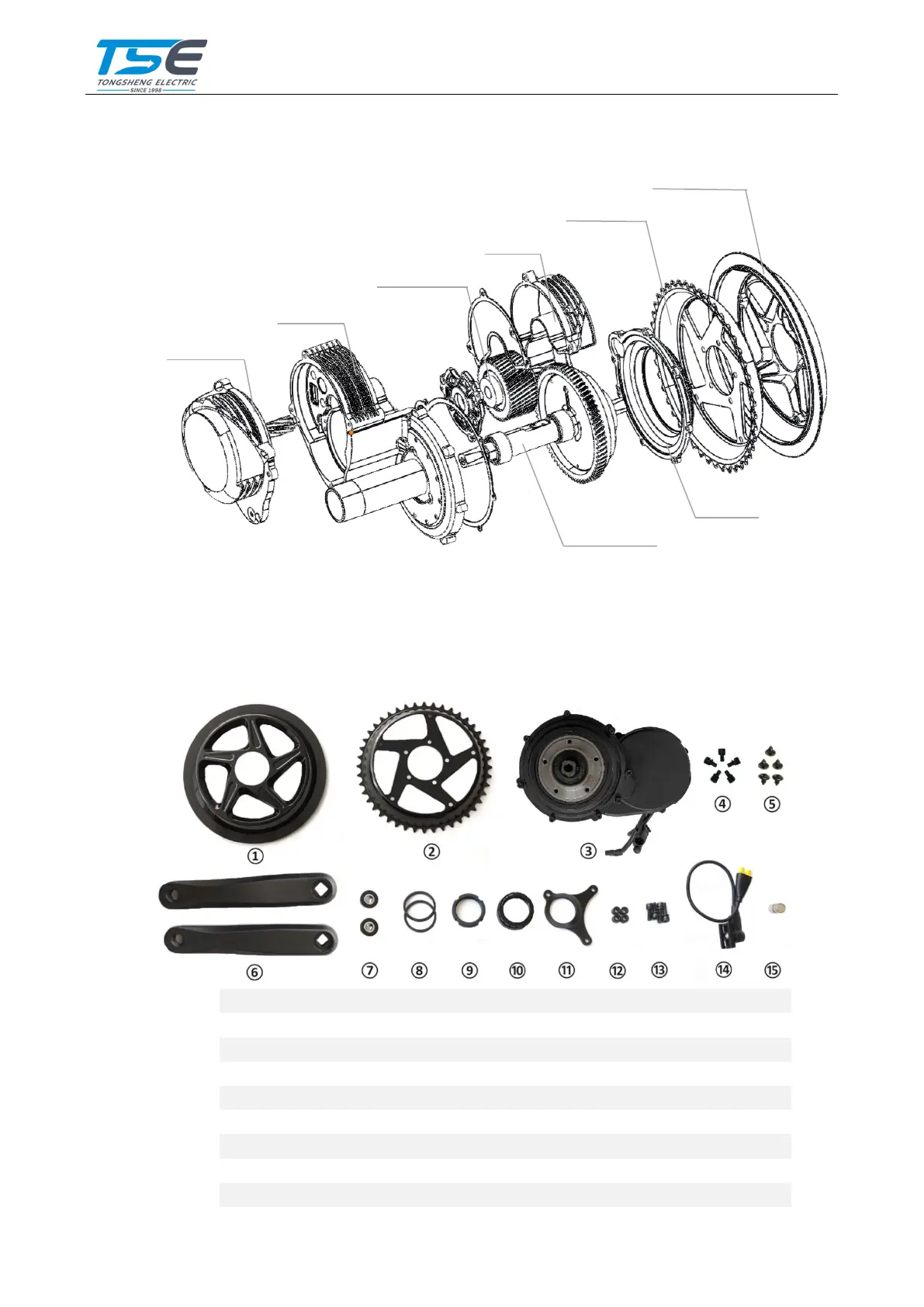

2.3 Mechanical composition
3 Motor Parts and Installation Tools
3.1 Motor Parts List
Item Description Q.Ty Item Description Q.Ty
① Cover Of Chain Wheel ×1 ② Chain Wheel ×1
③ TSDZ8 Motor Body ×1 ④ M5 Screw ×5
⑤ M4 Self-Tapping Screws ×5 ⑥ Crank ×2
⑦ Crank Screws ×2 ⑧ Washers ×2
⑨ Locking Nut ×1 ⑩ Cover Of Locking Nut ×1
⑪ Fixing Plate ×1 ⑫ Washer Of Fixing Plate ×4
⑬ Screw Of Fixing Plate ×4 ⑭ Speed Sensor ×1
⑮ Magnetic Button ×1
Main Body
Reduction Gear
Torque Sensor
Controller
Cover Of Chain Wheel
