Unpacking and Setting Up the UWCPC 2-3
2. Install the growth tube wick. The UWCPC is shipped from the
factory with the growth tube wick installed. The following wick
installation instructions only need to be followed if the wick is
not already installed.
a. Loosen the two thumbscrews located at the Sample Inlet.
b. Remove Sample Inlet assembly.
c. Slip growth tube wick over exit end of the Sample Inlet
assembly.
d. Slide growth tube wick into the UWCPC and press to seat
the O-ring seal.
e. Tighten the thumbscrews securing the Sample Inlet
assembly.

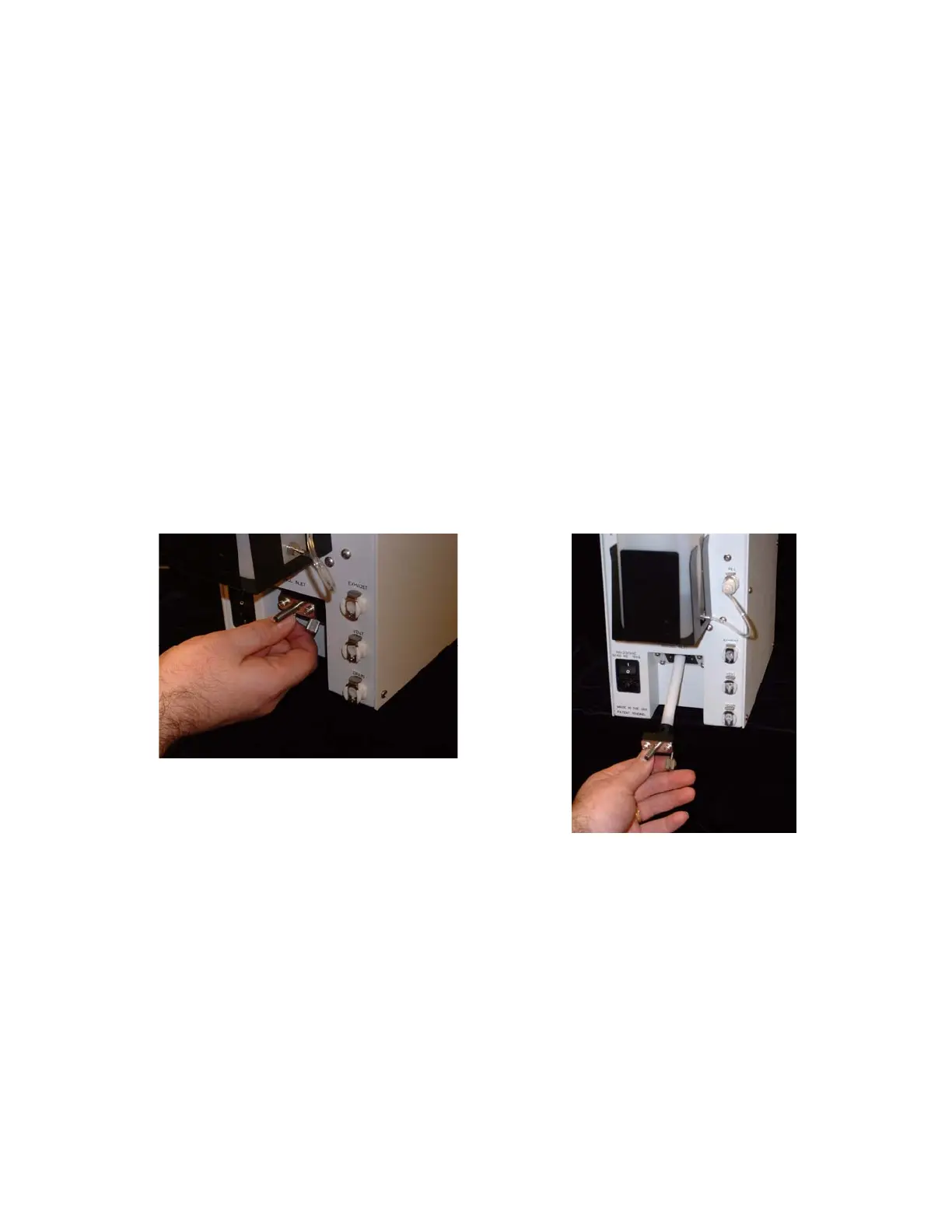

Figure 2-1
Location of UWCPC Wick on Sample Inlet
Assembly
Figure 2-2
Installation of UWCPC Wick on Sample Inlet
Assembly
3. Attach the water source.
a. Fill water source bottle with distilled water. Tap water is not
recommended.
b. Place water source bottle into bottle bracket on the back of
the UWCPC.
c. Insert connector from the source bottle into the “Fill”
connector on the back of the UWCPC.
