4–2 AeroTrak™ Remote Airborne Particle Counters

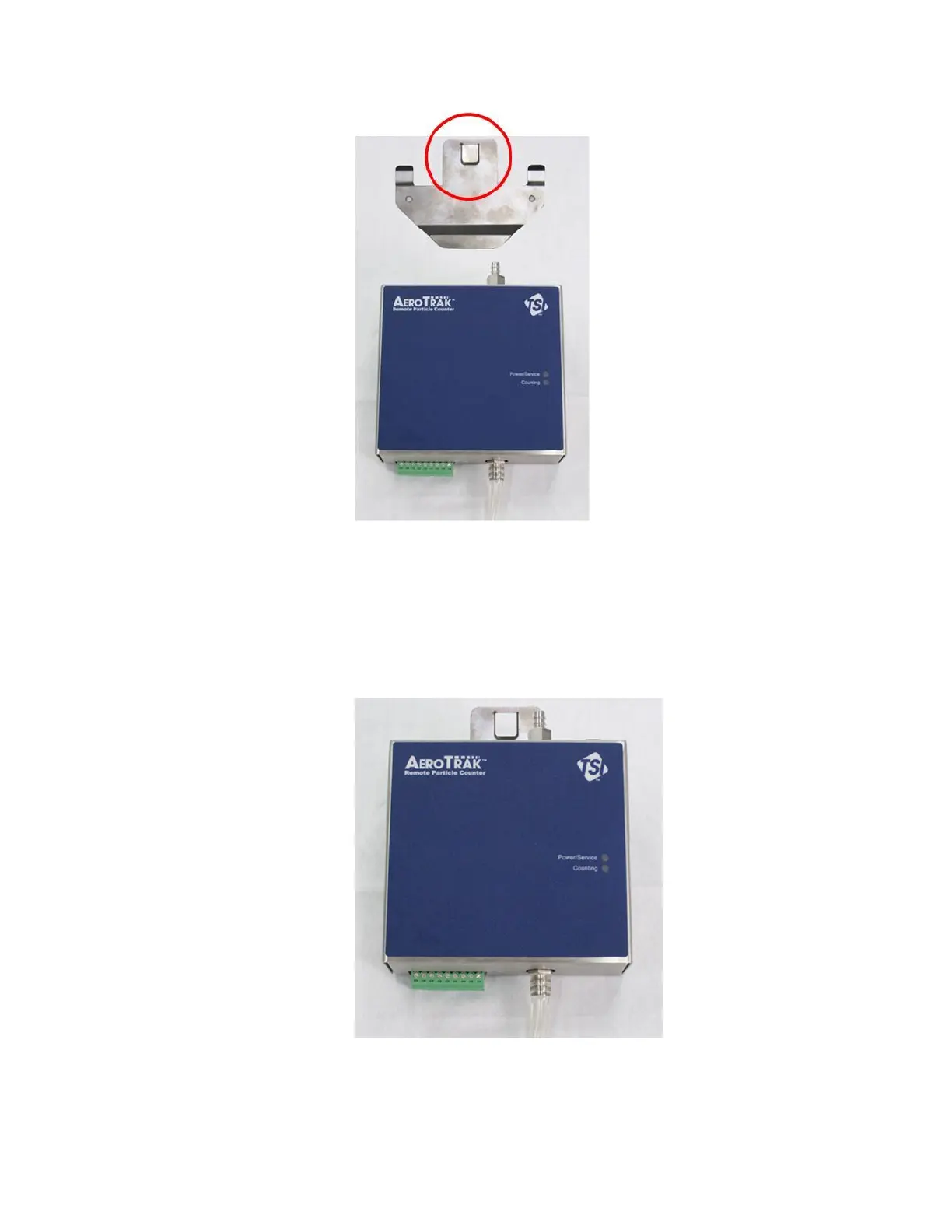

Mounting Bracket (optional)
To install the mounting bracket:
1. The bracket is provided with two 0.169 inch (4.30 mm) diameter
holes, suitable for a #6 or M4 screw. Screw the bracket to the
mounting surface using appropriate screws.
2. Slide the particle counter onto the mounting tabs at the top of the
bracket and snap it into the locking tab (circled above).
Remote Airborne Particle Counter Mounted on Optional Bracket
