Installation and Operation 4–3
To remove the Remote Airborne Particle Counter from the mounting
bracket:
1. Press the locking tab at the top of the bracket.
2. Lift the particle counter off the mounting tabs.
Tubing Connections

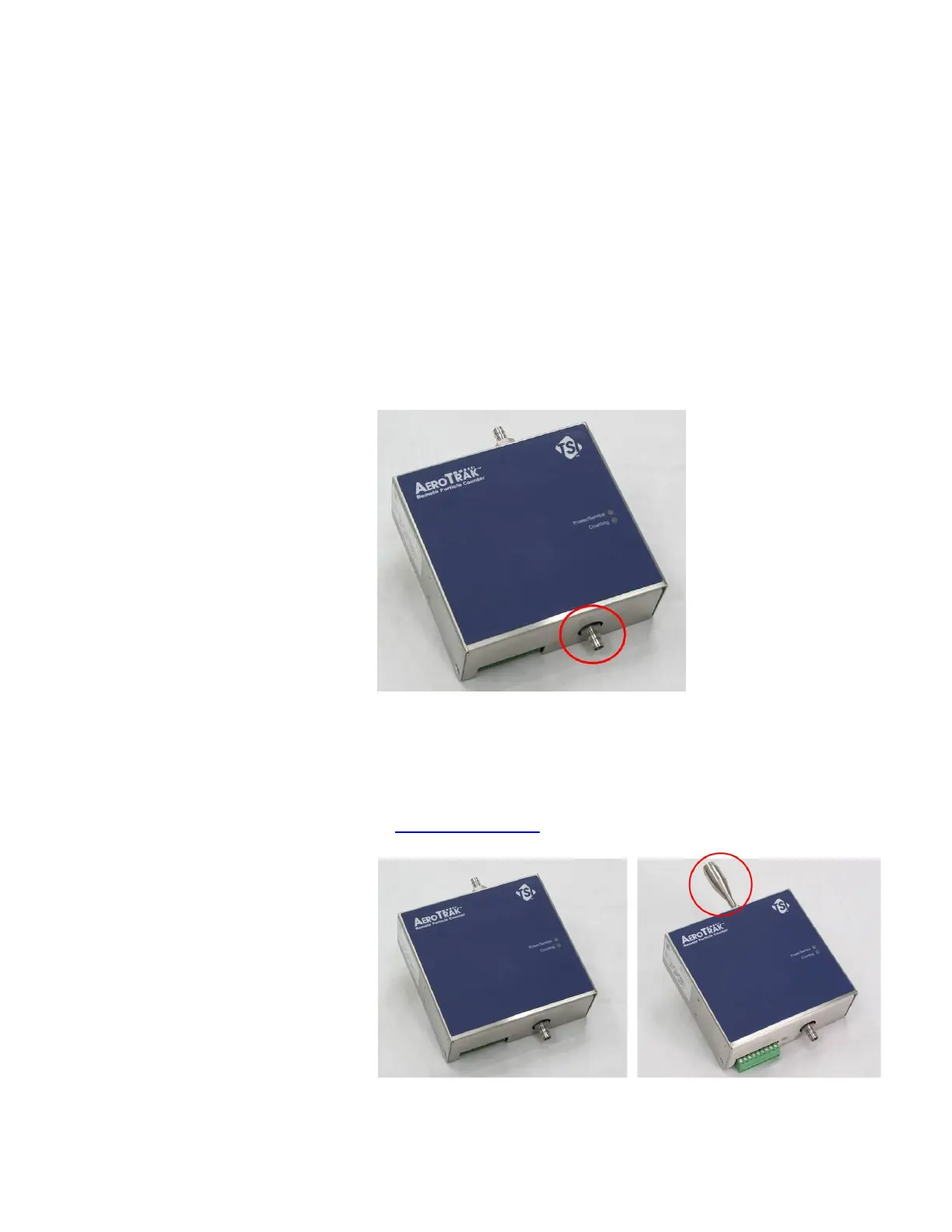

Vacuum Connector
The vacuum connection at the bottom of the device (next to the electrical
connections) should be connected to a vacuum pump or central building
vacuum supply capable of providing 15 inHg (38 cmHg) of vacuum at the
rated flow rate of 0.1 or 1.0 cfm (2.8 or 28.3 L/min).
Inlet
The sampling inlet at the top of the device can be configured with a
barbed inlet (default) for sampling or connection to a sample tube. The
barbed fitting can also be replaced with a screw-on isokinetic sampling
inlet configured based on the sample flow as shown below. See the table
of optional accessories in Chapter 1 for more information.
