 Press cover plate onto PresSura Controller.

Power Requirements

Digital Interface

Module (DIM) Each

Through the Wall

Sensor Each

24VAC, 50/60 Hz, 3VA

WARNING: Controller must be wired exactly as wire diagram shows. Making modifications to the

wiring may severely damage the unit.

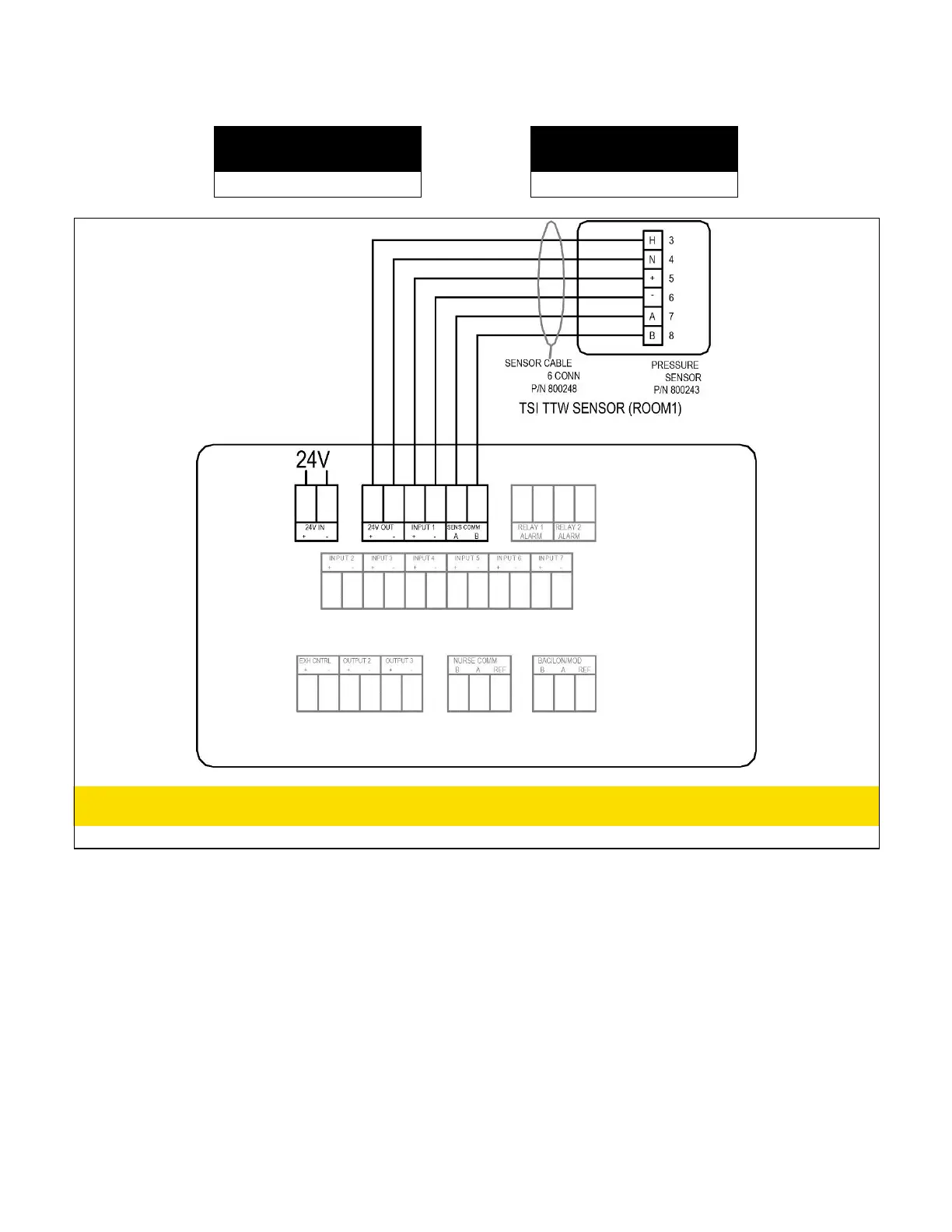

Figure 8: Wiring Diagram –Through-The-Wall Sensor Wiring to Model RPC30
