Pressure Transducer Installation
WARNING
801913 pressure plates must be mounted in the
wall between the controlled space (clean room)
and referenced space (hallway), exactly as shown
in Figure 5 and Figure 6. This installation is not
representative of the through penetrating product
tested under UL.
 Install pressure transducer in desired location
(typically above ceiling). The transducer must be
mounted on a wall in the correct position per
Figure 5 (screws not provided). Do not mount
pressure transducer to duct or other vibrating
surface.
 Wire the pressure transducer per Figure 10 or
Figure 11. Run sensor cable to the Clean Room
Pressure Controller 6”  4” electrical rough-in box.
 Determine pressure sensor location (Figure 1,
Figure 5 and Figure 6). Pressure sensor typically
mounts in the reference space, and the plate
mounts in the clean room.
 Drill a 2¼-inch hole through each side of the wall
to accept the sensor tube.
 Run pneumatic tubing from transducer to sensor
locations. For a positively pressurized space, the
high port should be connected to the controlled
space and the low port to the reference space.
Similarly, for a negatively pressurized space, the
low port should be connected to the controlled
space and the high to the reference space.
 Connect the pneumatic tubing to the nipple on
the back side of the pressure plate.
 Insert the pressure plate into the hole in the wall.
Screw the pressure plate to the wall. The finished
assembly should look like Figure 5.

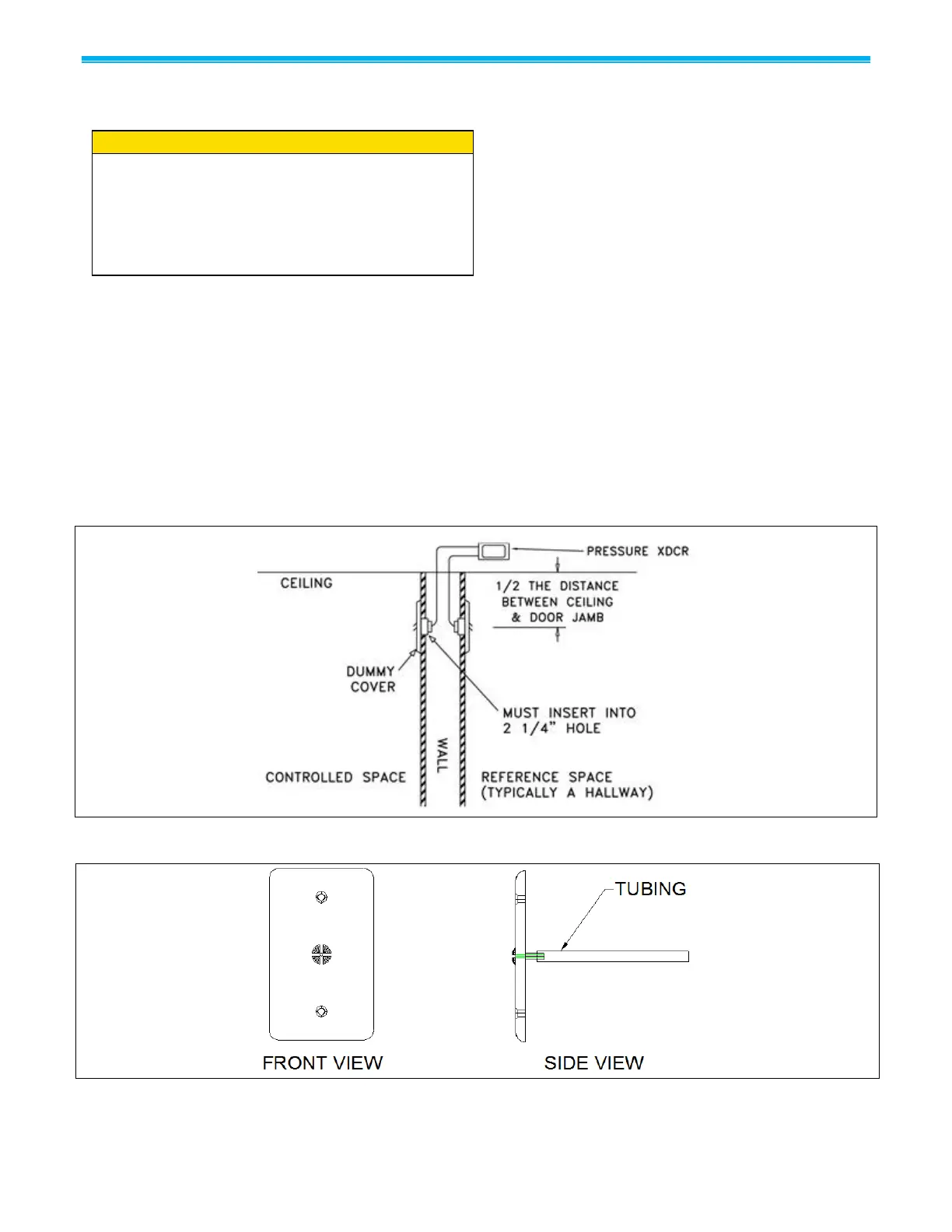

Figure 5: Cutaway View of Mounted Pressure Transducer Assembly
