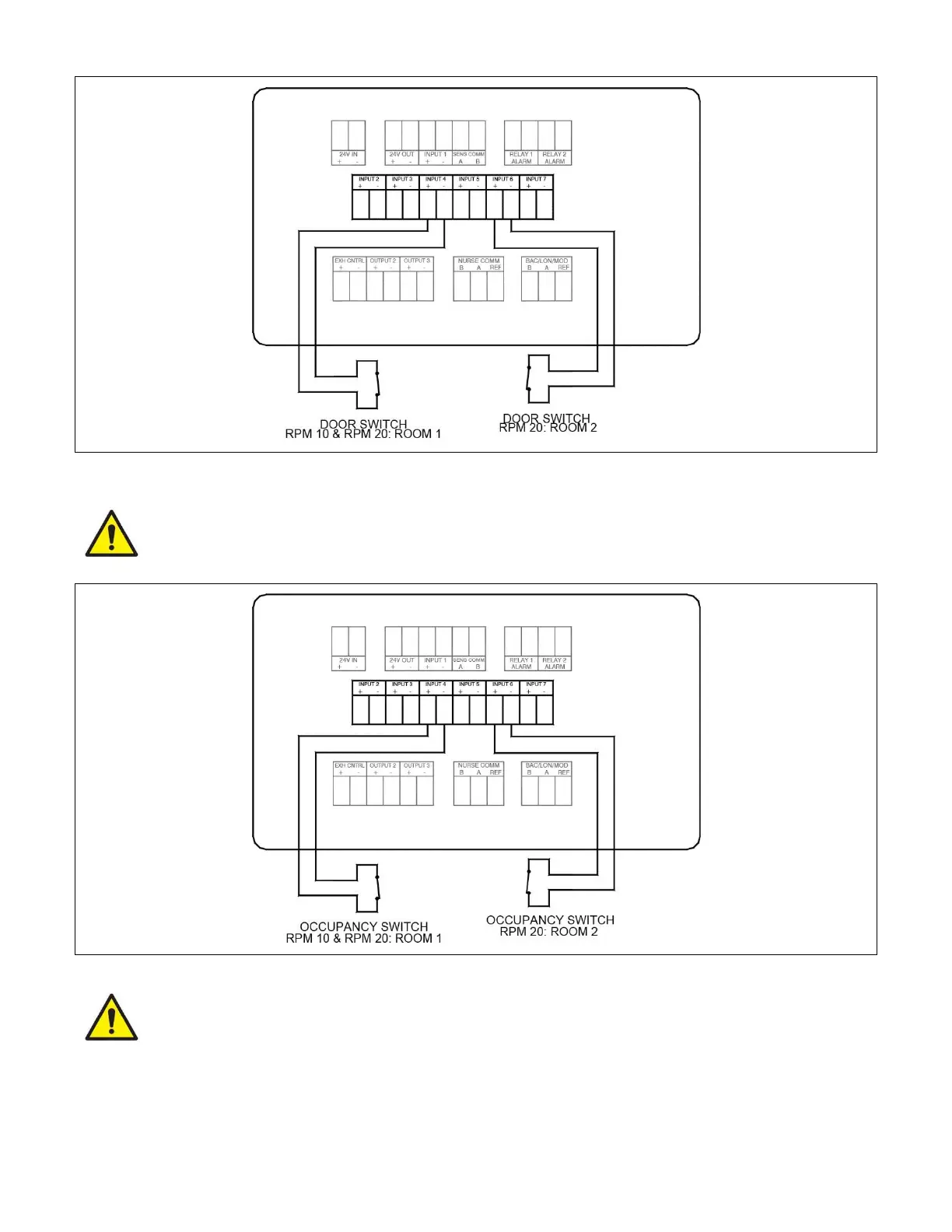

Figure 14. Optional Door Switch Wiring to Model RPM10 / RPM20
NOTE: Model RPM10 does not support Room 2 Door Switch.
RPM20-CC does not support Door Switch when configured for use with Remote with
Pump Particle Counter.
Figure 15. Optional Occupancy Sensor Wiring to Model RPM10 / RPM20
NOTE: Model RPM10 does not support Room 2 Occupancy Sensor.
Model RPM20-CC does not support Occupancy Sensors when configured for use with
Remote with Pump Particle Counter
