TSI Instruments PRESSURA RPM20 - Pressure Transducer Sensors Wiring; Wiring Diagram for Pressure Transducers

p. 7 of 16
NOTE: Number of sensors will vary per application.

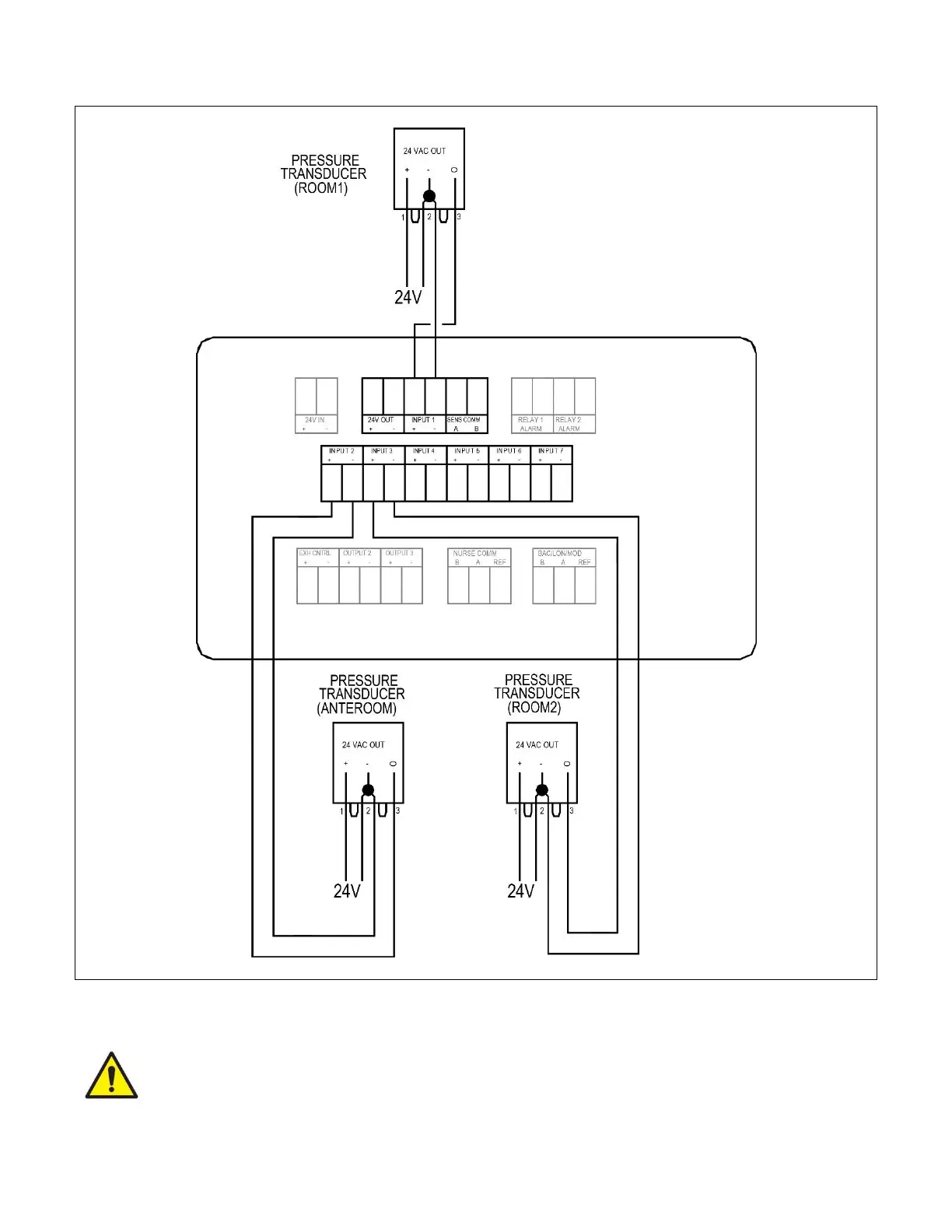

Figure 9. Pressure Transducer Sensors Wiring to Model RPM10 / RPM20
NOTE: Model RPM10 does not support Room 2 or Anteroom Pressure Transducer Sensors.
RPM20-CC only does not support Room 2 or Anteroom Pressure Transducers when
configured for use with Remote with Pump Particle Counter.
NOTE: Number of sensors will vary per application.
