TSPROF KADET PRO - Setting the rotating mechanism; Setting the hinge unit

20
It is not allowed to fold the construction with an installed rotary mechanism!
Avoid hitting the stand with the rack hard.
It is not allowed to fold the construction with an untightened screw!

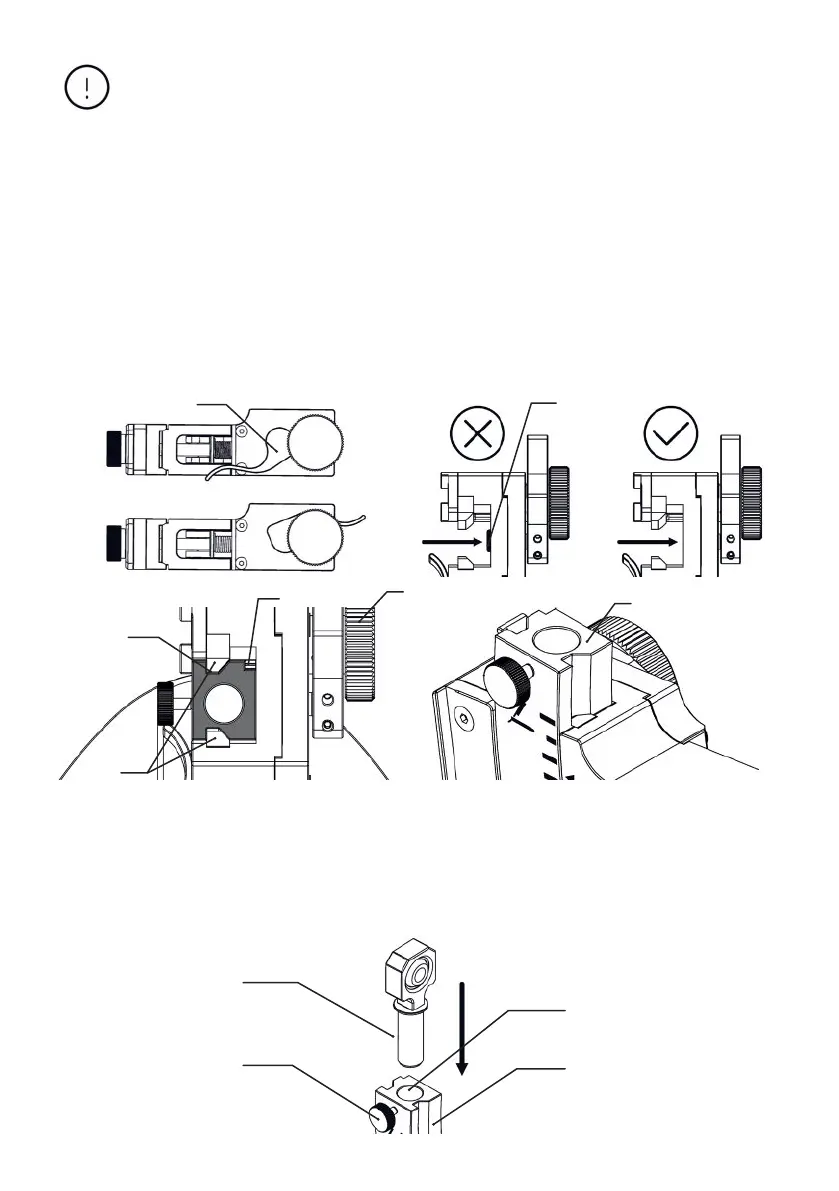

5.3 Setting the rotating mechanism:
Installation is performed with the removed hinge unit
◆ loosen the xating handle (1);
◆ align the seat pads (2) with the slots (3) on the arched rack (4), with the pad (5) pressed down as
shown in g. 3;
◆ move the rotating body (6) smoothly, without sudden efforts, down the arched rack until the
pinion engages with the teeth of the rack (7);
◆ further movement on the arched rack is done with the lift adjusting knob (8).
(g. 3)
1
1
3
2
4
5.4 Setting the hinge unit:
Hinged joint (1) is supplied removed from the rack (4) in order to avoid damages.
◆ place the hinged joint in the slot (2) with a light push;
◆ x the hinge unit with the thumbscrew М3х5х12 (3).
(g. 4)
5
2
3
7
8
4
