TSPROF KADET PRO - Setting the clamps; Assembling and setting of the abrasive holder; Setting the sharpening stone

21
2
1
3
(g. 7)
(g. 5)
2
1 3
1
2
3
4
7
5
6
(g. 6)

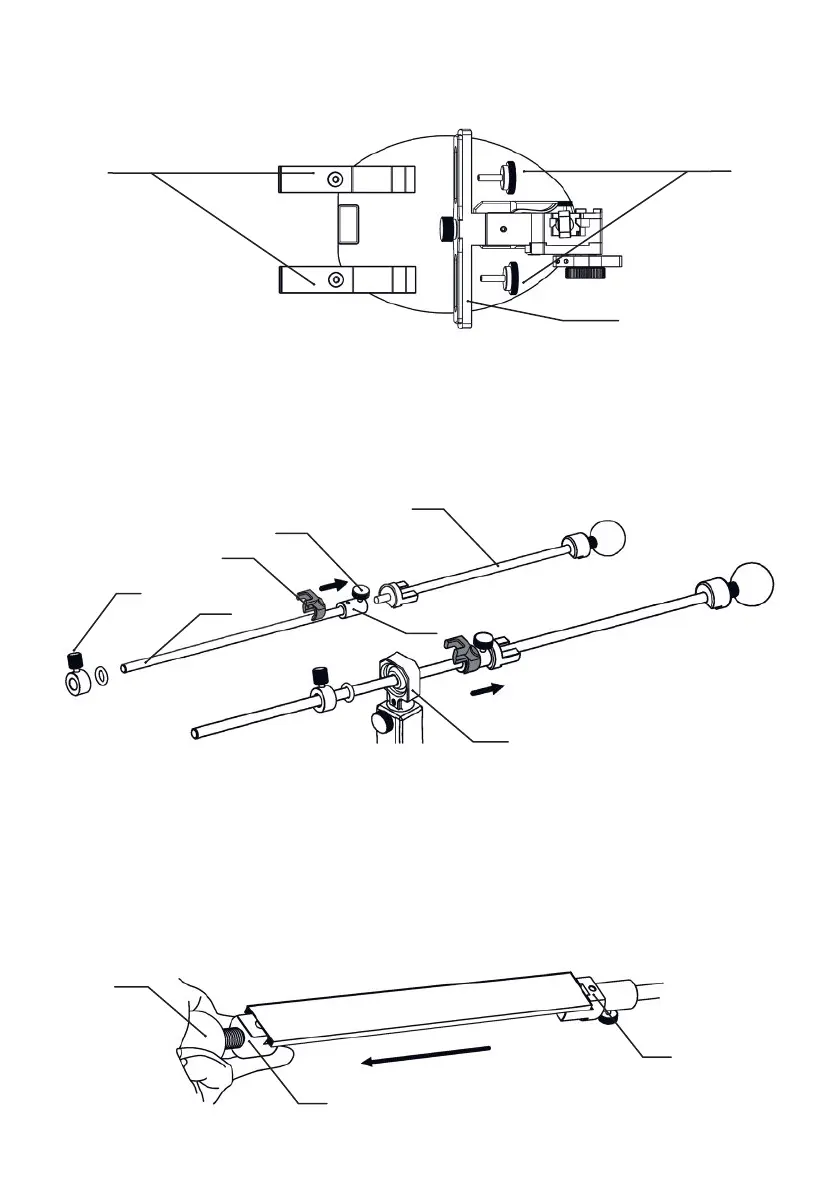

5.5 Setting the clamps:
◆ place the clamps (1) one at a time on the frame (2) and tighten the thumb screw М5х18 (3) on each
of them until bumping.
5.7 Setting the sharpening stone:
To set a sharpening stone on a standard length blank, 160mm:
◆ pull the movable stop (2) towards you, overcoming the resistance of the spring;
◆ for convenience, put the holder with the wooden ball handle(1) in the palm of your hand or thumb;
◆ set the sharpening stone with a blank in the groove ofthe xed stop (3);
◆ level the stone and release the movable stop (2).
5.6 Assembling and setting ofthe abrasive holder:
◆ loosen the screw (2) and insert the abrasive holder (1) into the coupling (5); secure it with the
screw (2);
◆ install the parking bracket on the coupling (3), as shown in g. 6;
◆ install the guide rod (4) in the hinge unit (6), and then installthe abrasive holder limiter (7).
