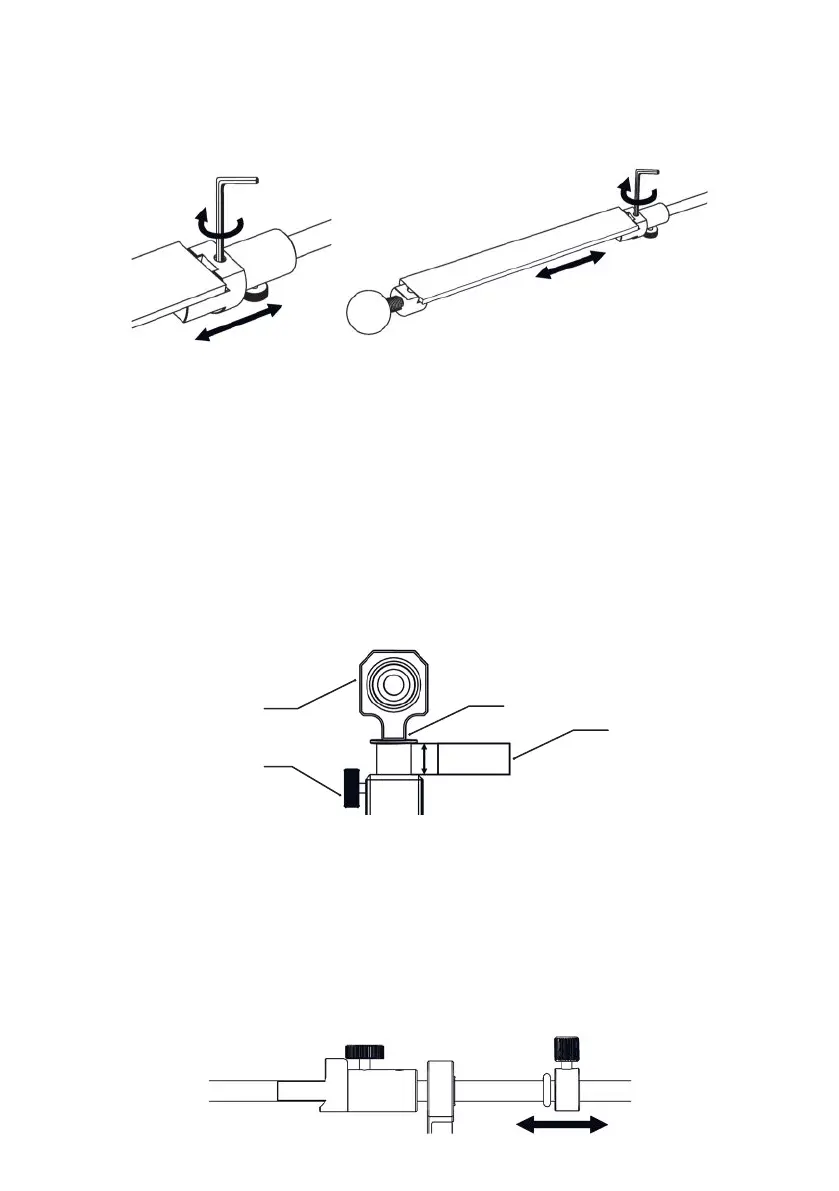

To set a sharpening stone of another length, adjust the position of the xed stop:
◆ loosen the xed stop screw with a 1.5 mm allen key;
◆ adjust the position of the xed stop;
◆ tighten the screw and set the sharpening stone.
5.8 Abrasive thickness compensation:
When working with abrasives of different thicknesses, it is recommended to level the difference for
consistency of the sharpening angle:
◆ before you start, take the rst abrasive;
◆ loosen the thumbscrew M3x5x12 (3) securing the hinge unit (1);
◆ lift the hinge unit to the height of the abrasive (4), with the ledge (2) of the hinge unit resting
lightly on the surface of the abrasive;
◆ x the position of the hinge unit with the M3x5x12 screw (3);
◆ during sharpening, repeat the above steps when switching to a new abrasive of a different
thickness.
When using sharpening stones ofthe same thickness, leave the hinged joint in the lower position.
5.9 Abrasive holder limiter:
To prevent the sharpening stone from breaking off, set the abrasive holder with a limiter:
◆ loosen the thumb screw of the limiter;
◆ determine the maximum stroke of the sharpening stone so that it does not extend its plane
beyond the cutting edge of the knife along the entire length;
◆ place the limiter close to the hinge unit and tighten the thumbscrew.
Despite the fact that there is a rubber damper in front of the limiter, avoid sharp impacts of the limiter
on the hinged unit.
(g. 10)
