TuffStuff AXT-225 - Step 13 Assembly List

AXT-225 Deluxe Home Gym www.tustutness.com
29
61
52
115
41
9
52
115
41
9
10
4
79
9
79
41
115
52
79
9
79
41
115
52
46
9
41
115
52
30
82
41
115
52
9
109
109
79
79
61

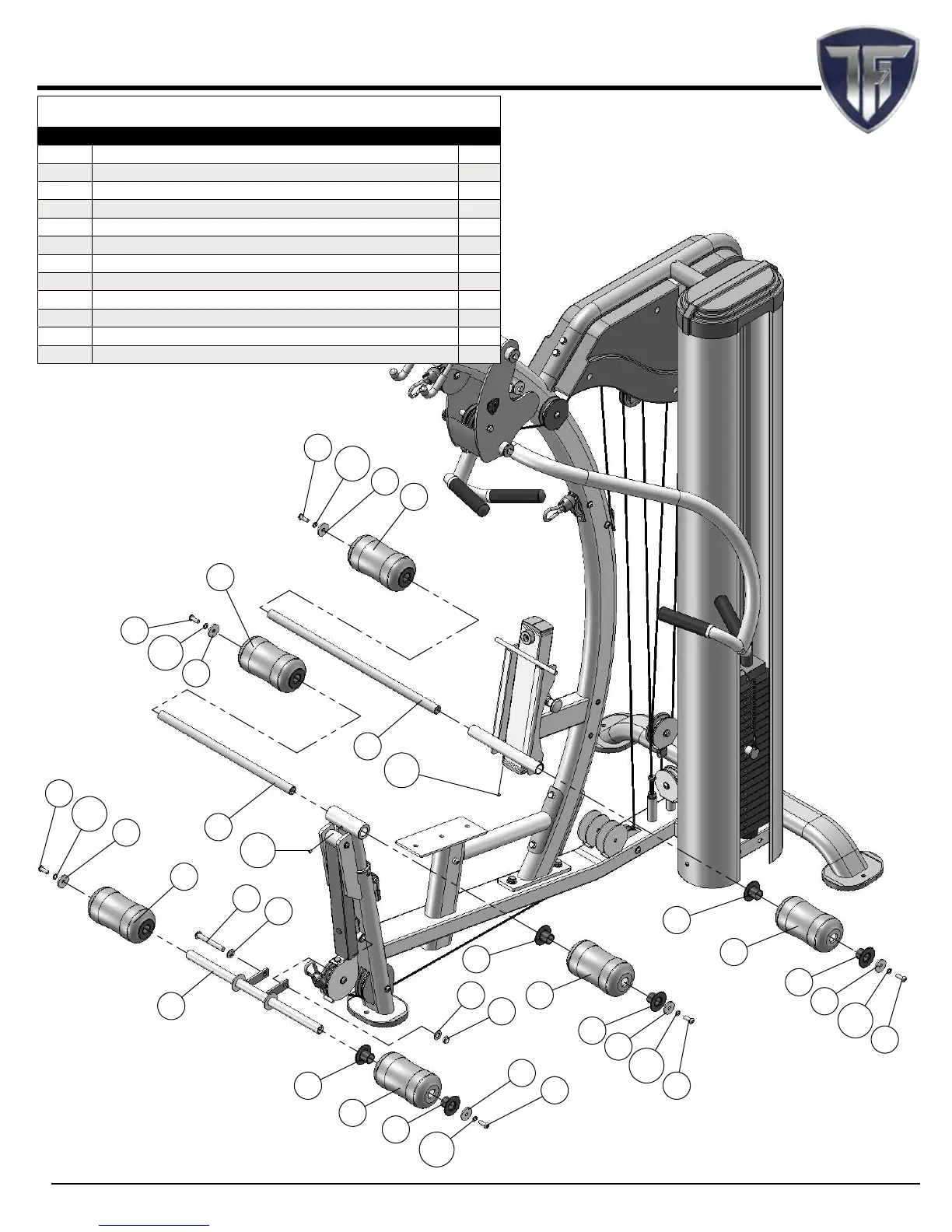

Step 13 Assembly List
Item # Description Qty.
4 FOOT ROLL TUBE 19 7/8 1
9 FOAM FOOT ROLL 1 X 4 X 7 W/VINYL 6
10 FOOT ROLL TUBE 1 RD X 25 9/32 1
30 SWIVEL FOOT ROLL HOLDER 1
41 SUPPORT WASHER Z/P 3/8 ID X 1 1/2 OD X 3/16 6
46 BUTTON HEAD SOCKET CAP SCREW Z/P 1/2-13 X 3 3/4 1
52 BUTTON HEAD SOCKET CAP SCREW Z/P 3/8-16 X 1 6
61 FLAT WASHER SAE Z/P 1/2” 2
79 NYLON FOOT ROLL BUSHING 12
82 NYLON INSERT THIN PATTERN LOCK NUT Z/P 1/2-13 1
109 SOCKET SET SCREW Z/P 1/4-20 X 1/4 2
115 SPLIT LOCK WASHER Z/P 3/8” 6
Step 13
