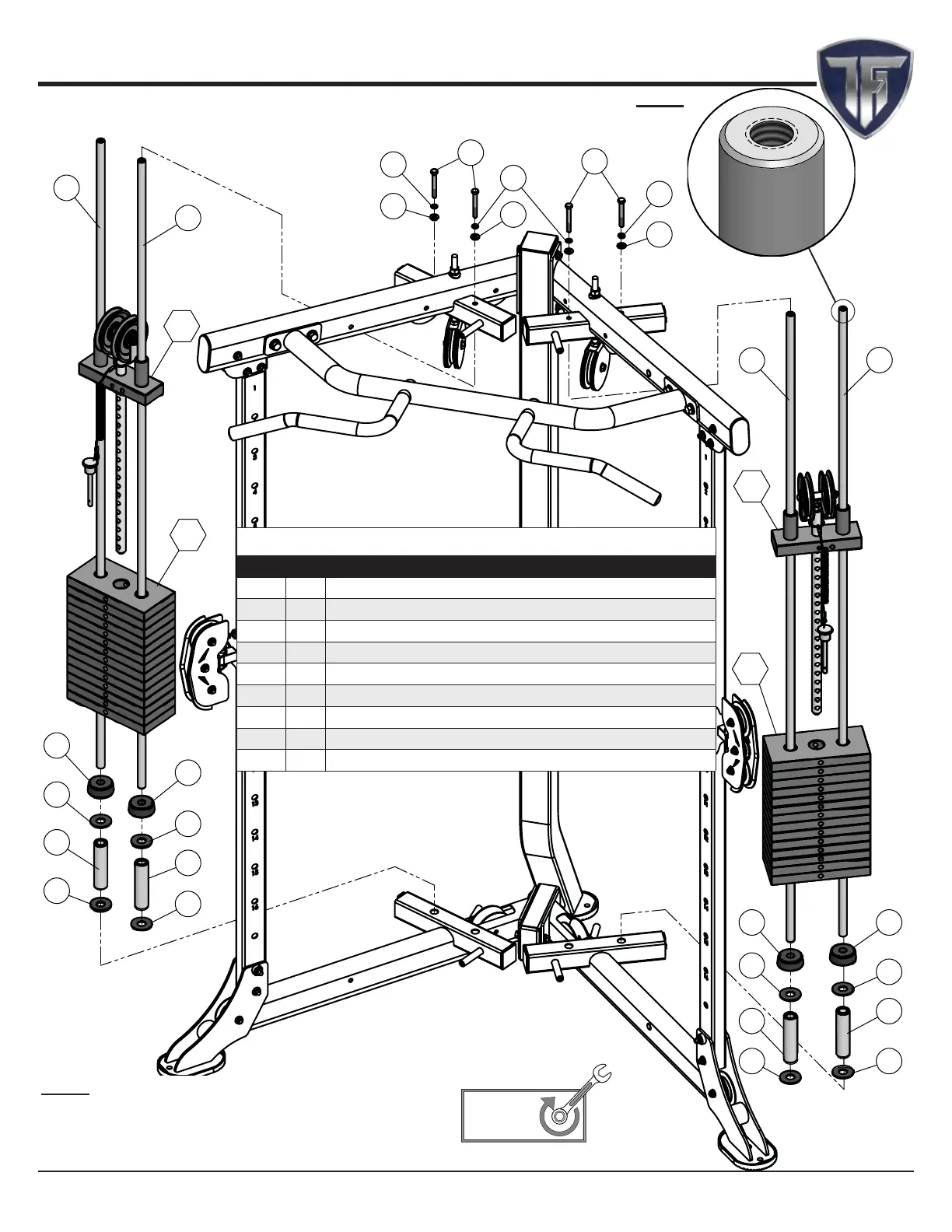

Step 8 (Standard 150 lbs Weight Stacks)
Step 8 150 lbs Wt Stacks Assembly List
Item Qty. Description
10 4 GUIDE ROD
17 8 FLAT WASHER Z/P 3/4 X 2
18 4 WEIGHT STACK SPACER 1 1/4 RD X 5
19 4 RUBBER DONUT 3/4 X 2 1/2
33 4 HEX HEAD CAP SCREW GR-5 Z/P 3/8-16 X 2 3/4
39 4 SPLIT LOCK WASHER Z/P 3/8"
43 4 FLAT WASHER SAE Z/P 3/8"
*15 2 10 LB TOP PLATE W/ADJ SLTR BAR 19 BLK WTS ASSY
*51 28 10 LB STEEL WEIGHT PLATE BLK 4 9/16 X 9 7/16 ASM
Note:
Threaded Sockets toward the top of the unit.
100%
Fully Tighten
Wrench tighten all hardware in this step.
Note:
• It is strongly recommended that two people
participate in this assembly step.
• Some parts have been removed for Clarity.
20 CDP-300 Dual Adjustable Pulley System W/150 lbs Weight Stacks
