TuffStuff SPT-6 - Page 4

SPT-6 SIX PACK TRAINER
58
49
58
49
67
67
49
6
49
67
67
55
49
19
58
49
58
49
67
67
49
6
49
67
67
55
49
19
3

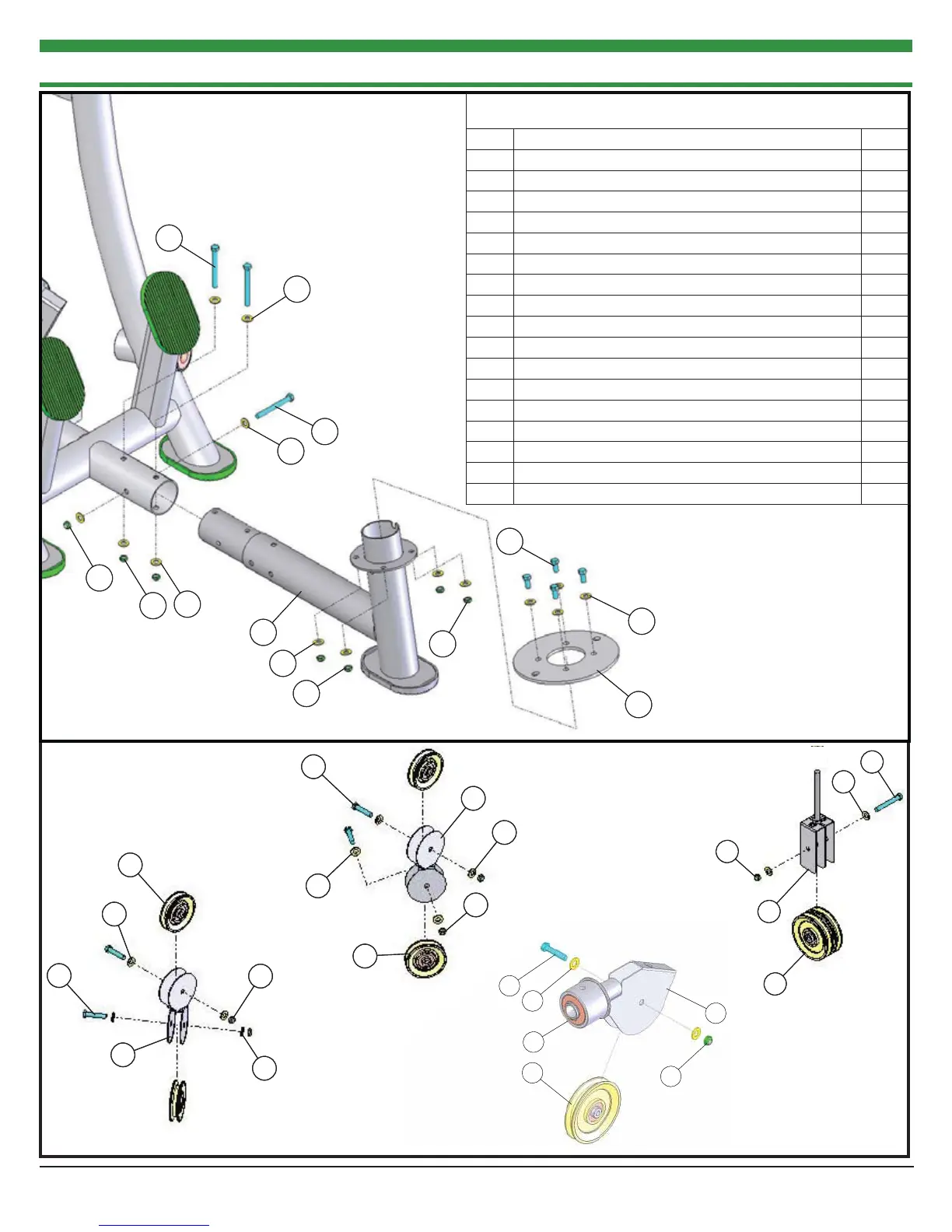

Step 2
Assembly List
Item # Description Qty.
1 ADJUSTABLE DOUBLE PULLEY BRACKET 1
4 DOUBLE FLOATING PULLEY BRACKET LT 1
5 DOUBLE FLOATING PULLEY BRACKET RT 1
6 FRONT FRAME 1
11 MAIN FRAME 1
19 SELECTOR PLATE 1
21 TOP BEARING HOUSING 2
23 TOP SWIVEL PULLEY BRACKET 2
49 FLAT WASHER SAE B/O 3/8” 28
55 HEX HEAD CAP SCREW GR-5 B/O 3/8-16 X 1 4
56 HEX HEAD CAP SCREW GR-5 B/O 3/8-16 X 1 3/4 6
57 HEX HEAD CAP SCREW GR-5 B/O 3/8-16 X 3 1
58 HEX HEAD CAP SCREW GR-5 B/O 3/8-16 X 3 1/2 3
67 NYLON INSERT THIN PATTERN LOCK NUT B/O 3/8-16 14
68 BLACK NYLON PULLEY 3/8 X 1 X 3 1/2 4
69 NYLON PULLEY 3/8 X 1 X 4 1/2 BLACK 4
75 RETAINING SNAP RING EXT. PLAIN 1 1/4” 2
68
56
49
4
67
49
5
56
49
67
49
68
47
84
43
70
68
56
49
4
67
49
5
56
49
67
49
68
47
84
43
70
47
43
67
57
49
1
69
47
43
67
57
49
1
69
21
56
49
67
23
69
21
56
49
67
23
69
