Mounting the Platforms

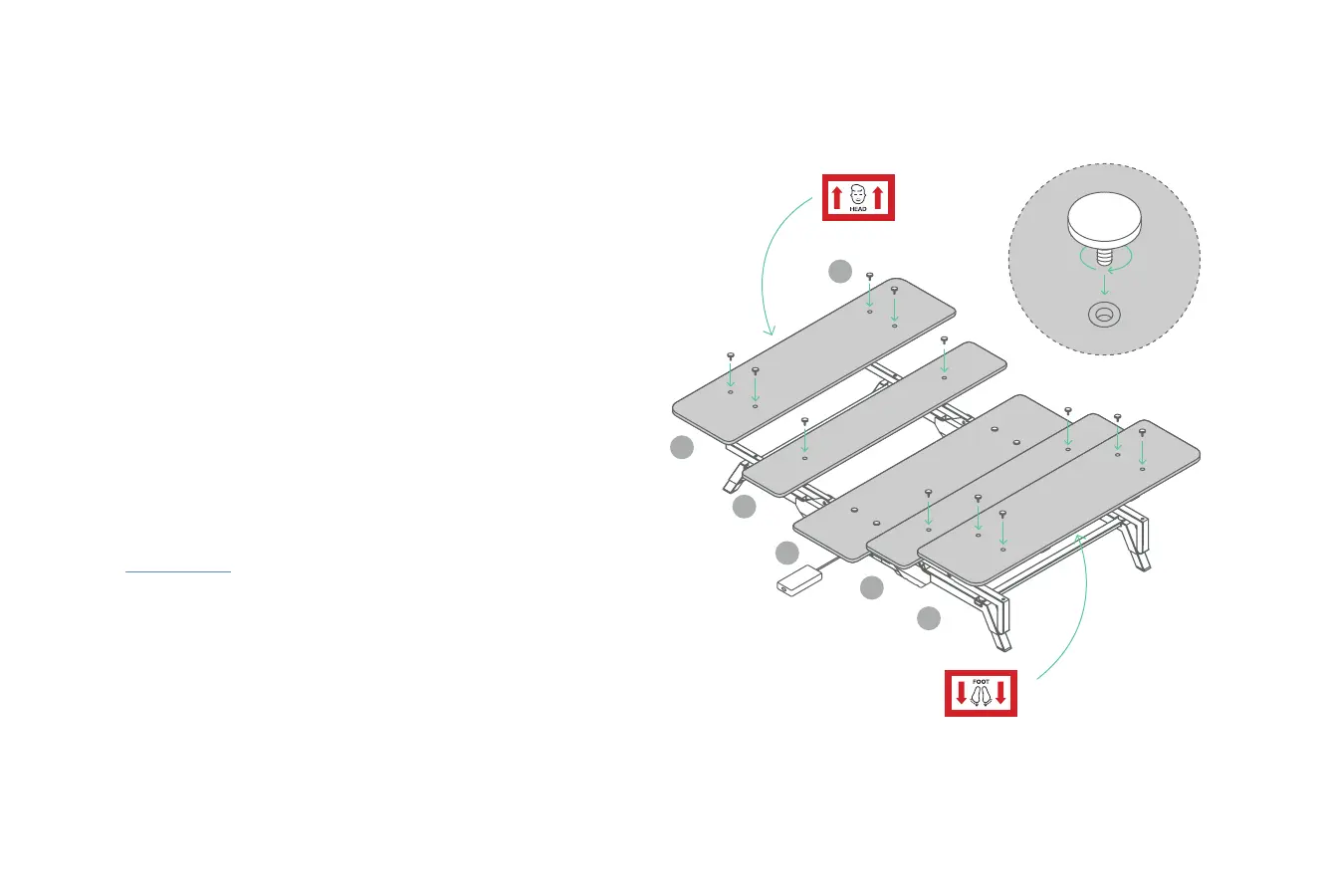

1. Use 4 Platform Screws (N) to attach the narrower,
Inner Platforms (G, L) to the Side Rails on either
side of the Base Platform.
2. Lay the Head and Foot Platforms (F, M) in
position on the Side Rails.
3. Use the final 8 Platform Screws (N) to attach the
Head and Foot Platforms to the Side Rails. (A, B).
IMPORTANT
• Use the labels on the Head and Foot Platforms (F, M) to ensure
they are identified correctly.
• Use the labels on the Side Rails (A, B) to ensure the Platforms
are at the right end.
• Ensure the Platforms are oriented correctly. The curved edges
should face outwards and the Brackets for the Retainer Bar should
face downward.
F
G
H
L
N
M
x12
