Platinum by Tunturi 12 4 in 1 Strength Station Owner's Manual
Figure 4
Step 4:
All Flat Washers and Nylocks are 3/8” unless otherwise noted.
Note: Make sure the
Bottom Pad is bolted on
before the Seat Frame Assembly
is installed.
Item # Description Qty
34 Bottom Pad 1
19 Seat Frame Assembly 1
20 Back Chrome Adjustment 1
21 8” Adjustment Sleeve 1
22 10” Chrome Adjustment 1
23 Threaded Axle 1
48 3/8” Flat Washer 2
49 3/8” Lock Washer 2
55 1/2”-13 x 1” (Locktite Patched) 1
56 1/2” x 2 11/16” Shoulder Bolt 1
57 HCS 3/8”-16 x 3” 2
58 1/2” Flat Washer 2
50 3/8” Nylock X 7.2t 2
74 1/2” x 2 1/4” Shoulder Bolt 1
www.tunturi.com 13 4 in 1 Strength Station Owner’s Manual

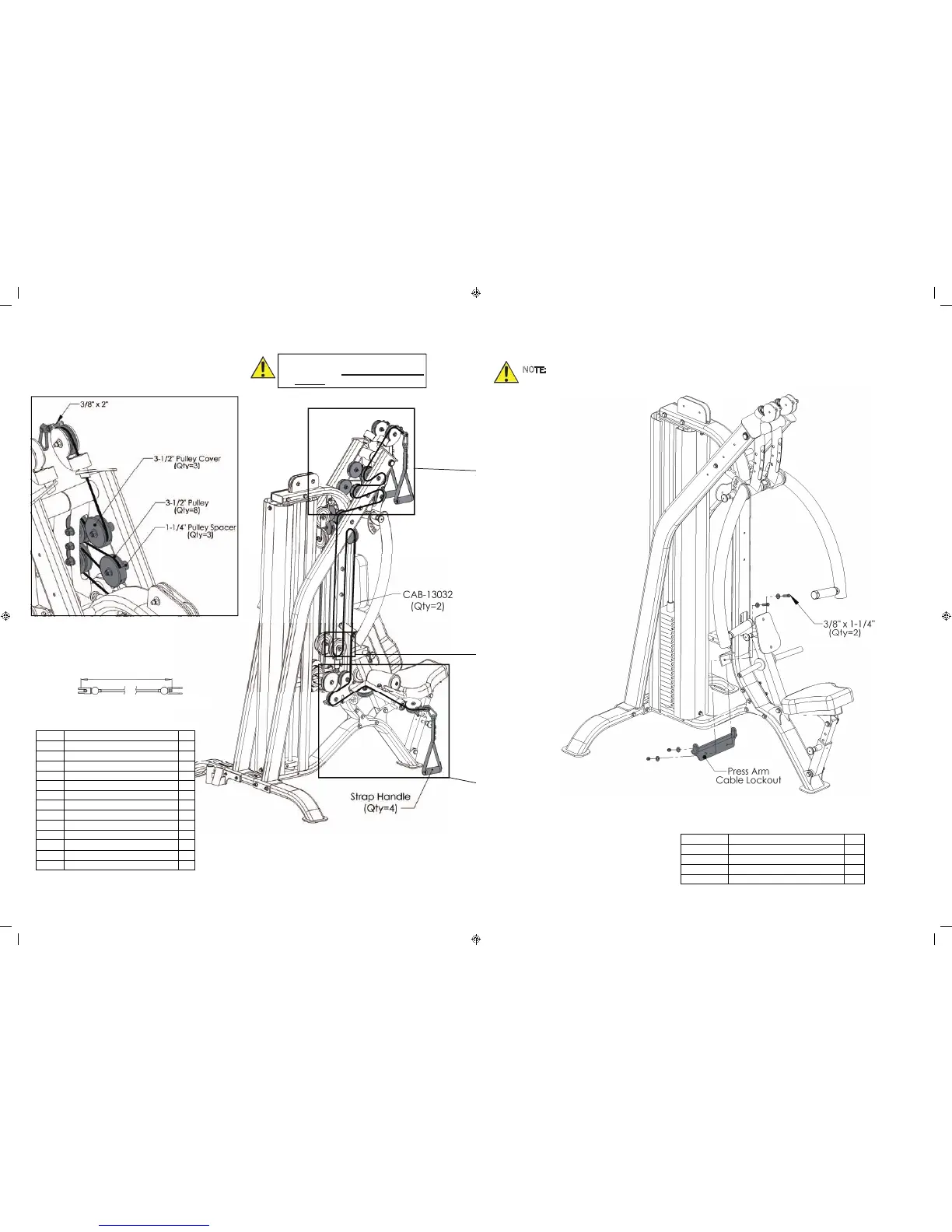

Step 5:
Figure 5
Item # Description Qty
24 Press Arm Cable Lockout 1
48 3/8” Flat Washer 4
50 3/8” Nylock 2
60 HCS 3/8”-16 x 1 1/4” 2
All Flat Washers and Nylocks are 3/8” unless otherwise noted.
NOTE: If Functional Arm Option is purchased
then skip this step
Platinum by Tunturi 20 4 in 1 Strength Station Owner's Manual
All Flat Washers and Nylocks are 3/8” unless otherwise noted.
Step 12:
Figure 12
All Flat Washers and Nylocks are 3/8” unless otherwise noted.
Note: Each Cable with a threaded bolt on
either end must be threaded at
least 1/2” into its attachment.
Item # Description Qty
28
1 1/4” Spacer 3
29
3 1/2" Pulley Cover 4
33
Strap Handle 2
86
Lat Pull to Functional Arm 1
48
3/8" Flat Washer 18
50
3/8" Nylock 16
61
3 1/2" Pulley 11
65
HCS 3/8"-16 X 2 1/4" 5
66
3/8" Curved Washer 2
67
1/2" Curved Pulley Spacer 4
68
HCS 3/8"-16 X 2" 5
69
HCS-3/8”-16 x 2-3/4” 3
70
HCS 3/8"-16 X 4 3/4" 3
200”
CAB-13032
www.tunturi.com 21 4 in 1 Strength Station Owner’s Manual
Step 12 Continued:
A
A
B
B
C
D
D
3/8” x 2”
(Qty=3)
No Washers
3/8” x 2 1/4”
(Qty=4)
All Flat Washers and Nylocks are 3/8” unless otherwise noted.
Step 13: Repeat for alternate side of . Use same Bill of Materials from Step 12
for Step 13. Use CAB-13032, Lat Pull to Functional Arm.
C
3 1/2” Pulley
(Qty=4)
