Platinum by Tunturi 14 4 in 1 Strength Station Owner's Manual
Figure 6
Item # Description Qty
25 Criss-Cross Free Floater 1
38
Weight Stack to Cable Tie Out
1
48 3/8” Flat Washer 6
50 3/8” Nylock 3
61 3 1/2” Pulley 2
62 4 1/2” Pulley 1
63 1 1/4” Shoulder Bolt 1
64 5/16” Nylock 1
65 HCS 3/8”-16 x 2 1/4” 3
All Flat Washers and Nylocks are 3/8” unless otherwise noted.

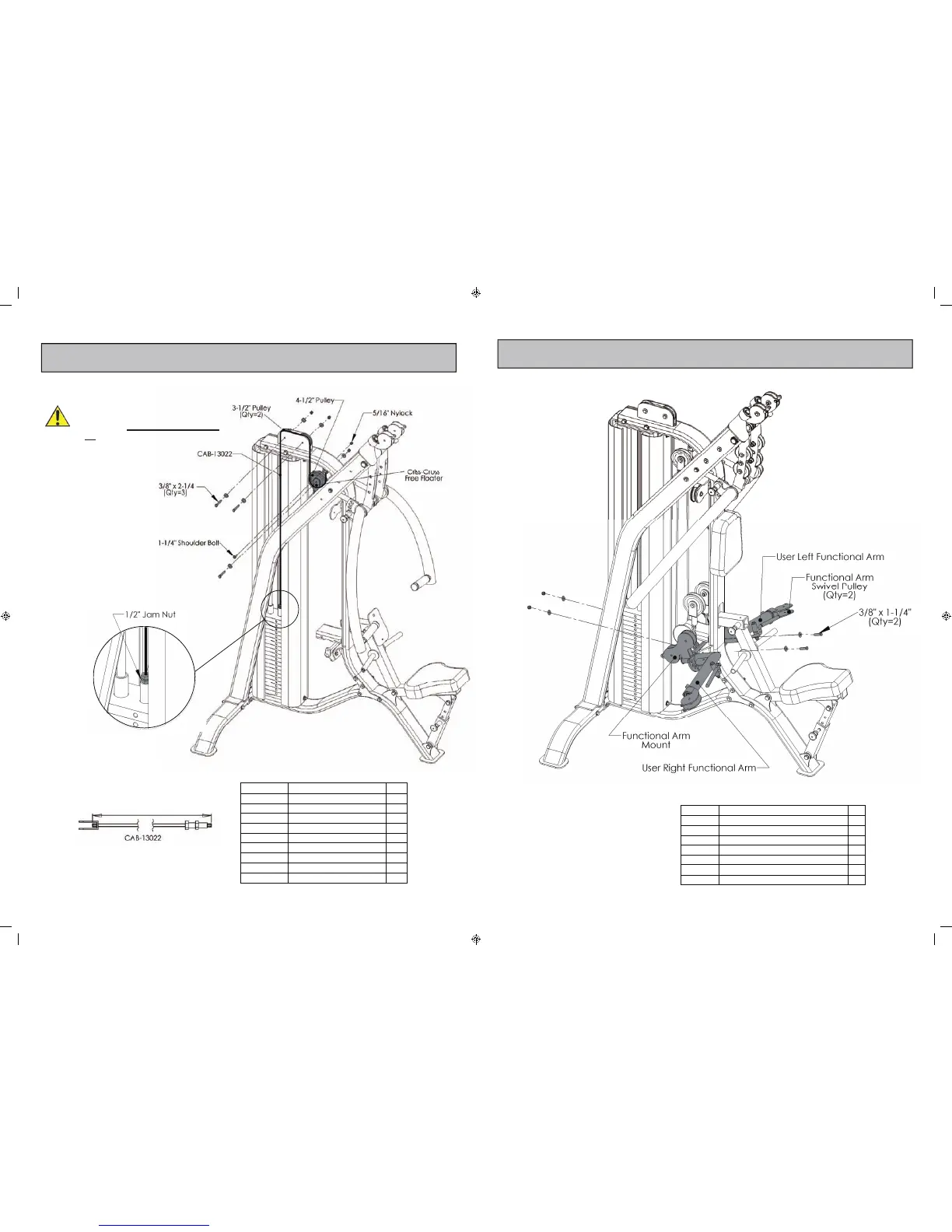

Step 6:
Note: Each Cable with a threaded bolt on
either end must be threaded at least
1/2” into its attachment.
Cable Routing
71 5/8”
www.tunturi.com 15 4 in 1 Strength Station Owner’s Manual
Step 7:
Figure 7
Item # Description Qty
26 Free Floater 2
27 4 1/2” Pulley Cover 2
39
Floating Pulley Cable
1
45 HCS 3/8”-16 x 2 1/4” 3
48 3/8” Flat Washer 8
50 3/8” Nylock 4
62 4 1/2” Pulley 5
73 HCS 3/8”-16 x 7” 1
All Flat Washers and Nylocks are 3/8” unless otherwise noted.
96 9/16”
CAB-13030
Platinum by Tunturi 18 4 in 1 Strength Station Owner's Manual
Figure 10
All Flat Washers and Nylocks are 3/8” unless otherwise noted.
Item # Description Qty
33 Strap Handle 2
35 Head Pad 1
36 Back Pad With Lumbar 1
37 7” Upholstery Roller 2
48 3/8” Flat Washer 4
Step 10:
Item # Description Qty
49 3/8” Lock Washer 4
60 HCS 3/8”-16 x 1 1/4” 2
69 HCS 3/8”-16 x 2 3/4” 2
71 Roller End Cap 2
72 BHSCS 3/8”-16 x 3/4” 2
www.tunturi.com 19 4 in 1 Strength Station Owner’s Manual
Figure 11
Item # Description Qty
74 Functional Arm Mount 1
75 User Right Functional Arm 1
76 User Left Functional Arm 1
77 Functional Arm Swivel Pulley 2
48 3/8” Flat Washer 4
50 3/8” Nylock 2
60 HCS 3/8”-16 x 1 1/4” 2
All Flat Washers and Nylocks are 3/8” unless otherwise noted.
Step 11:
Functional Arm Option
