Tunturi Upper Body Unit - Detailed Cable Routing; Step 8: Cable Routing; Step 9: Alternate Side Cable Routing

Platinum by Tunturi 16 4 in 1 Strength Station Owner's Manual

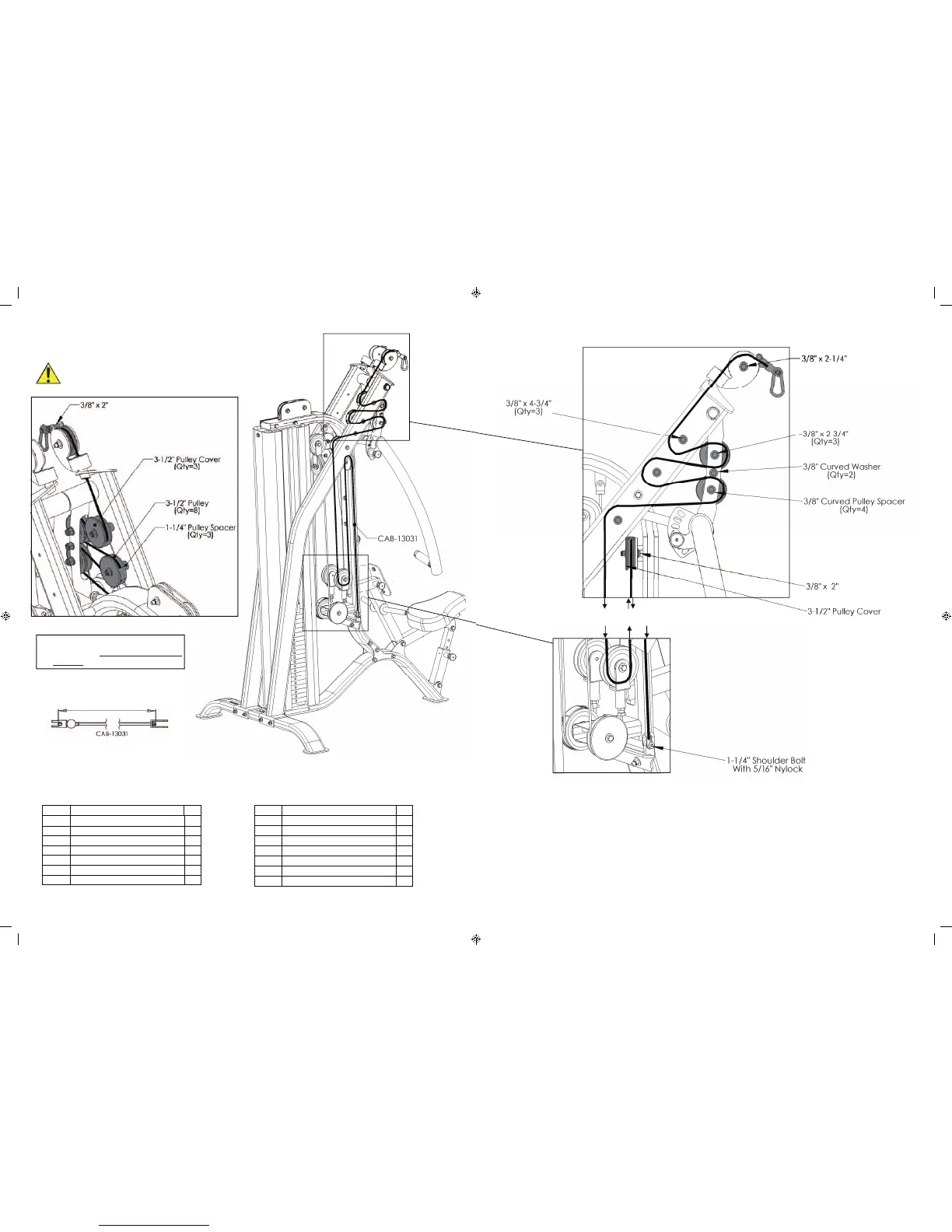

Step 8:
Figure 12
All Flat Washers and Nylocks are 3/8” unless otherwise noted.
Item # Description Qty
40 Lat Pull to Cable Lockout 1
28 1 1/4” Pulley Spacer 3
29 3 1/2” Pulley Cover 4
48 3/8” Flat Washer 10
50 3/8” Nylock 9
61 3 1/2” Pulley 7
63 1 1/4” Shoulder Bolt 1
Note: Each Cable with a threaded bolt on
either end must be threaded at
least 1/2” into its attachment.
Note: If Functional Arm Option is
purchased skip this step
Item # Description Qty
64 5/16” Nylock 1
66 3/8” Curved Washer 2
67 3/8” Curved Pulley Spacer 4
68 HCS 3/8”-16 x 2” 2
69 HCS 3/8”-16 x 2 3/4” 3
65 HCS 3/8”-16 x 2 1/4” 1
70 HCS 3/8”-16 x 4 3/4” 3
163 13/16”
www.tunturi.com 17 4 in 1 Strength Station Owner’s Manual
All Flat Washers and Nylocks are 3/8” unless otherwise noted.
Step 8 Continued:
A
A
B
B
C
C
Step 9: Repeat for alternate side of . Use same Bill of Materials from Step 8 for
Step 9. Use CAB-13031, Lat Pull to Cable Lockout.
Platinum by Tunturi 16 4 in 1 Strength Station Owner's Manual
Step 8:
Figure 12
All Flat Washers and Nylocks are 3/8” unless otherwise noted.
Item # Description Qty
40 Lat Pull to Cable Lockout 1
28 1 1/4” Pulley Spacer 3
29 3 1/2” Pulley Cover 4
48 3/8” Flat Washer 10
50 3/8” Nylock 9
61 3 1/2” Pulley 7
63 1 1/4” Shoulder Bolt 1
Note: Each Cable with a threaded bolt on
either end must be threaded at
least 1/2” into its attachment.
Note: If Functional Arm Option is
purchased skip this step
Item # Description Qty
64 5/16” Nylock 1
66 3/8” Curved Washer 2
67 3/8” Curved Pulley Spacer 4
68 HCS 3/8”-16 x 2” 2
69 HCS 3/8”-16 x 2 3/4” 3
65 HCS 3/8”-16 x 2 1/4” 1
70 HCS 3/8”-16 x 4 3/4” 3
163 13/16”
www.tunturi.com 17 4 in 1 Strength Station Owner’s Manual
All Flat Washers and Nylocks are 3/8” unless otherwise noted.
Step 8 Continued:
A
A
B
B
C
C
Step 9: Repeat for alternate side of . Use same Bill of Materials from Step 8 for
Step 9. Use CAB-13031, Lat Pull to Cable Lockout.
