Platinum by Tunturi 4 4 in 1 Strength Station Owner's Manual
Functional Arm Components
Tools Required
• 1/2” Wrench
• 9/16” Wrench
• 9/16” Ratchet
• 3/4” Wrench
• 3/4” Ratchet
• Allen Wrench Set
• Tape Measure
• Snap Ring Pliers
Functional Arm Hardware
ITEM NO. DESCRIPTION Qty
74 Functional Arm Mount 1
75 User Right Functional Arm 1
76 User Left Functional Arm 1
77 Functional Arm Swivel Pulley 2
ITEM NO. DESCRIPTION Qty
79 3/8” Flat Washer 16
80 3/8” Nylock 14
81 3-1/2” Pulley 8
82 HCS 3/8”-16 x 2-1/4” 8
83 HCS 3/8”-16 x 2” 6
Functional Arm Accessories
ITEM NO. DESCRIPTION Qty
84 Strap Handle 2
Cables
ITEM NO. DESCRIPTION Qty
85 Lat Pull to Functional Arm 2
www.tunturi.com 5 4 in 1 Strength Station Owner’s Manual
Bolt Length
Note: Bolt length is measured from
the underside of the head of the bolt.
2 1/4” Shoulder Bolt
2 11/16” Shoulder Bolt
Platinum by Tunturi 28 4 in 1 Strength Station Owner's Manual

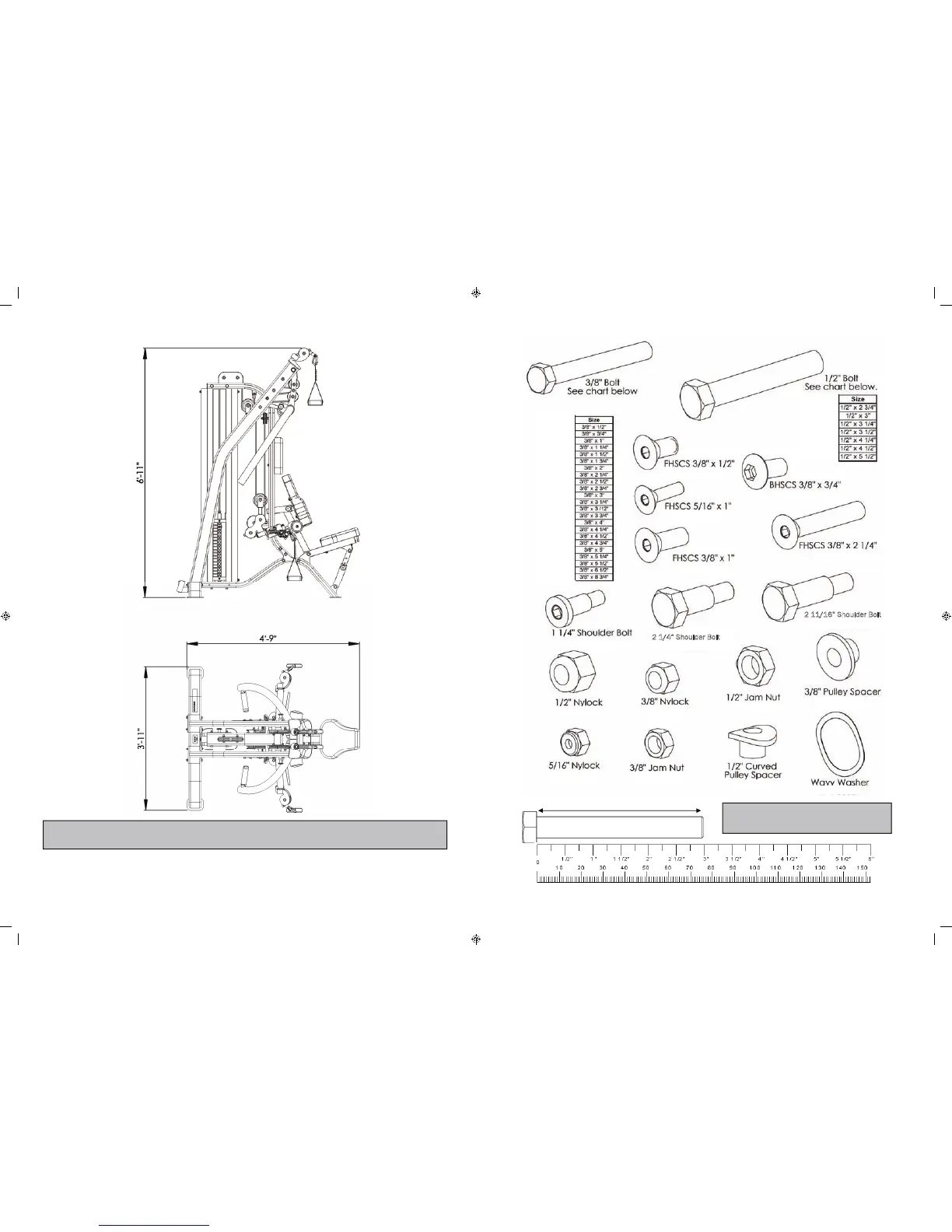

The with Leg Press has a layout dimension of 3’-11” (width) x 4’-9” (length) x 6’-11” (height). There should
be a minimum of 18”, preferably 24”, of working space around the entire unit.
Layout Diagram
www.tunturi.com 29 4 in 1 Strength Station Owner’s Manual
