Platinum by Tunturi 8 4 in 1 Strength Station Owner's Manual
www.tunturi.com 9 4 in 1 Strength Station Owner’s Manual
Step 1:
• All Flat Washers and Nylocks are 3/8”
PLEASE FOLLOW ALL DIRECTIONS VERY CAREFULLY FOR PROPER
INSTALLATION.
Note: For a more consistent appearance, position
all bolts in the direction shown in each
figure.
Figure 1
Do Not Tighten Hardware
U
ntil Next Step
Item # Description Qty
44 3/8” Jam Nut 2
45 HCS 3/8”-16 x 2 1/2” 1
46 HCS 3/8”-16 x 5” 1
47 HCS 3/8”-16 x 5 1/4” 6
48 3/8” Flat Washer 15
49 3/8” Lock Washer 1
50 3/8” Nylock 7
Item # Description Qty
1 Right Vertical Support 1
2 Rear Base 1
3 Middle Frame Assembly 1
4 Front Base Support 1
5 Top Swivel Pulley Holder 1
30 Middle Frame Connector Plate 2
41 Beveled Leveler 2
42 Wavy Washer 1
43 1” Snap Ring 2
Platinum by Tunturi 24 4 in 1 Strength Station Owner's Manual
Note: All levelers should have at least 1/2” of the threads
threaded in to its counterpart. It is very important that
the 3/8” Jam Nut be wrench tightened to the counterpart
to ensure that the leveler does not back out of the
counterpart.
3
Refer to Figure
8 and 11
5
Refer to Figure
7
www.tunturi.com 25 4 in 1 Strength Station Owner’s Manual
ITEM NO. DESCRIPTION QTY
38
Weight Stack to Cable Tie Out 1
39
Floating Pulley Cable 1
40
Lat Pull to Cable Lockout 2
86 Lat Pull to Functional Arm 2

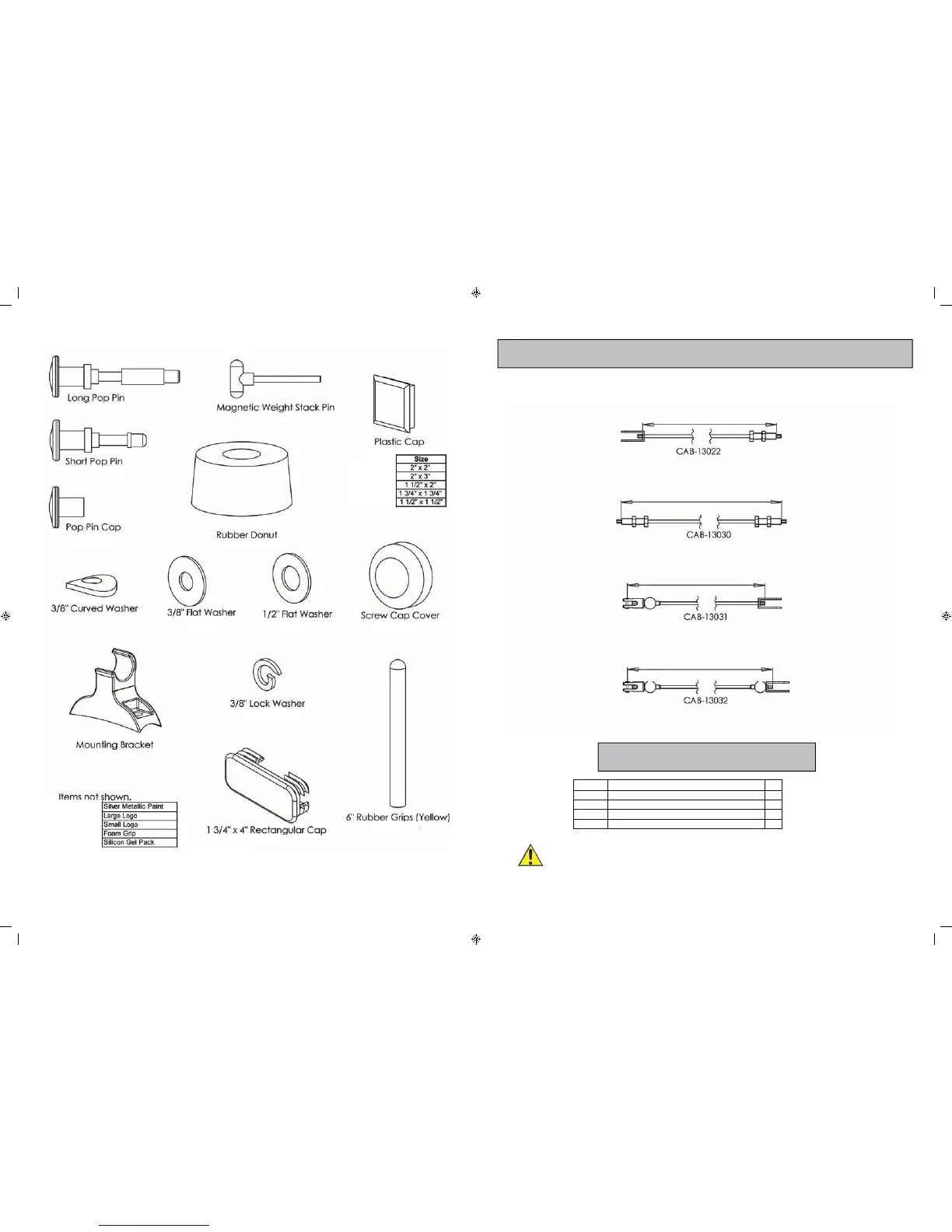

Cables
Cable Comparison Chart
163 13/16”
72 5/8”
95 11/16”
200”
Note: Cables CAB-13022, CAB-13031, and CAB-13032 have removable Cable Strap (BFH– 50227)
ends to make cable routing easier. The Cable Strap ends can be found packaged with the hardware
.
*
*
*
PG6241說明書101025 拚版用-16.indd 15-16 2010/11/3 20:16:43
