U s e A n d M a i n t e n a n c e I n s t r u c t i o n s
E conomizer E8T 16 Output Channel s
I n Mn E E8 T
e n R ev . 0 0
T UR B O S rl
D u s t F i l t e r C o m p o n en t s
V i a P o 3 3 / 3 5 2 0 8 11 C e s an o M a d e r n o ( M B ) I t a l y T e l + + 3 9 0 3 6 2 5 7 4 02 4 F a x + + 3 9 0 3 6 2 5 7 4 0 9 2
9

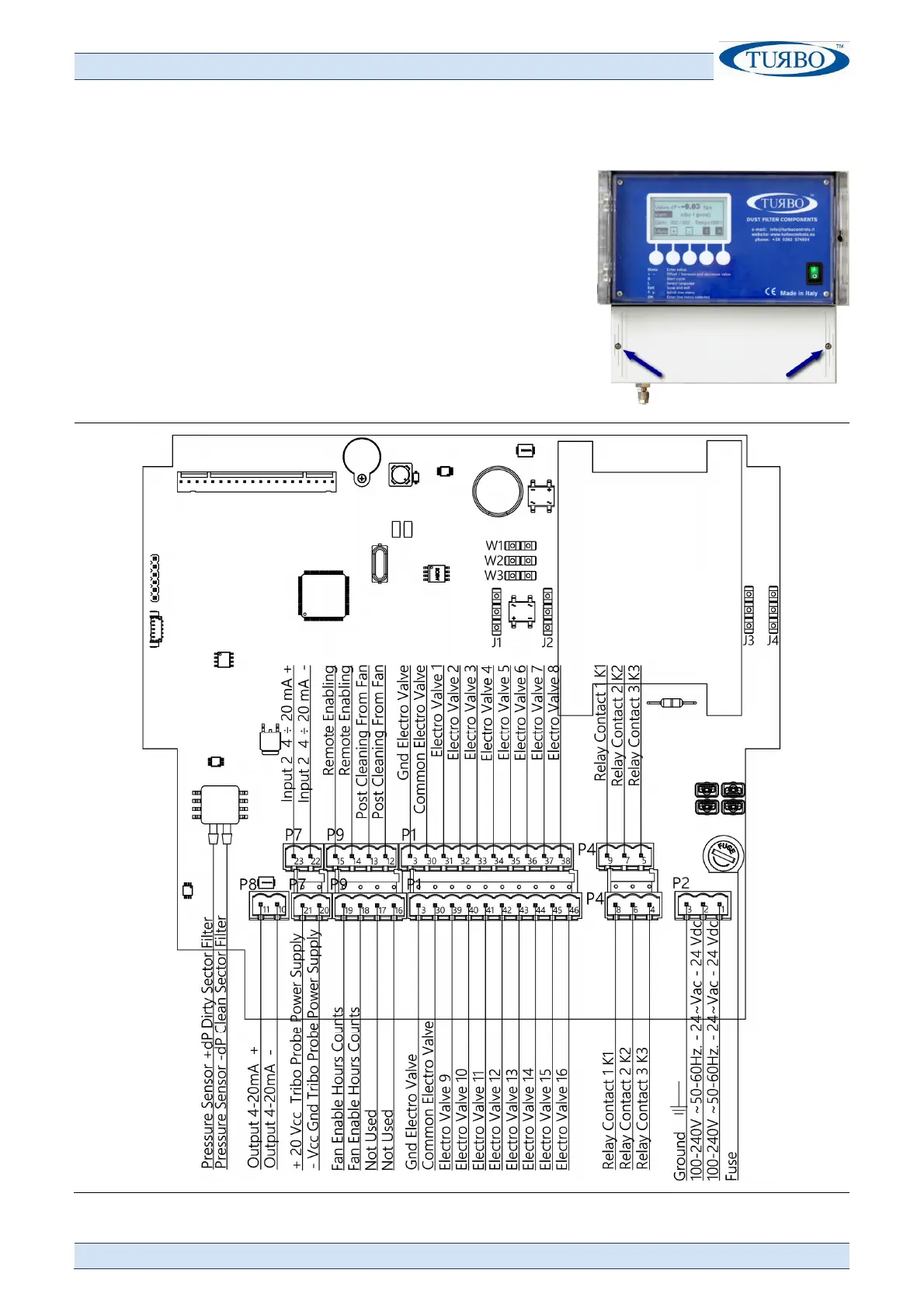

Electrical Connections
To connect the wires to the E8T control unit, remove
the cover panel to access the terminal board,
unscrewing the two screws.
