HOW TO INSTALL YOUR BOOST CONTROLLER cont.
2) EXTERNAL WASTEGATE SETUP
• Allow the engine to cool down before installing your boost controller

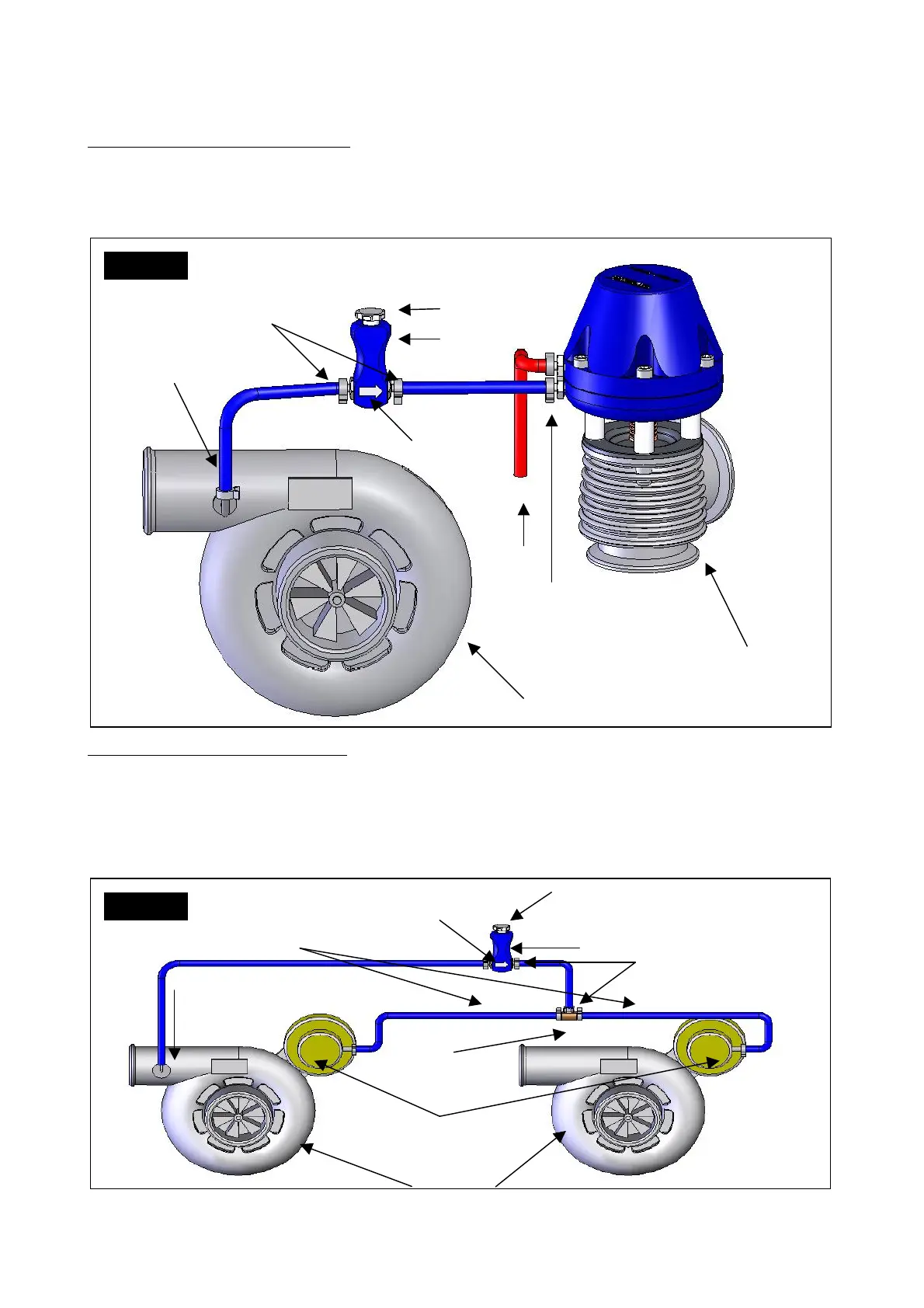

• Locate the bottom port on the external wastegate and the pressure source port (refer Drawing 2)
• Install the Boost Tee in the wastegate pressure line with the wastegate arrow pointing towards the bottom port on the wastegate
• Secure all silicone hose ends with hose clamps
• Mount your boost controller bracket onto the vehicle, then attach the boost controller onto the bracket with the supplied screws
• Make sure the boost dial is turned completely anti-clockwise before making adjustments.
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
3) PARALLEL TWIN TURBO SETUP
• Allow the engine to cool down before installing your boost controller
• Locate the wastegate actuator ports on both turbochargers and a pressure source port (refer Drawing 3)
• Remove the factory boost control solenoid if fitted from the boost pressure supply line
• Install your boost controller in the wastegate pressure line with the wastegate arrow pointing towards the wastegate actuators. • Be
sure to keep the hoses joining the wastegate actuators at equal lengths
• Secure all silicone hose ends with hose clamps
• Mount your boost controller bracket onto the vehicle, then attach the boost controller onto the bracket with the supplied screws
• Make sure the boost dial is turned completely anti-clockwise before making adjustments.
*Note for sequential turbo systems: Sequential turbo setups can be complex and vary from car to car. Please contact your local Turbosmart dealer for more details
