FLEX ARRAY user manual
Page 37
BLP-600 Ball-lock Pins
These are provided in three sizes depending on application.
The BLP-8/15 is used to lock cabinets together at the side pivot points and, in
conjunction with the rear links, to set the vertical angles between cabinets
The BLP-10/35 is used to locate the rear drop links in the cabinet‟s clevis connection
plate

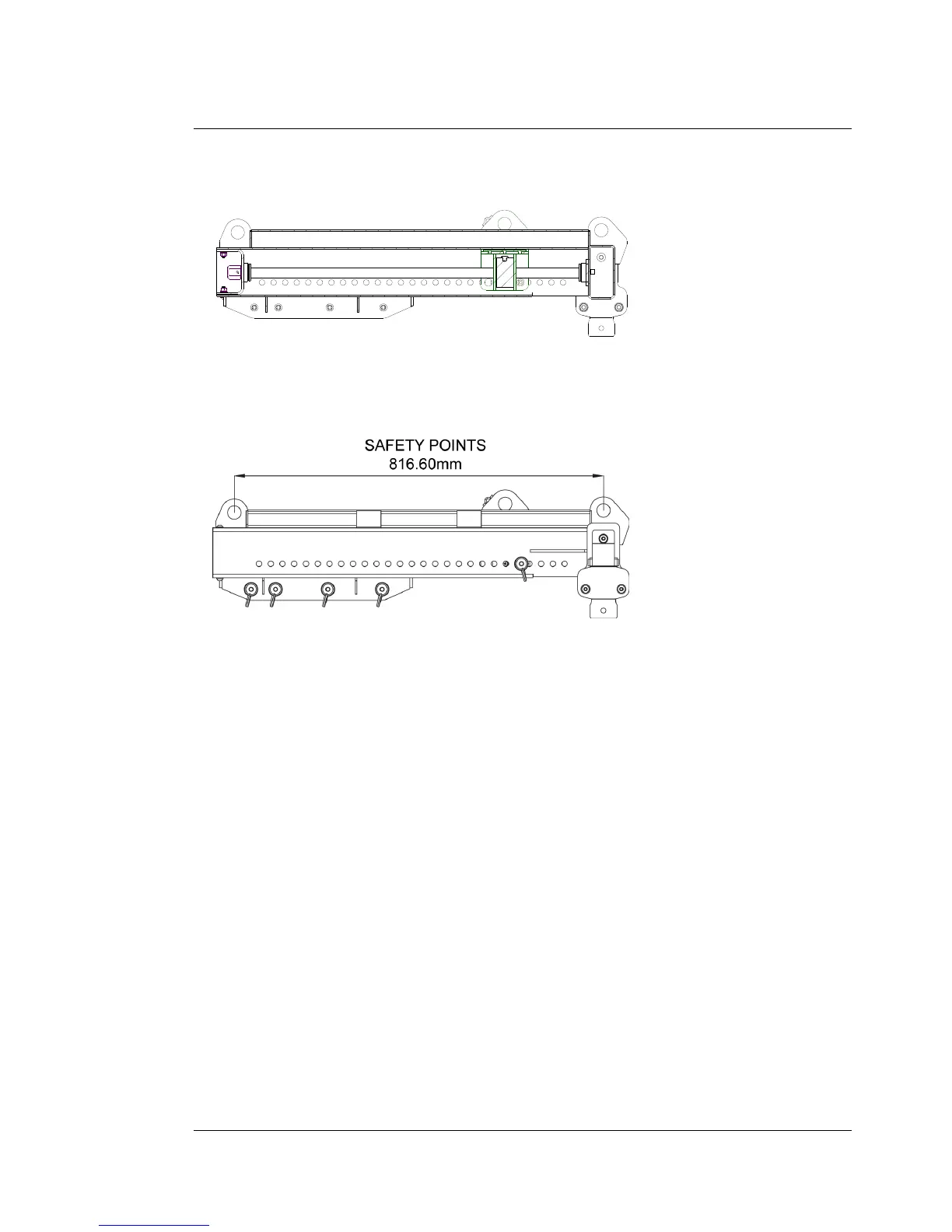

The BLP-10/100 locks the position of the lift point on the FB-600 flybar
Ball-lock pins are held captive by a lanyard either on the flybar or cabinet, and are normally
parked in a recess in the cabinet side, or on the flybar, when not in use to avoid the
possibility of losing them. They can only be used to engage with the box above, or with an
inter-cabinet coupler.
Rear Drop Link
These are supplied with each mid/high cabinet, and are used to set the inter-cabinet angle by
engaging in the clevis connection plate of the cabinet below. When not in use the rear drop
