user manual
QLight series

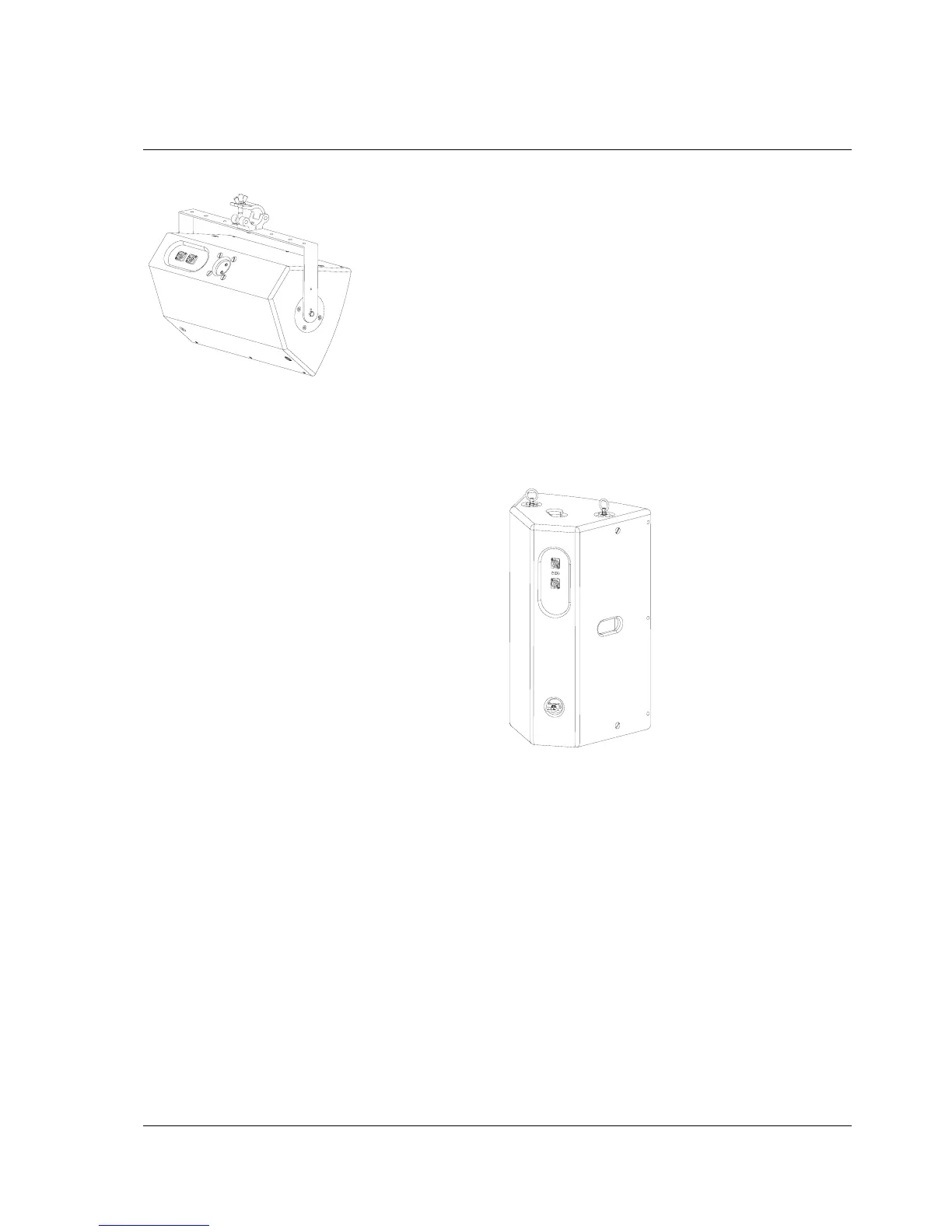

For applications requiring the TQ-310 to be installed
rapidly in a horizontal format, an additional scaffold
clamp assembly attaches to the SB-310 swivel
bracket. This method allows a virtually unlimited
range of placement angles.
The TQ-315 is fitted with rigging points on
the top, bottom and rear for use with
optional RT-767 ring-type flying points.
The rear RT-767 rigging point provides a
means of adjusting the downward angle of
the cabinet.
M10 rigging points are provided on each
side to allow the enclosure to be flown
horizontally using the rear RT-767 point as
a pull-back.
M8 rigging points are provided on the rear
of the cabinet for use with OmniMount
300 series and Powerdrive 120 series
wall and ceiling brackets.
Permanent Installations
Any installation, whether temporary or permanent, must be securely attached to the structure of
the building using chain, steel wires or web straps which are certified and load rated for the
purpose. The combined weight of the sound system, its cables and the rigging system must be
safely carried by the points at which attachment is made to the building or structure. Great care
must be taken in selecting the attachment points and methods, being absolutely sure of the load
carrying capacity of points chosen.
TQ-300 series manual
page 11
