TURFCO 85877 - Lubrication

36
85876 & 85877 RevA
TURFCO T3100 APPLICATOR
SERVICE AND MAINTENANCE

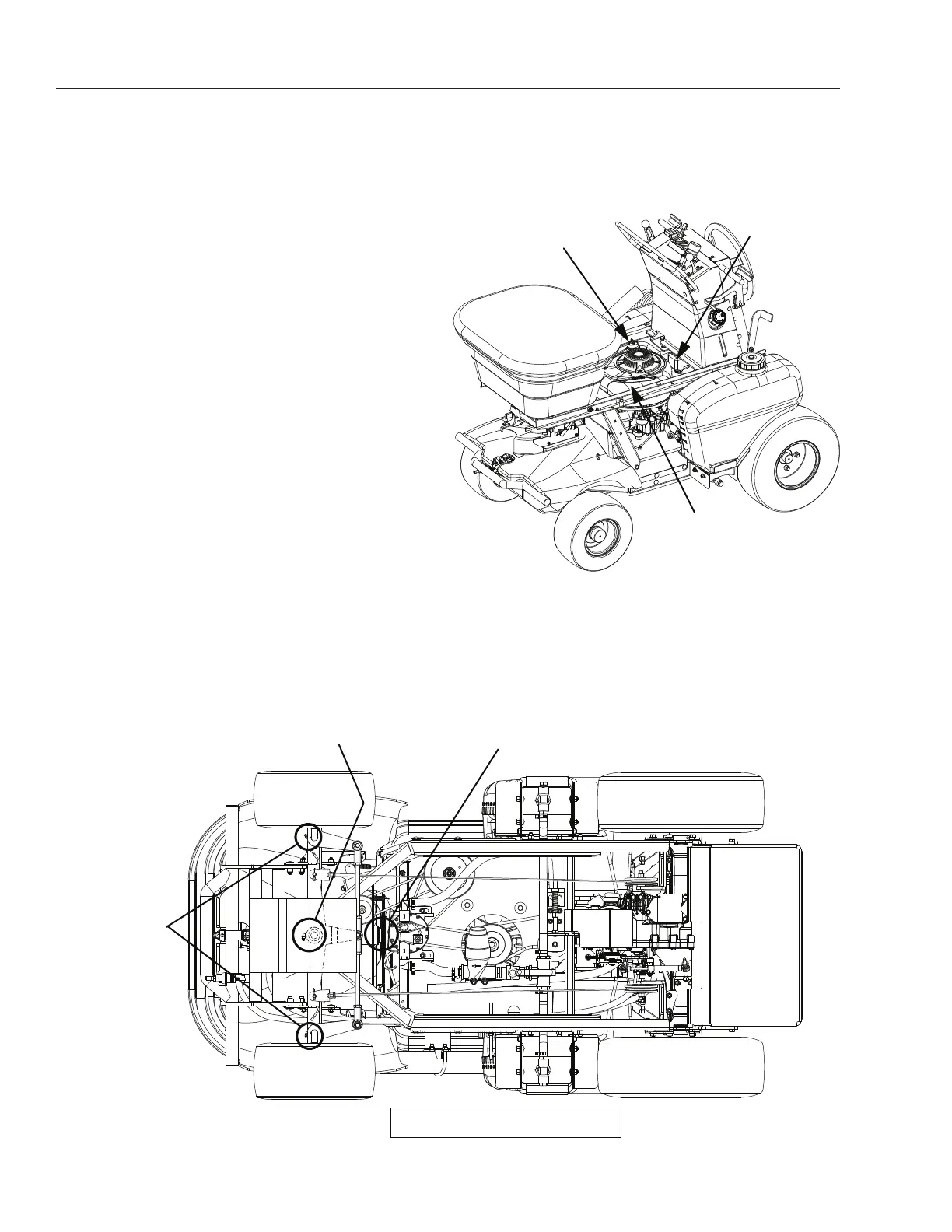

ENGINE AND TRANSAXLE (See Figure 26)
Engine: CHECK OIL LEVELS DAILY. Follow the
engine manufacturer’s manual for intervals of oil
change,oillterreplacement,properoiltypes,and
lllevelsfortheengine.Inspectandclean/replace
theengineairlterasneeded.
Engine Carburetor Linkages and Springs:
CLEAN AND LUBRICATE WEEKLY. Clean and
remove fertilizer dust from the linkages, governor
springs, choke linkage on the carburetor with carb
cleaner. Lightly lubricate to protect from rust. Wipe
away excess lubrication that will attract and collect
dust, dirt and debris.
Transaxle:Checkthelevelofuidinthetransaxle
reservoir. Fill only to the “Full Cold” level mark on
the reservoir (located very low on reservoir). Use
20W/50engineoilforthetransaxle.Donotoverll.
Transaxlecapacityis95.5uidounces(2.8Liter/3
quarts).Add extra to allow for lter, the reservoir
and the reservoir hose (approximately one quart).
GREASE FITTINGS (See Figure 27)
Grease Fittings: (qty 4) Grease after every 8 hours
of operation. Wipe away excess lubrication that will
attract and collect dust, dirt and debris.
Lubrication
GREASE FITTING LOCATIONS
(TOTAL OF 4)
AS VIEWED FROM BOTTOM
REAR OF MACHINE
FRONT AXLE
CENTER SWIVEL (QTY 1)
FRONT
STEERING
ARMS
(QTY 2)
FIGURE 27
SV85876-03
STEERING ARM (QTY 1)
(LOCATED ABOVE SKID PLATE)
ENGINE
OIL DIPSTICK
AND FILLER
ENGINE
AIR CLEANER
TRANSAXLE
RESERVOIR
TANK
REMOVE STORAGE TRAY
TO CHECK ENGINE
FIGURE 26
SV85876-02RevA
