Before filling, check the hopper for moisture or wet spots
that could cause the seed to stick together. Hopper and
seed gate should be clean and dry.
Close the seed gate and completely fill the hopper. Seed
must be clean and dry for proper flow thru the seed gate.
Always keep the lid closed during operation to avoid
contamination of the seed.

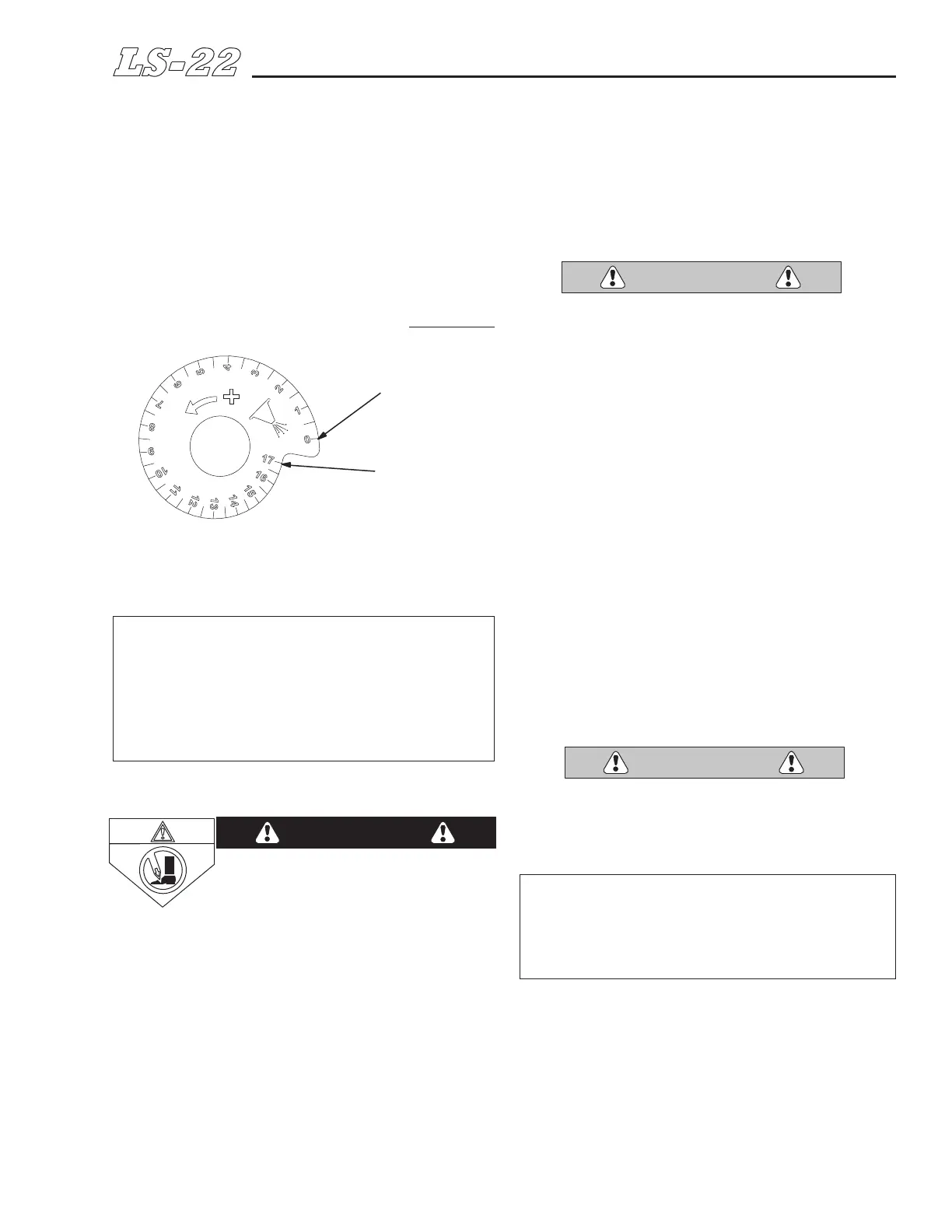

SETTING SEED GATE DIAL (See Figure 4)
The seed gate dial is marked “0” thru “17”. At “0” the
gate is fully closed, at “17” the gate is fully open. See the
chart on the inside of the hopper lid for an approximate
setting to control the rate of seed application. Because of
the differences in seed size and shape, seed application
rate can vary from the chart. Turn the dial and lock into
position at the desired setting.
Note: Seed will begin to flow from the hopper as
soon as the seed gate is opened, especially when
a larger gate setting is used. Because of this, the
seeder should be moving forward with the blade
assembly operating before opening the seed gate.
Never stop without closing the gate as seed will
continue to flow out on the turf.
ENGINE STARTING INSTRUCTIONS
TO AVOID SERIOUS INJURY,
Keep Hands and Feet Away
From the Blades.
Keep hands and feet away from the blade assembly.
Ensure that the engine oil levels are correct and that the
gas tank has been filled 3/4 full with the proper grade of
fuel.
Step 1. Move the LS–22 Lawn Seeder to the turf area.
Step 2. Check that the fuel shut-off valve is in the “ON”
position. Check that engine On/Off switch is in the “ON”
position.
Step 3. Ensure that the wheel lift handle is pushed
forward in the “Blades Up” position. Blades must not be
touching the turf.
Step 4. Set the throttle and Choke controls. Pull starter
rope to start engine. Allow engine to warm up at idle
speed. Reset throttle to desired speed.
LS–22 LAWN SEEDER OPERATION
TO AVOID SERIOUS INJURY,
Move To the Operator’s Position Behind The
Handlebar Before Engaging Any Operator Control
Handle.
Always Slowly Engage The Clutch Handle.
Follow all safety precautions and wear the
appropriate safety gear.
Be Aware Of Others In The Worksite. Keep
Observers, Especially Children, Away From The
LS–22 During Operation. The LS–22 Blades Can
Throw Objects.
Maximum Angle Of Operation: Do not operate the
LS–22 Lawn Seeder on steep slopes. Maximum angle
of operation is 15° degrees. Serious injury can occur
if the operator slips and gets feet or hands caught in
the revolving blade assembly. When operated on steep
slopes or when operated in an unsafe manner, the LS–
22 can tip, roll over, or roll back on to the operator. When
seeding on a slope of 15° degrees or less, never operate
straight up or down the slope. Approach a slope moving
back and forth across the slope.
TO AVOID SERIOUS INJURY, Do Not Operate
Aerator On Slopes Over 15° Degrees. LS–22
Can Tip, Roll Over, Or Roll Back Onto Operator If
Operated On Steep Slopes.
Note: Some models of Honda engines are equipped
with an “Oil Alert System” that detects insufficient
oil levels in the engine crankcase. If the Dethatcher
22 is operated on a slope, the “Oil Alert System”
may cause the engine to shut down.
Ground Operating Speed: Seed application rates are
based on a walking/operating speed of 4.0 Km/h (2.5
mph). Always move at the same pace to ensure even
distribution of the seed, especially when a larger seed
gate opening is being used. Operating at a constant
even speed will obtain the best results.
FULLY
CLOSED
AT “0"
FULLY
OPEN
AT “17"
FIGURE 4
OP85363-02
OPERATION
