3

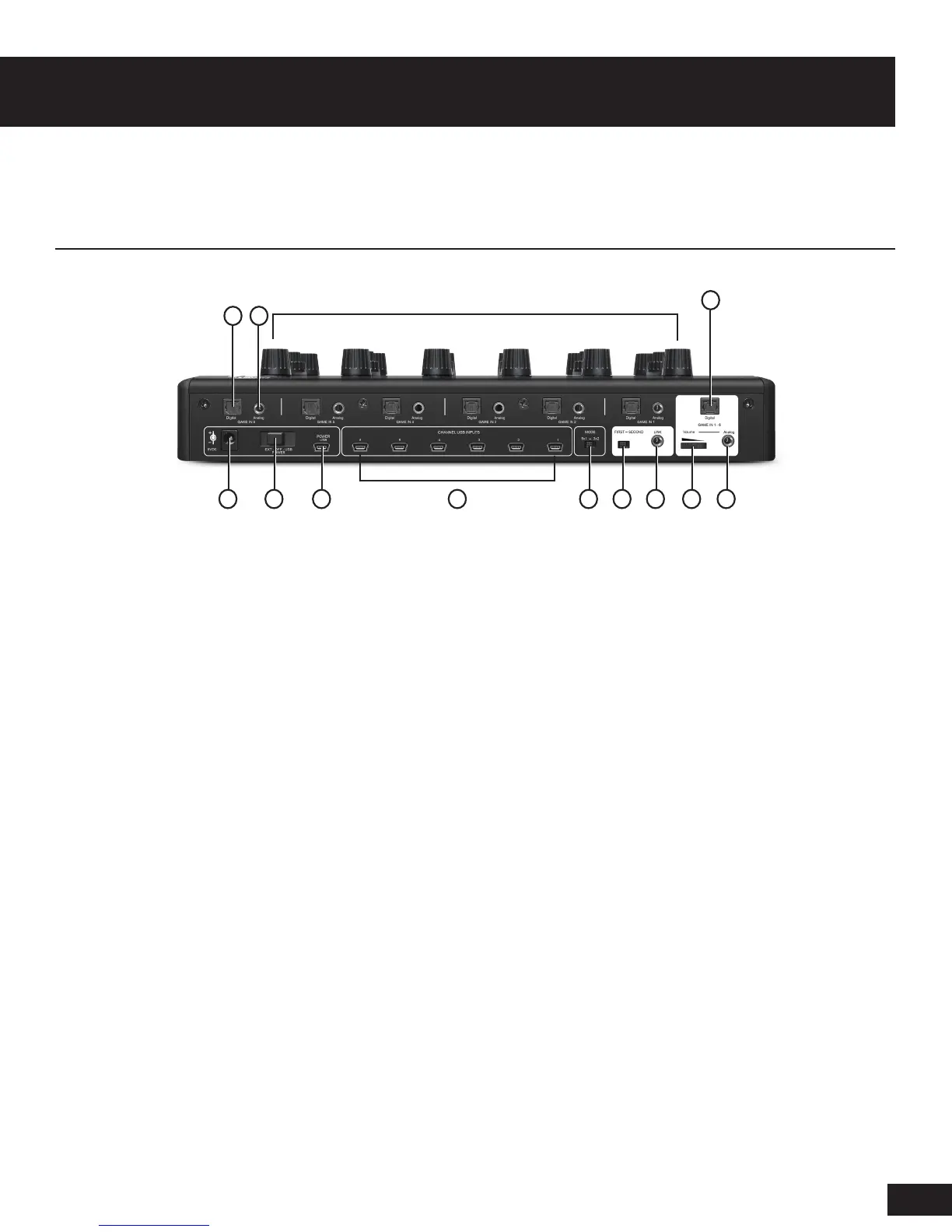

Rear View
Channels 1-6
1. Channel Digital Optical TOSLINK Game Audio Inputs
2. Channel Analog Stereo 3.5mm Game Audio Inputs
3. AC Power Input
4. Power Switch
5. USB Power (Mixer Only)
6. USB Pass-through Connection (Mini)
7. Mode Switch (6x1 / 3x2)
8. First / Second TM1 Toggle Switch
9. TM1 Link (To Daisy Chained Second TM1) / Broadcast Output
10. Aux-input Level
11. Analog Stereo 3.5mm Aux-input
12. Digital Optical TOSLINK Game Audio Broadcast Input
Function Map
1 2
12
3 4 5 7 8 9
10
6
11
