6
Digital Setup
• Optical Input: For use with digital devices and XPSEVEN / SIERRA Control Units. Digital connections cascade from
channels 1, 3, and 5 to channel 2, 4, and 6 respectively unless there is already a digital signal on those channels. If you
are using a digital connection, you need a XPSEVEN / SIERRA Control Unit to hear game audio. If you use a headset that
has separate mic. and audio plugs, you will need an adapter to convert your headset to a single 4 pole plug to connect it
to the Audio Control Unit.
• Digital Optical TOSLINK Game Audio Broadcast Input: Broadcasts to all channels that do not currently receive a digital
signal.

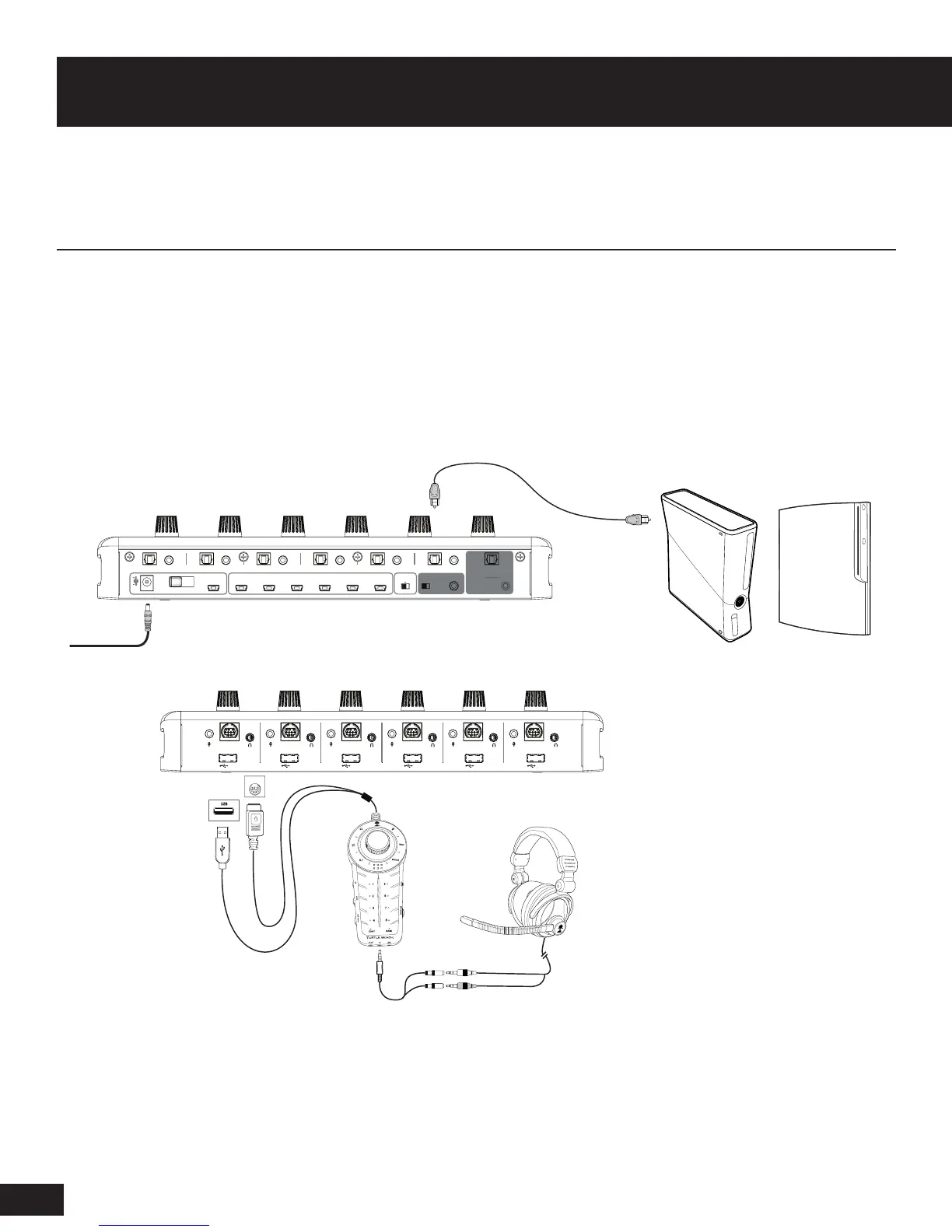

Setting Up Your TM1
1
Thru
2
Thru
3
Thru
4
Thru
5
Thru
6
Thru
*Wires not included. Set up may vary
depending on environment.
9-PIN DIN
T
16
1
2
3
4
5
6
T
654
T u
3261
1
2
3
5
Optical Cable
Console
PC headset to 4 pole adapter
To Next Page
