５
TP9KACX / TP9KSCX
Jan 2017
INSTALLATION INSTRUCTIONS
STEP 1: (Selecting Site) Before installing your new lift, check the following:
1. LIFT LOCATION: Always use architects plans when available. Check layout dimension against floor
plan requirements making sure that adequate space is available (Fig. 2, 2a, 2b & Fig. 3).

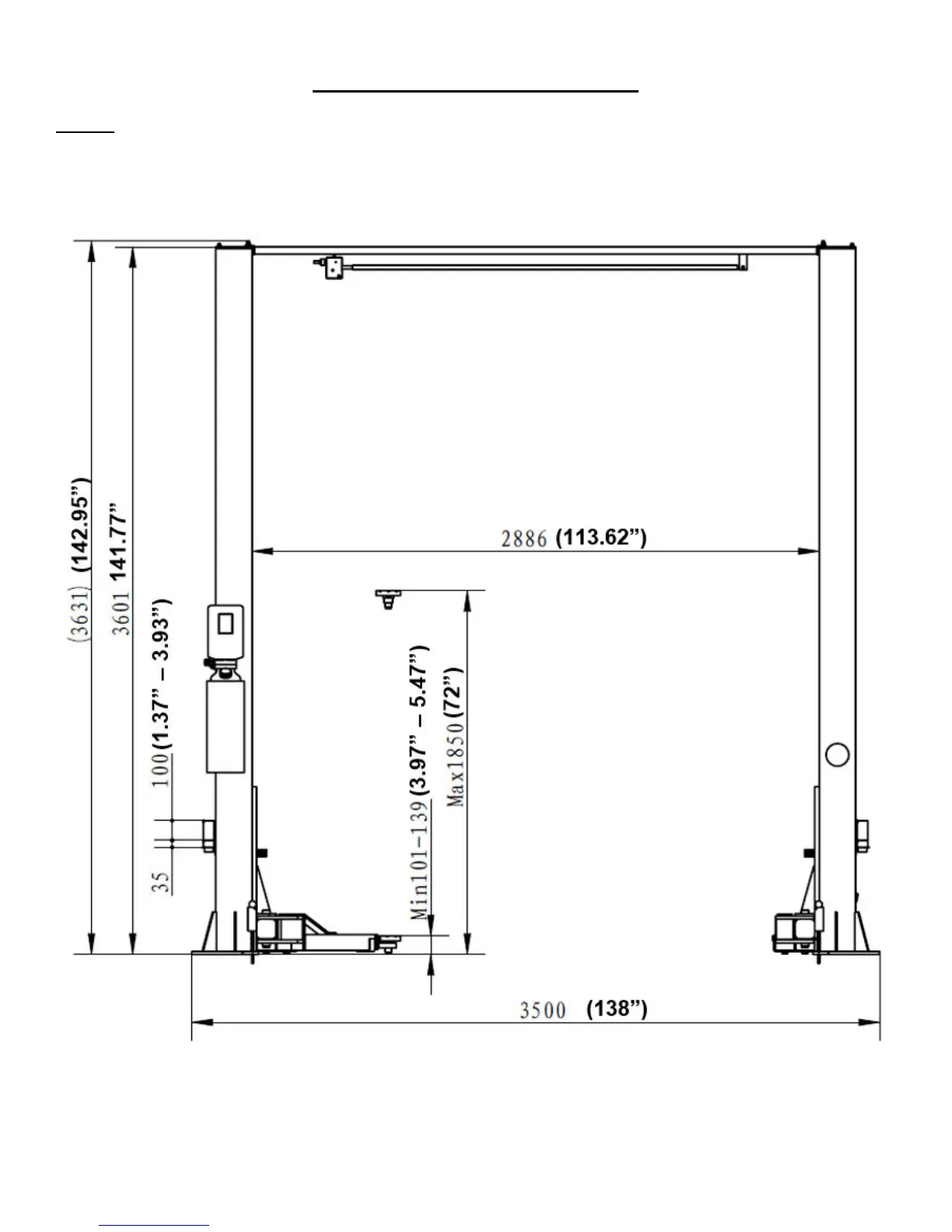

Fig. 2
(TP9KACX & TP9KSCX)
