3. Control panel and other functions.

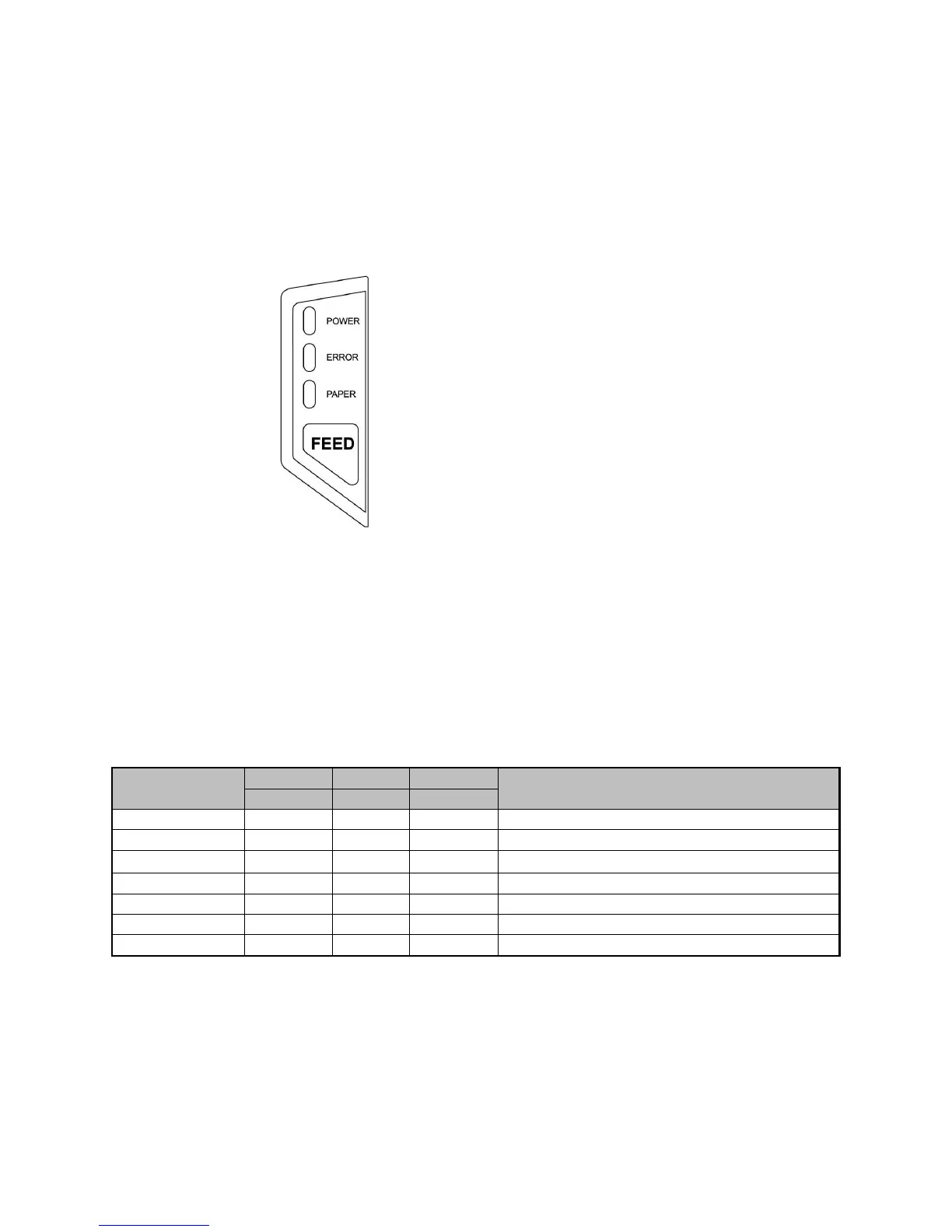

3-1. Control panel
You can control the basic paper feeding operations of the printer with the button on the control panel. The
indicator lights help you to monitor the printer’s status.
Control Panel
Button
The button can be disabled by the ESC c 5 command.
Press the FEED button once to advance paper one line. You can also hold down the FEED button to feed
paper continuously.
3-2. Error indicators
This section explains the different patterns signaled by the two LED indicators located on the top cover of
the printer.
STATUS
PAPER
ERROR
POWER
REMARKS
RED
RED
GREEN
Power off
OFF
OFF
OFF
Normal power is not supplied to the printer
Power on
OFF
OFF
ON
Normal power is supplied to the printer
On line
OFF
OFF
ON
Normal error-free mode
Cover open
OFF
ON
ON
Close cover
Paper empty
OFF
ON
ON
Insert new paper roll
Paper near end
ON
OFF
ON
Paper is low
Test mode
OFF
OFF
ON
Ignored error led
