FUSE REPLACEMENT
The electrical components of your motorcycle are
protected by four fuses. Out of which three fuses are
housed inside a fuse box and located below the seat
assembly (at left side). One fuse is located below the
cover frame near the battery.

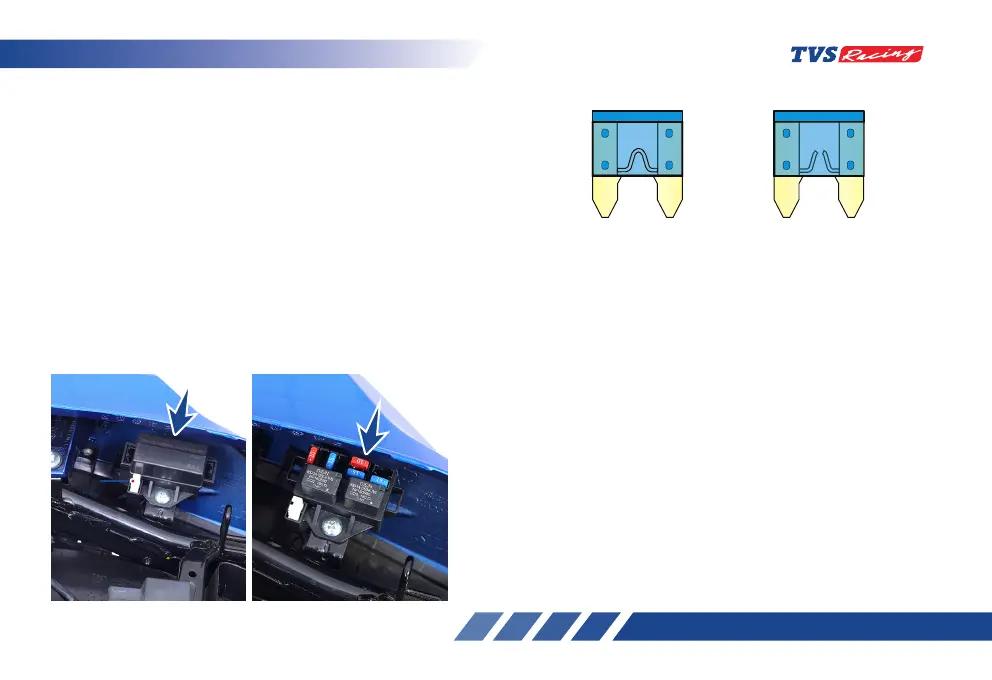

To access the fuses located below the passenger
seat:
1. Turn ‘OFF’ the ignition.
2. Park the motorcycle on a flat firm surface and
remove the seat assembly as explained in page
no. 50.
3. Open the fuse box lid.
4. The fuse box contains two 15A fuses and one
10A fuse. One 15A fuse is used for ABS system
while the other one is used for DC loads. 10A
fuse is used for EMS system. Use the fuse puller
(A) placed near the fuse box to pull out the blown
fuse.
5. Replace the blown fuse with a new one with
same rating (extra fuses are provided inside the
fuse case itself).
6. Close the fuse box lid and fix back the seat
assembly.
To access the fuse located below cover frame:
1. Remove the cover frame R as explained in page
no. 52.
2. Open the fuse holder and pull out the blown fuse
(Main fuse - 25A).
A
To Next Page
