TVS Jupiter ZX User Manual

25
25

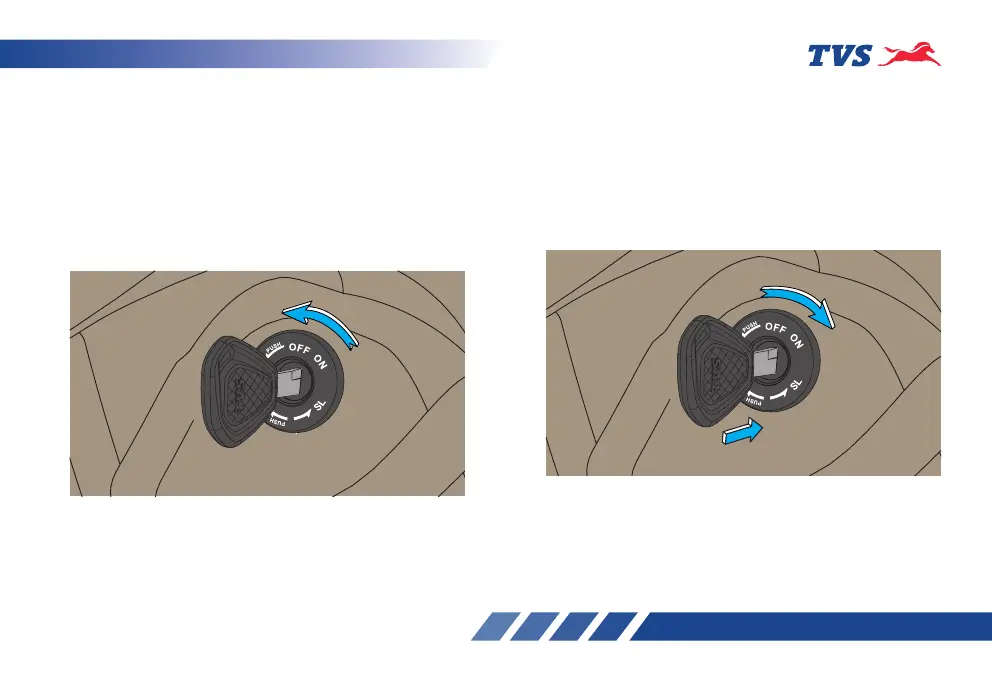

4. ‘Seat unlock’ position
Seat lock is inbuilt in ‘all in one lock’ of TVS Jupiter
ZX. To open the seat, keep the key in ‘OFF’ position
and turn it to anticlockwise direction without pushing
the key ‘IN’.
To lock the seat again, press the seat at the rear end
to its position. Ensure the locking of seat by hearing
‘Click’ sound.
5. ’Fuel tank cap unlock’ position
Fuel tank cap lock is inbuilt in ‘all in one lock’ of TVS
Jupiter ZX. To open the fuel tank cap, keep the key
in ‘OFF’ position, push the key ‘IN’ and turn it to
clockwise direction. The tank cap opens automatically.
To close the fuel tank cap, press the cap at the front
end to its position until a ‘Click’ sound is heard.
F
U
E
L
T
A
N
K
C
A
P
L
O
C
K
PUSH
S
E
A
T
L
O
C
K

TVS Jupiter ZX Specifications

General

Engine Capacity	109.7 cc
Front Brake	Drum
Rear Brake	Drum
Kerb Weight	109 kg
Front Suspension	Telescopic
Tyre Type	Tubeless
Engine Type	Single Cylinder, 4 Stroke, Air Cooled
Transmission	CVT
Tyre Size (Front)	90/90-12
Tyre Size (Rear)	90/90-12
Length	1834 mm
Height	1115 mm
Seat Height	765 mm
Ground Clearance	150 mm
Wheelbase	1275 mm
Maximum Torque	8.4 Nm @ 5000 rpm
Brakes	Drum
Rear Suspension	Hydraulic
Starting Method	Electric Start
Max Torque	8.4 Nm @ 5000 rpm
Wheel Size	12 inches
