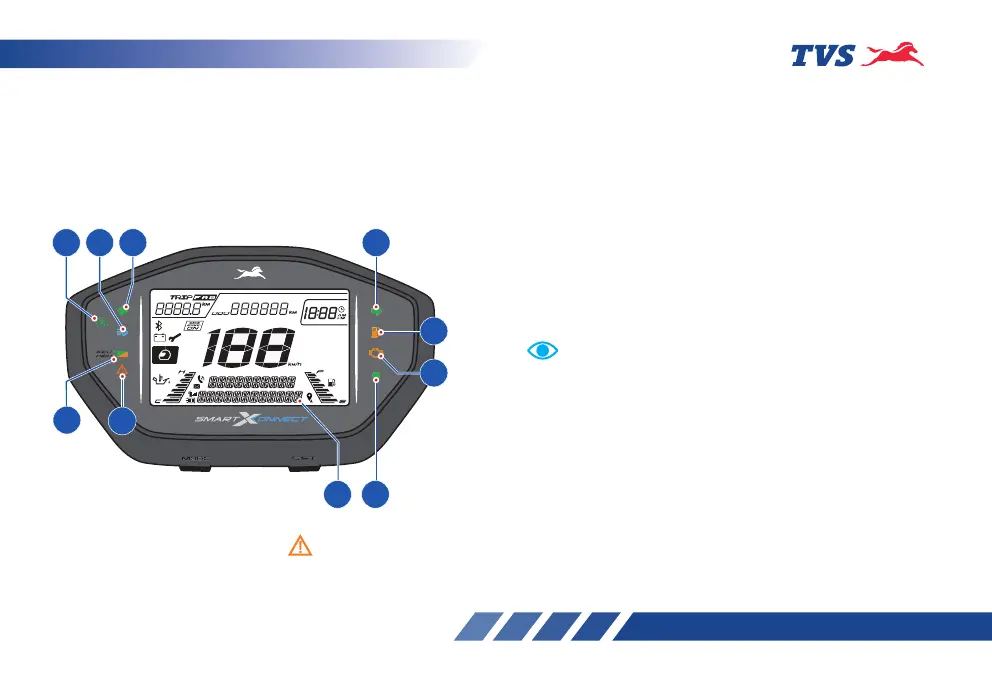

CONNECTED INSTRUMENT CLUSTER
Your TVS Jupiter ZX is provided with a fully digital
connected instrument cluster with lots of features.
The connected instrument cluster also has a mobile
app for ‘Smart Phones’ and navigation assist etc.
additionally along with other features.
1. ISG malfunction indicator ( )
ISG malfunction indicator will be turned 'ON' when
the ISG detects a fault in the system.
If the ISG malfunction indicator is glowing after the
self check of the speedometer, immediately contact
the nearest TVS Motor Company Authorised Main
Dealer or Authorised Dealer.
2. Economy and power indicator
Eco indicator (green lamp) indicates that the vehicle
is running in economy mode which gives better fuel
economy.
Power indicator (amber lamp) indicates that the
vehicle is running in power mode which results in
reduced fuel economy.
Always ride the vehicle in ‘economy mode’ for better fuel
efficiency.
If the battery voltage is very low, power mode lamp
will glow once you switch ‘ON’ the ignition key till you
start the vehicle. Electric starter will not work in this
condition. Use kick starter only. Contact TVS Motor
Company Authorised Main Dealer or Authorised Dealer.
Note
3 4 5 6
7
910
8
2
1

TVS Jupiter ZX Specifications

General

Engine Capacity	109.7 cc
Front Brake	Drum
Rear Brake	Drum
Kerb Weight	109 kg
Front Suspension	Telescopic
Tyre Type	Tubeless
Engine Type	Single Cylinder, 4 Stroke, Air Cooled
Transmission	CVT
Tyre Size (Front)	90/90-12
Tyre Size (Rear)	90/90-12
Length	1834 mm
Height	1115 mm
Seat Height	765 mm
Ground Clearance	150 mm
Wheelbase	1275 mm
Maximum Torque	8.4 Nm @ 5000 rpm
Brakes	Drum
Rear Suspension	Hydraulic
Starting Method	Electric Start
Max Torque	8.4 Nm @ 5000 rpm
Wheel Size	12 inches
