KNOW ABOUT YOUR NEO

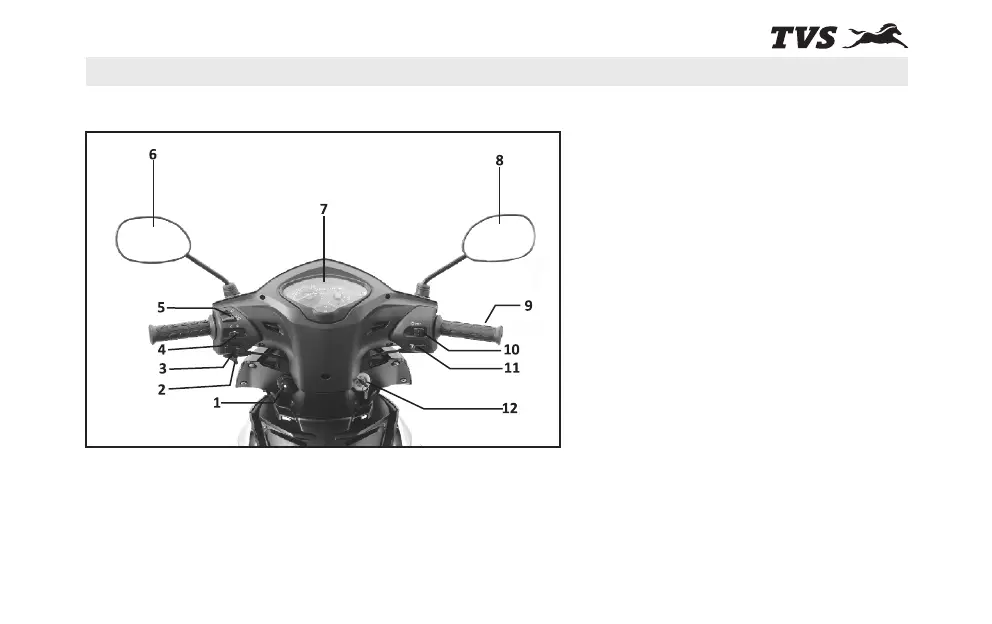

LOCATION OF PARTS - HANDLE BAR
12
10
9
8
7
6
1
2
4
5
3
Description:
1. Socket mobile charger
2. Choke lever
3. Switch horn
4. Turn signal lamp switch
5. High / Low beam switch & Pass by
switch
6. Rear view mirror L
7. Speedometer
8. Rear view mirror R
9. Lever front brake
10.Headlamp /position lamp switch
11.Electric starter switch
12.Steering cum Ignition lock
15

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the TVS NEO Series and is the answer not in the manual?

TVS NEO Series Specifications

General IconGeneral
Engine TypeSingle Cylinder, 4 Stroke, Air Cooled
Displacement109.7 cc
Tyre TypeTubeless
Transmission4 Speed
Fuel Tank Capacity10 liters
BrakesDrum
Front SuspensionTelescopic
Rear SuspensionHydraulic Shock Absorber
