TVS NTORQ 125 User Manual

17

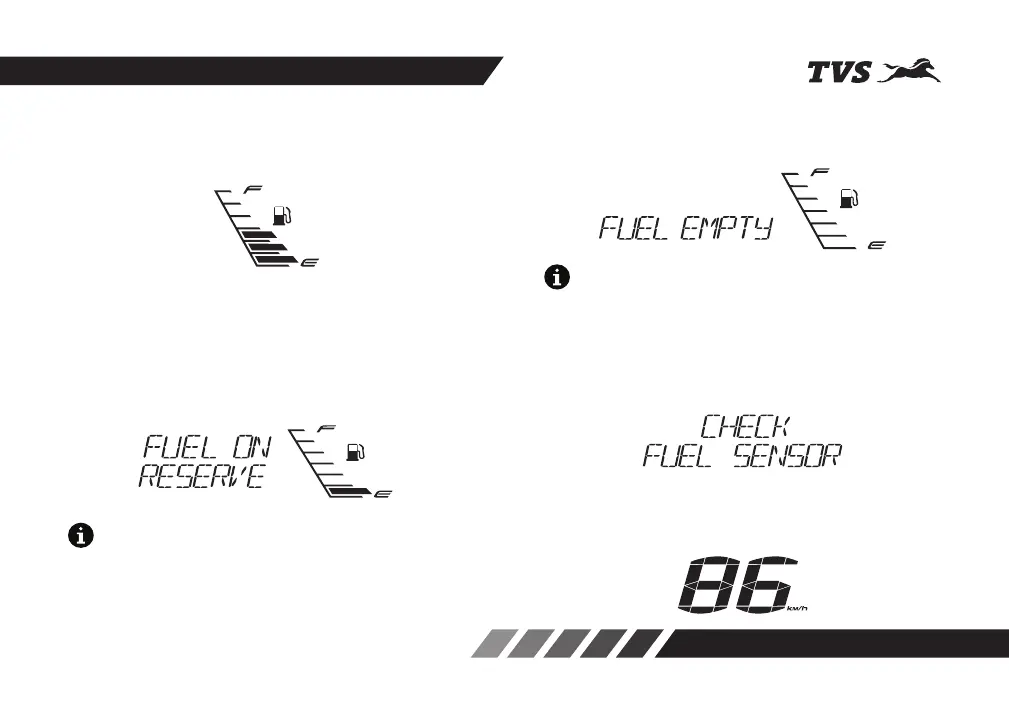

All the six bars will be displayed when the fuel in the
tank reaches above 5 liters approximately (full tank).
When the fuel reaches half tank (3.3 liters approx.)
the fuel gauge displays only three bars as shown.
When the fuel reaches minimum safe level (1.5 liters
approx.), the last bar of the fuel gauge starts blinking
and low fuel indicator starts glowing. The message
’FUEL ON RESERVE’ will be displayed at alpha
numeric display and ‘TRIP F’ meter starts counting
from 0.0 km as explained in page no. 19.
Fuel level shown is only for reference purpose and users
are not encouraged to calculate mileage of the vehicle
using the same.
Note
If the fuel level goes below minimum safe level
(1.1 liters approx.) ‘FUEL EMPTY’ message will be
displayed at alpha numeric display as shown.
1d. Speedometer
Indicates the vehicle speed in kilometer per hour by
default when the ignition is turned ON.
If all the fuel level bars of the connected instrument
cluster are blinking and an error message ‘CHECK FUEL
SENSOR’ displayed at alpha numeric display as shown,
Contact nearest TVS Motor Company Authorised Main
Dealer / Authorised Dealer.
Note

TVS NTORQ 125 Specifications

General

Displacement	124.8 cc
Max Torque	10.5 Nm @ 5, 500 rpm
Fuel System	Fuel Injection
Transmission	CVT
Front Brake	Disc
Rear Brake	Drum
Kerb Weight	118 kg
Front Tyre	100/80-12
Rear Tyre	110/80-12
Starting Method	Electric Start
Tyre Type	Tubeless
Seat Height	770 mm
Ground Clearance	155 mm
Engine Type	Single Cylinder, 4-Stroke, Air Cooled
Front Suspension	Telescopic
Fuel Tank Capacity	5.8 liters
Wheelbase	1285 mm
Rear Suspension	Coil Spring, Hydraulic Damped
