BRAKES
Front brake

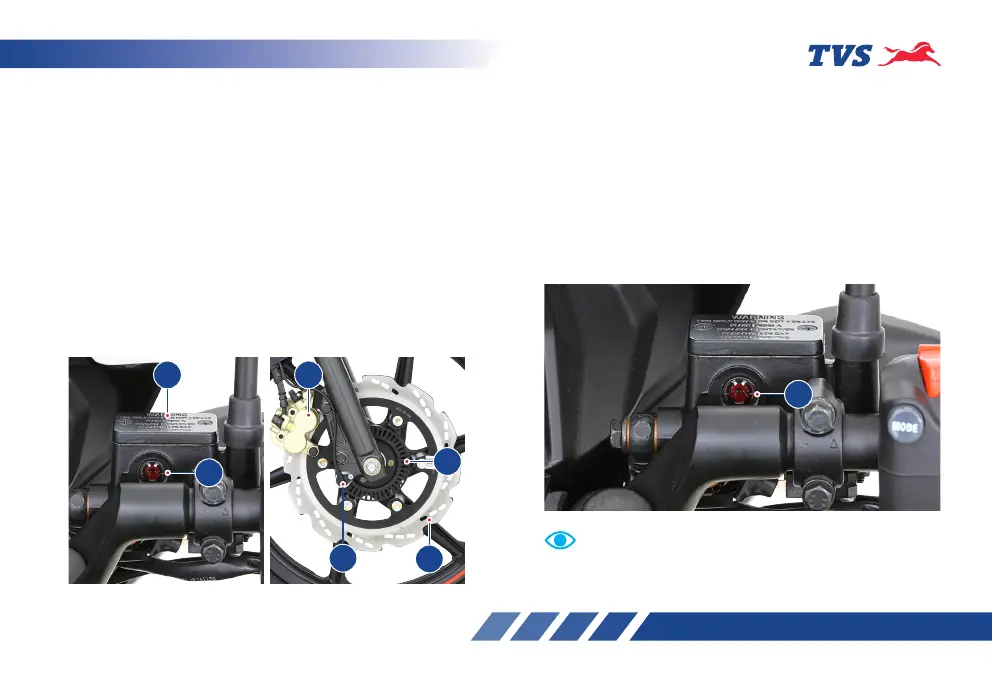

You can observe a master cylinder (1) on the right
side of the handle bar, a caliper assembly (2) fitted to
the fork leg R along with a wheel speed sensor (3), a
disc (4) and the toner ring (5) to the front wheel. Also
you can observe a high pressure hose connecting
the master cylinder to the HECU of ABS system
and another hose connecting HECU to the caliper
assembly.
1. Check the master cylinder brake fluid level
through the view piece glass (A).
2. Brake fluid level always should be above the
‘LOWER’ mark (B) on the master cylinder when
the master cylinder is parallel to the ground.
3. If the brake fluid level is below the mark or while
applying brake if you feel the brake is more
spongy or ineffective due to air entry, contact
TVS Motor Company Authorised Main Dealer /
Authorised Dealer for topping-up the brake fluid,
air bleeding and other brake related inspections.
Check the brake fluid level only when the master cylinder
is parallel to the ground.
Note
A
1
2
5
3
4
B
