Rear brake

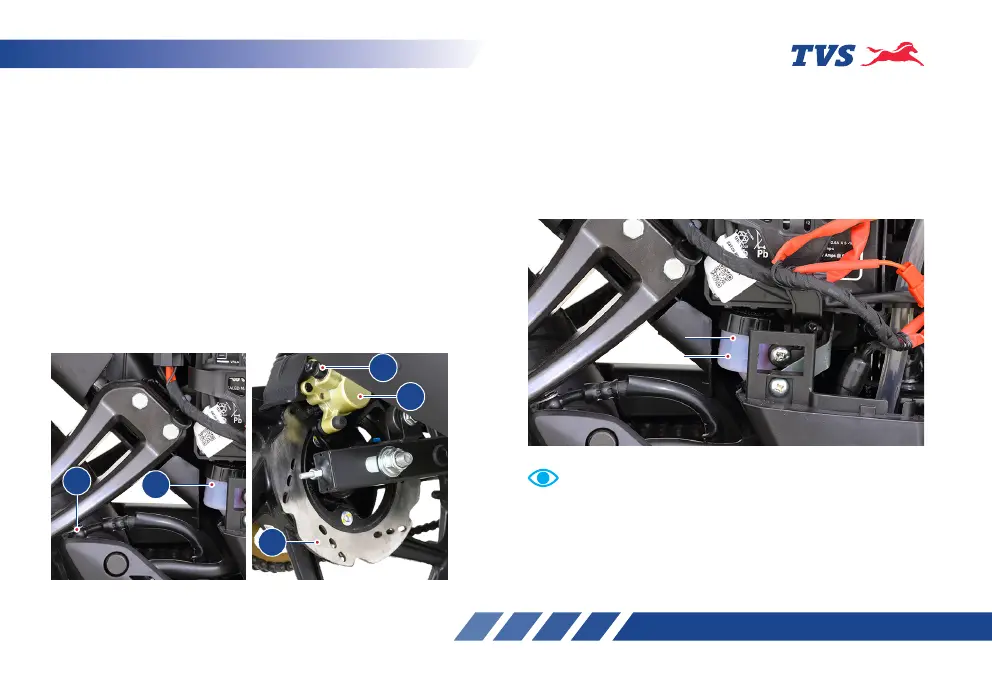

You can observe a master cylinder (1) mounted on
the right side pillion foot rest, a reservoir (2) below
the cover frame R, a caliper assembly (3) fitted on the
rear wheel axle, a disc (4) to the rear wheel and a high
pressure hose (5) connecting the master cylinder to
the caliper.
1. Remove the cover frame R (refer page no. 64
for removal procedure).
2. Check the brake fluid level in the reservoir. It
should be between maximum and minimum
level.
3. If the brake fluid level is below minimum or
while applying brake if you feel the brake is more
spongy or ineffective due to air entry, contact
TVS Motor Company Authorised Main Dealer /
Authorised Dealer for topping-up the brake fluid,
air bleeding and other brake related inspections.
Check the brake fluid level only when the master cylinder
is parallel to the ground.
