2. Overview
2.1 Components
1. Dolly latch base to attach the TW AUDiO T24N front dolly
2. Milling for rubberfeet for safely stacking loudspeakers
3. 15 mm multiplex housing – Warnex texture paint surface finish
4. Rigging plate for attaching accessory parts
5. Ergonomic carrying handles (left and right)
6. Rubber feet (4 pieces)
7. Handles (top and bottom)
8. M10 threaded insert for attaching accessory parts
9. Warning label
10. Switch for operating mode (passive, biamp)
11. Standard connection panel with two speakON® connectors
12. Type label
13. 12“ cone drivers
14. Interchangeable horn with 1.4“ compression driver
15. Phase plug

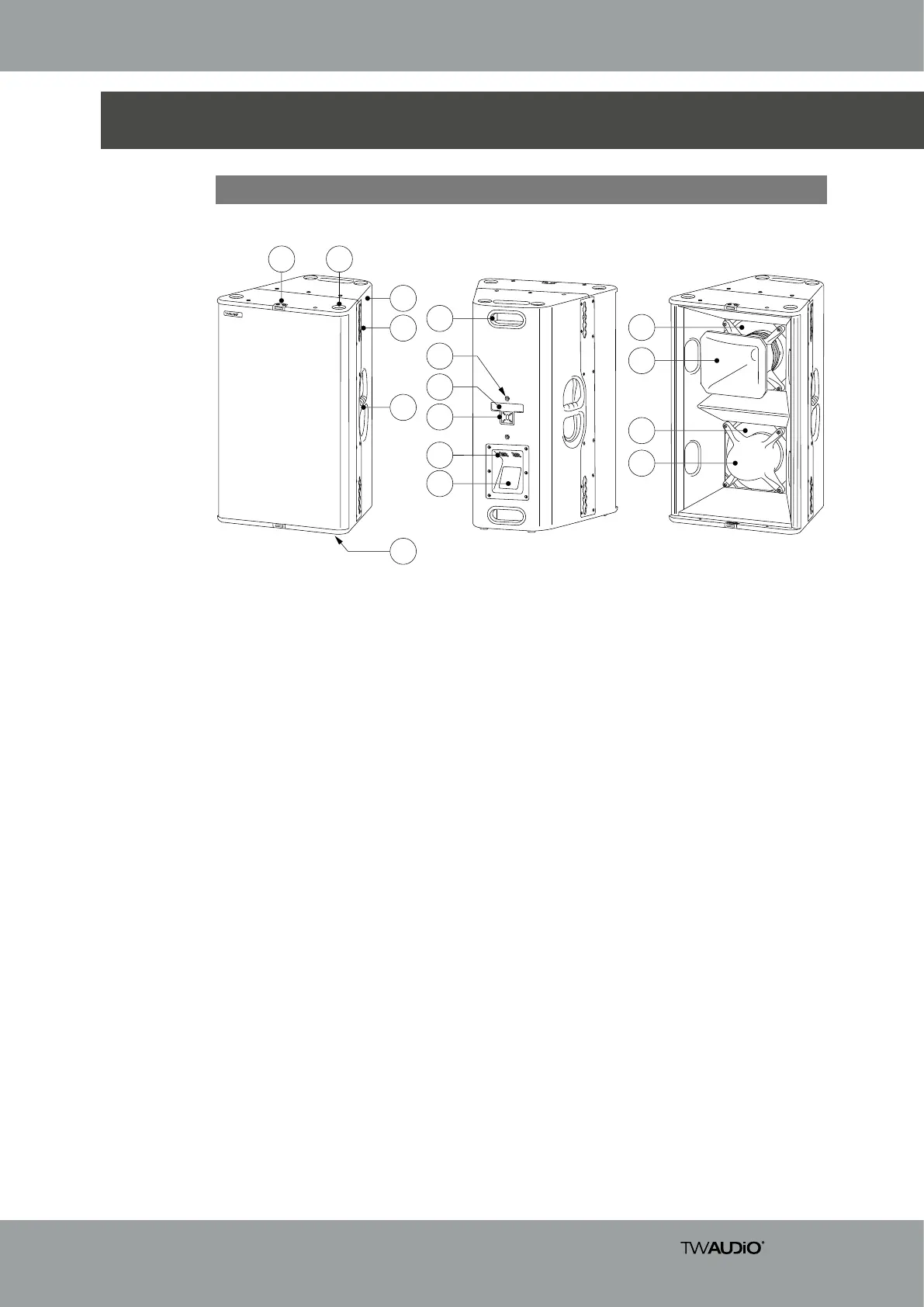

Figure 2.1 - Overview
