2.2 Variants
The modular design of the high frequency unit allows a quick change between the different
characteristics of dispersion.
The entire high frequency unit consists of the horn cone (1), the horn base (2), the driver plate
(3) and the compression driver (4).

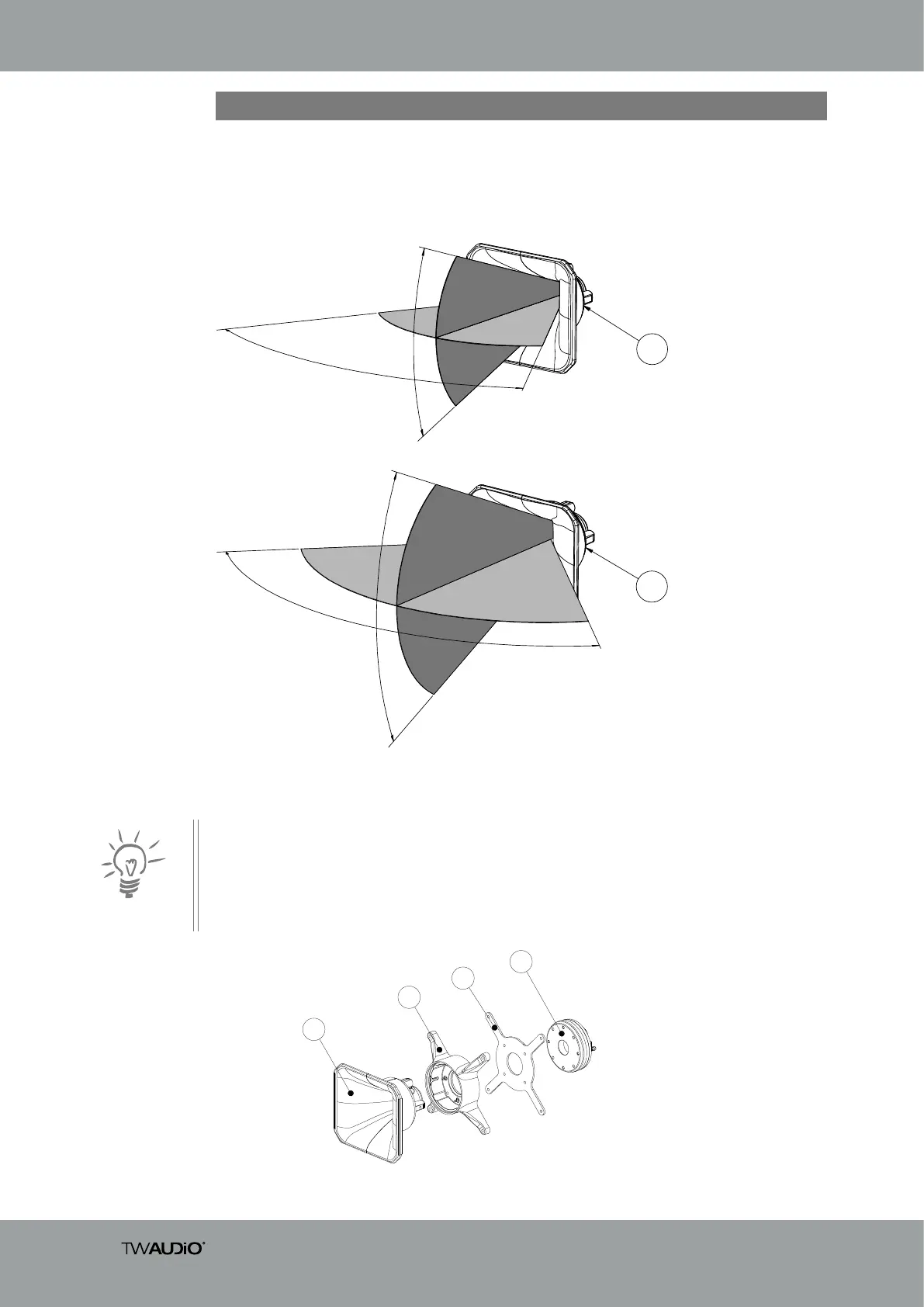

Figure 2.2.1 - Variants of the T24N horn cone
The T24N loudspeaker is available in a 60° × 40° variant and in a 90° × 50° variant. The
specified degree values refer to the horizontal and vertical radiation characteristics of the
horn. Different interchangeable horn cones can be installed for this purpose. The variant of
the T24N loudspeaker can be identified on the outside of the horn cone (see figure 2.2.1).
9
0
°
90°
50°
90°
60°
40°
Figure 2.2.2 - High frequency unit
1
2
3
4
