7. PATIO DESIGN CONSIDERATION
Heater placement is critical for effective and efficient patio heating. If heaters are placed too close
together or mounted too low, people become uncomfortable. If the heaters are placed too far apart
on a breezy or wind-swept patio area, the patio may never get warm. Gas Infrared heaters work
best if they are placed in areas of the greatest heat loss, such as the open side of a semi-protected
patio area.

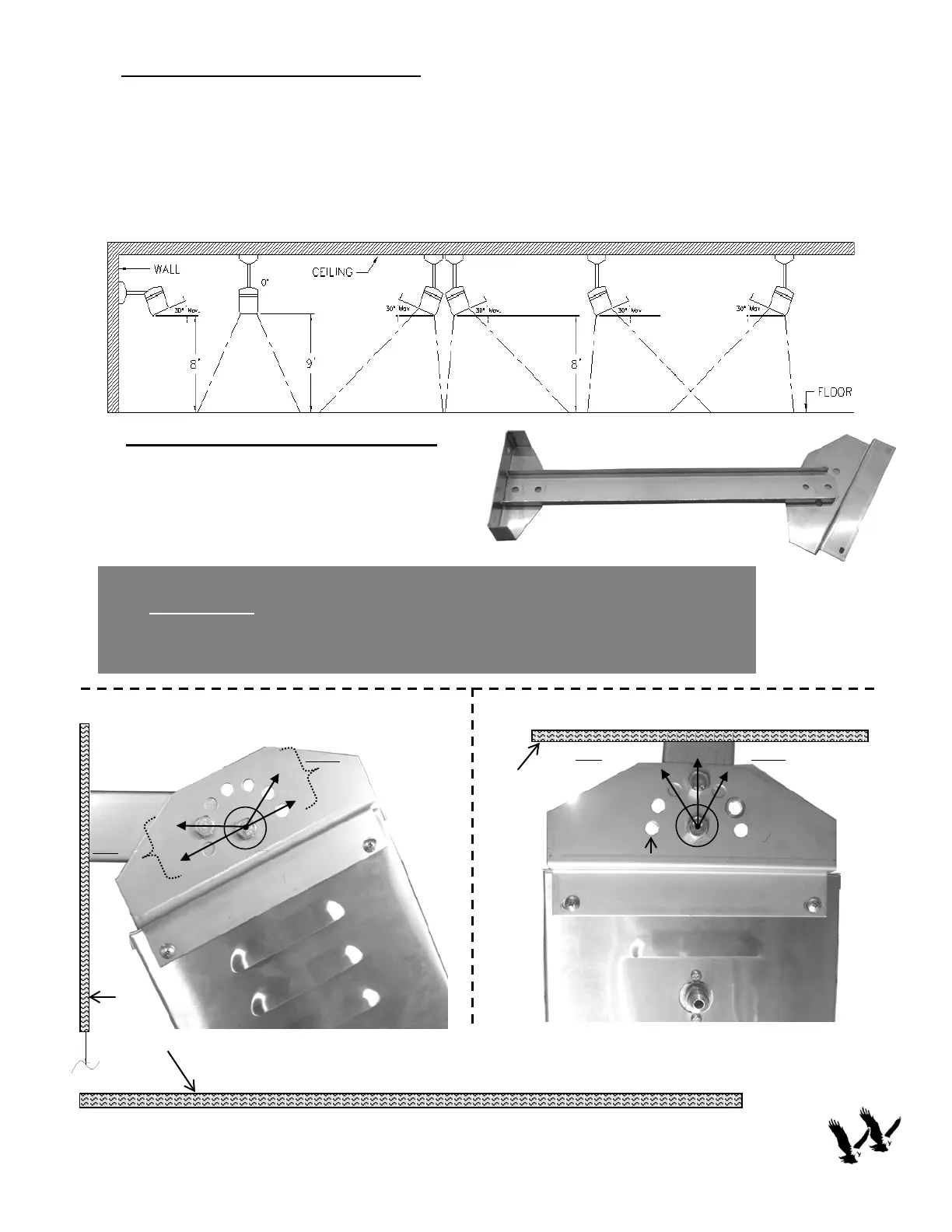

 MOUNTING BRACKET ASSEMBLY
∅∅
9
0
o
30
o
WALL MOUNTED
DO NOT USE
HEATER
Wall
⊗
⊗
⊗
Left side
bracket
Right side
bracket
0
o
Ceiling
CEILING MOUNTED
⊗
⊗
⊗
⊗
Degrees (
o
) are in
reference to the floor.
Right side
bracket
Floor
0
o
⊗
DO NOT USE
⊗
30
o
30
o
Left side
bracket
HEATER
Angle mounting: The heater may be angle-
mounted to a maximum of 30º maximum to
accommodate mounting the heaters around the
edges of the patio or under eaves.
NOTE: Use only the mounting brackets provided by the manufacturer. Heater must be leveled only
on a Horizontal Axis
but can be angled to a maximum of 30 degrees in reference to the floor. DO
NOT mount the heater on a vertical axis. Such installation is considered unsafe and improper and
will automatically VOID the product’s warranty.
30
o
