Twin Eagles TEGH48 - Replacement Parts List

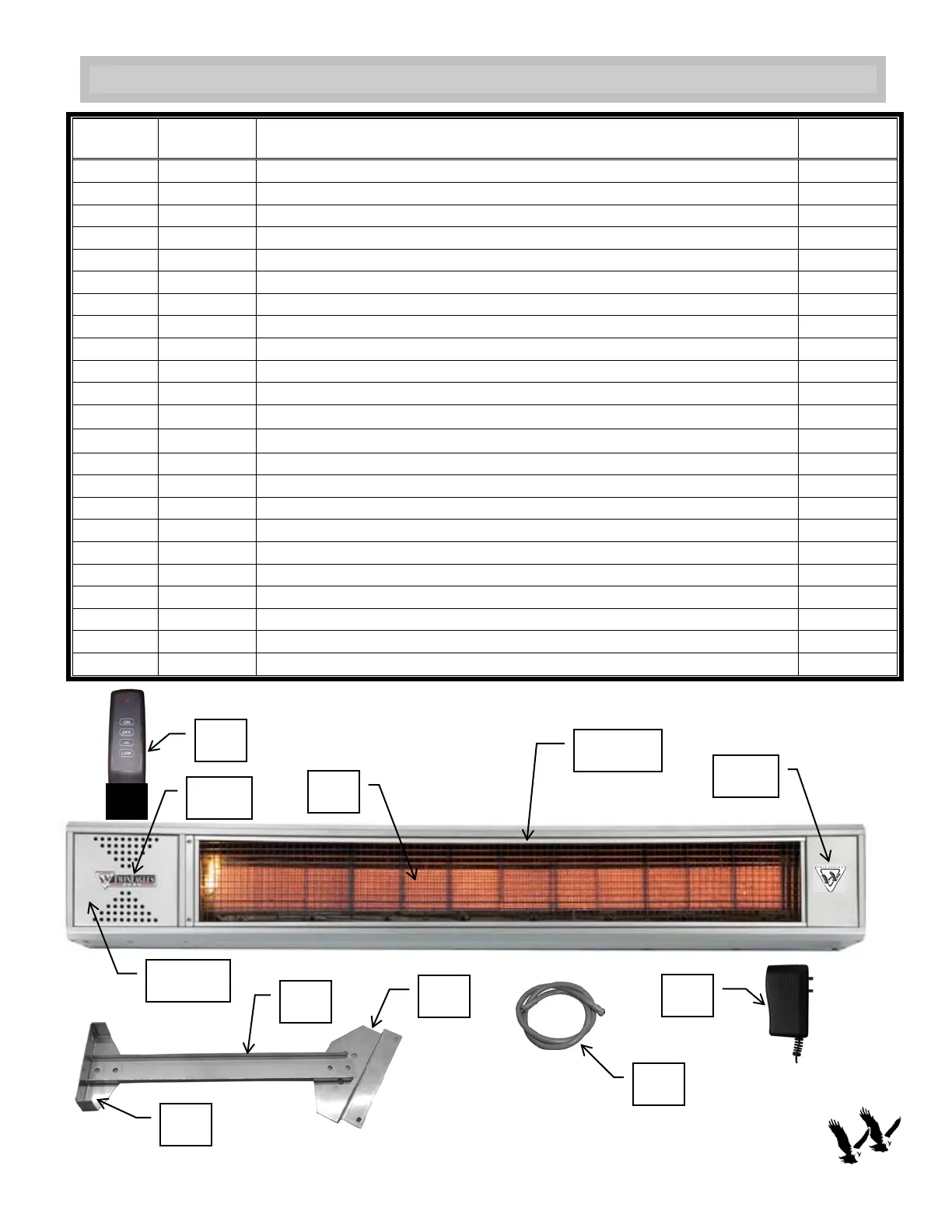

REPLACEMENT PARTS LIST – GAS INFRARED HEATER
Item
Number
Part
Number
Part Description Qty
1
15325
Gas Hose
1
2
16174
A/C 120V to 6V adapter (OPTIONAL)
1
3
16175
Wireless Remote Control
1
4
21922
Plate Brackets
2
5
21923
Arm Brackets
2
6
21924
Wall Mount Brackets
2
7
13343
Infrared Burner
1
8
16173
Battery pack (NOT SHOWN)
1
9
16172
Wire Harness, (NOT SHOWN)
1
10
15108-36
Orifice 36 Natural Gas (NOT SHOWN)
1
11
15108-50
Orifice 50 LP Gas (NOT SHOWN)
1
12a
13112
T
WIN
E
AGLES
Logo
1
12b 13147
T
WIN
E
AGLES
Emblem
1
13a
13850Ya
Heat Diffuser (TEGH48)
1
13b
13850Yb
Heat Diffuser (TEGH60)
1
14a
21907
Door, Component Compartment (TEGH48)
1
14b
21942
Door, Component Compartment (TEGH60)
15
16171
Receiver, Control Module (NOT SHOWN)
1
16
15113
2 Stage Gas Valve (NOT SHOWN)
1
17
13348
Orifice, Pilot 0.012 LP (NOT SHOWN)
1
18
13349
Orifice, Pilot 0.018 NG (NOT SHOWN)
1
19
13347
Pilot Burner (NOT SHOWN)
1
20
12654
Coupling,
3
/
8
” NPT x
3
/
8
1
” M-flare (NOT SHOWN)
For ordering parts, contact Twin Eagles, Inc., Toll free No. 1(800) 789-2206.
