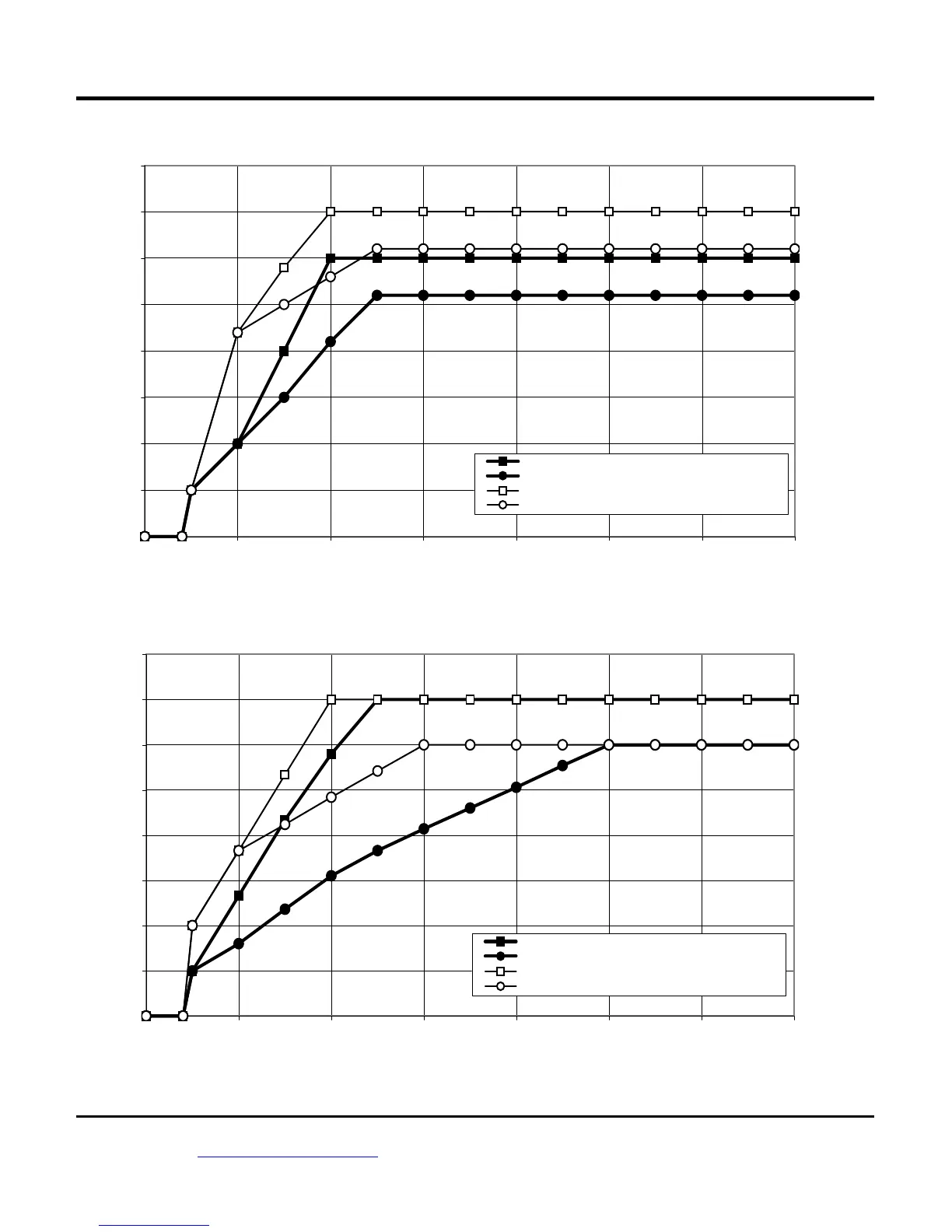

Figure 6 - Street Advance Curves
Figure 7 - Race Advance Curves
0
5
10
15
20
25
30
35
40
0 1000 2000 3000 4000 5000 6000 7000
ENGINE RPM
ADVANCE (DEG)
MAX ADVANCE AT WIDE OPEN THROTTLE
MIN ADVANCE AT WIDE OPEN THROTTLE
MAX ADVANCE WITH VOES GROUNDED
MIN ADVANCE WITH VOES GROUNDED
0
5
10
15
20
25
30
35
40
0 1000 2000 3000 4000 5000 6000 7000
ENGINE RPM
ADVANCE (DEG)
MAX ADVANCE AT WIDE OPEN THROTTLE
MIN ADVANCE AT WIDE OPEN THROTTLE
MAX ADVANCE WITH VOES GROUNDED
MIN ADVANCE WITH VOES GROUNDED
