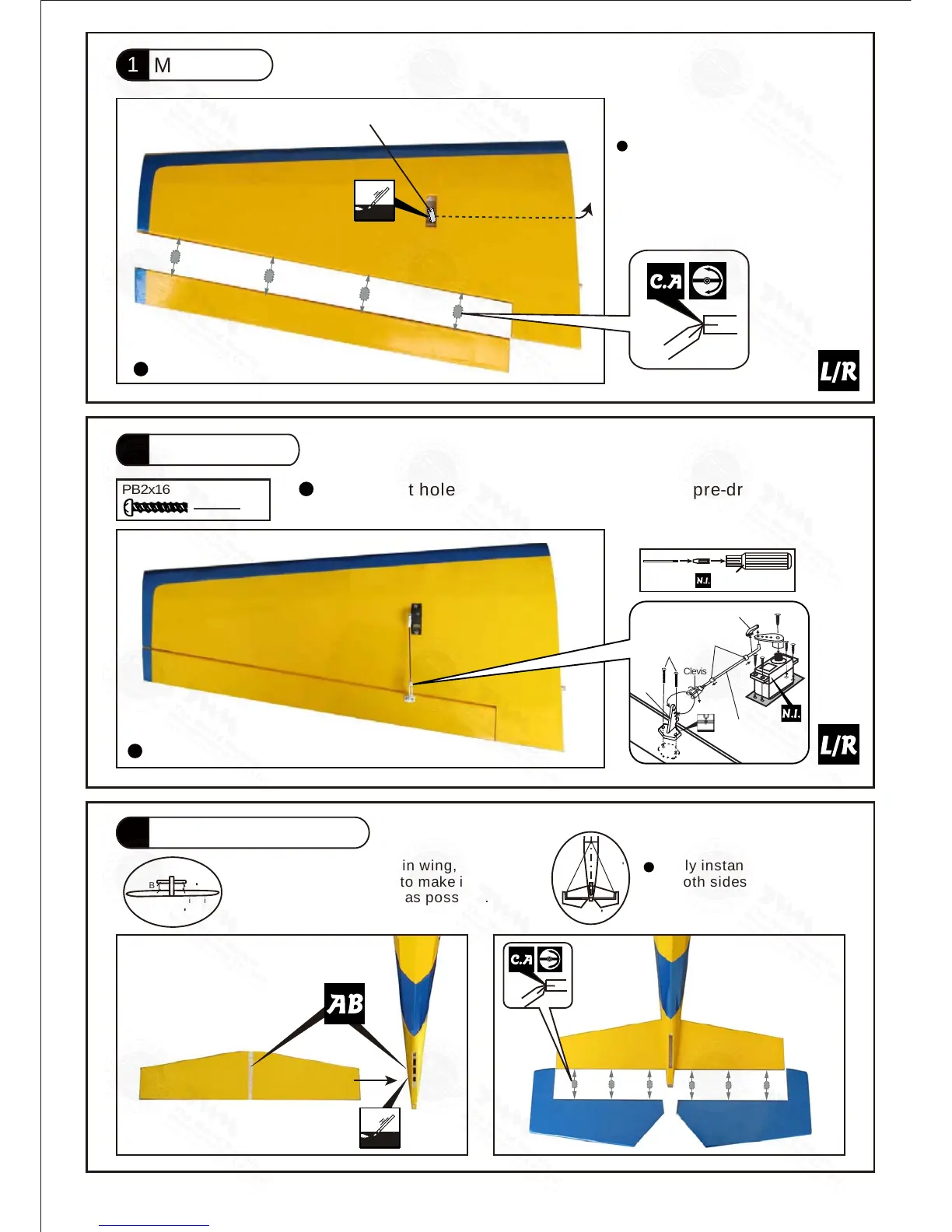

TWM Extra 300 EP (40) - Aileron Servo; Stabilizer & Elevator

Temporary install the main wing, adjust
leveling of the stabilizer to make it as
parallel to the main wing as possible.
(Stabilizer)
(Main Wing)
Apply instant type CA glue
to both sides of each hinge.
*Also refer to step 13 Wing Setting*
B
B=B
A=A
A A
B
Aileron Servo Lead
1
Aileron Servo
Stabilizer & Elevator
Main Wing
2
3
P.3
PB2x16mm Screw
4
Bottom View
Bottom View
Ø1mm pilot holes for World Models horn are pre-drilled. Please
look for pin-hole marks at under side of control surfaces.
Apply instant type CA glue
to both sides of each hinge.
2mm
Fuel Tube
d2xD4x4mm
Clevis
PB2 x 16mm
Horn
Pushrod
Ø1.4x100mm
Straper
TWM PL8210010
CLEVIS WRENCH
