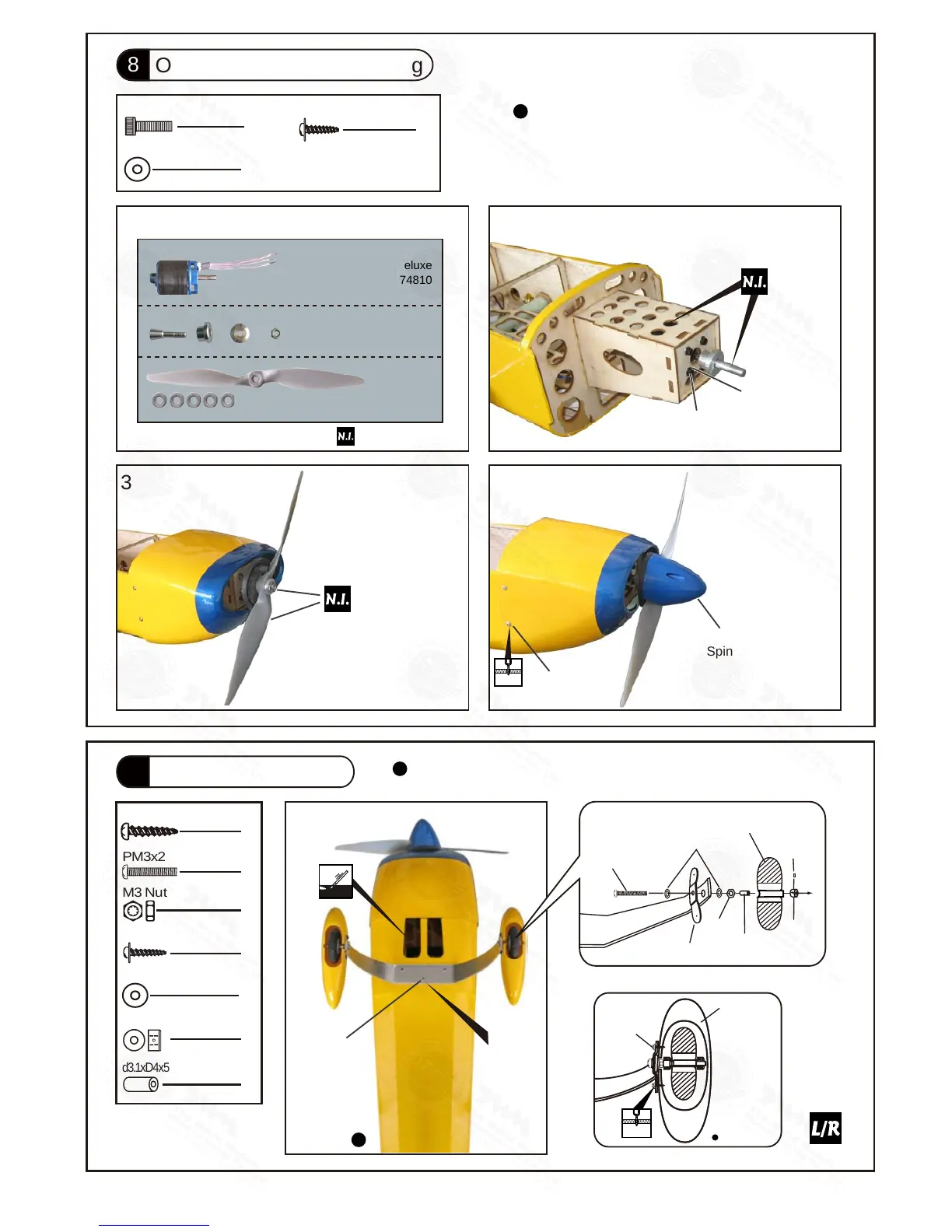

TWM Extra 300 EP (40) - Main Landing Gear

P.6
9
Main Landing Gear
8
Outrunner Motor / Cowling
Bottom View
Make sure the rotating motor
casing is not in contact with
wirings or anything.
Ø1mm pilot holes are pre-drilled. Please look for pin-hole
marks at under side of fuselage.
PM3x25mm Screw
PA2.6x10mm Screw
PA2.6x10mm
3.1mm
Collar
PWA2x6mm Screw
d3.1xD4x5mmCopper Tube
M3 Nut
M3x8mm
Socket Head Screw
E271 EPTS Optional Parts
d3xD7mm Washer
d3xD7mm Washer
d3xD7mm
Washer
PWA2x8mm Screw
PWA2x8mm
Ø57mm
Spinner
Installation based on optional electric power package from
World Models, parts no. E271 EPTS.
Outrunner 37/48 Deluxe
KM0374810
Propeller Adaptor (D5mm)
HW2340102
Propeller 11x8 (Electric)
PL6211108
43
2
3
4
4
2
2
1
2
2
4
4
4
M3x8mmSocket Head Screw
Wheel Pant
Completed
PM3x25mm
Plate 0.5mm
d3xD7mm
Washer
Wheel
Ø40mm
3mm
Set Screw
3.1mm
Collar
M3 Nut
Copper Tube
d3.1xD4x5mm
PWA2x6mm
1mm
1.5mm
E271XMPO26801110
