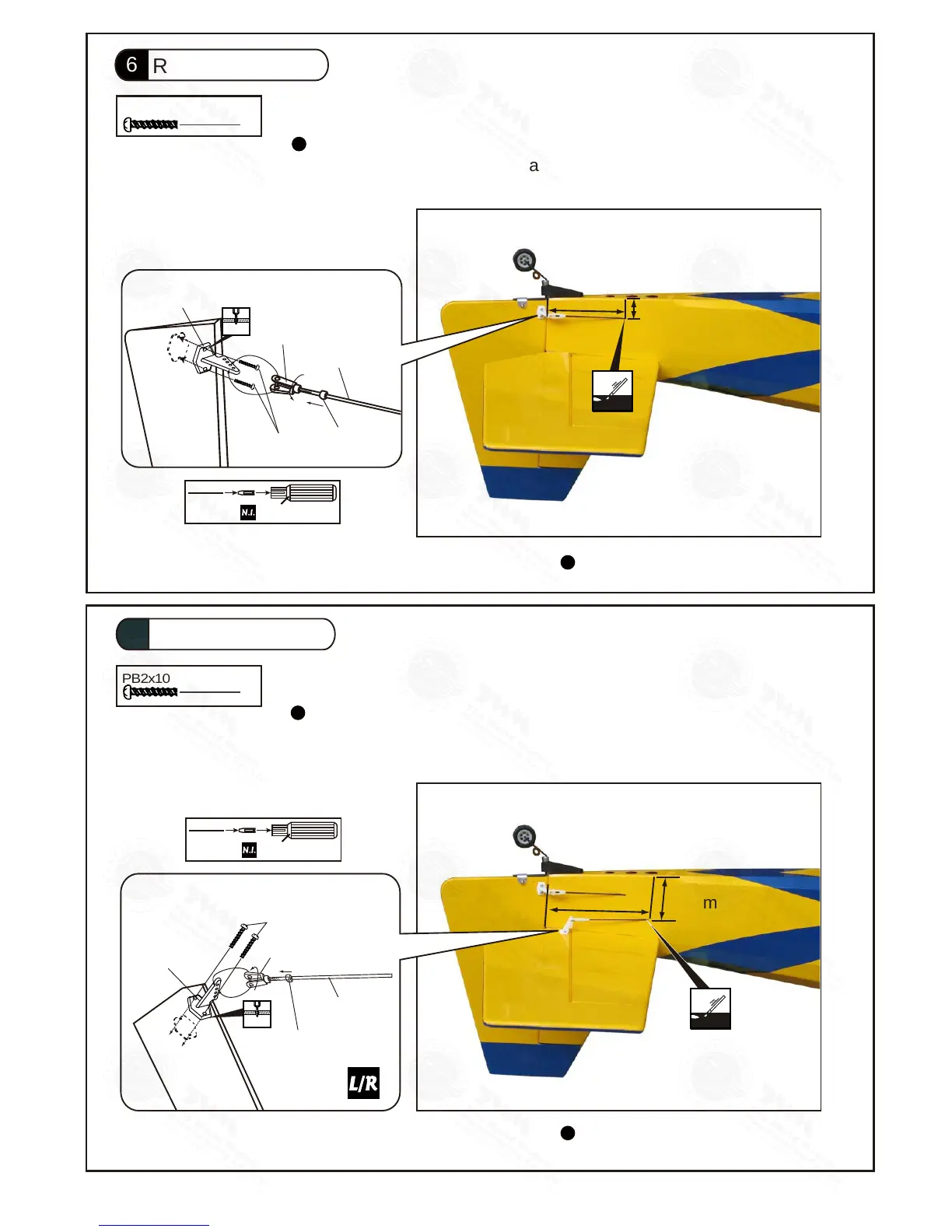

TWM Extra 300 EP (40) - Rudder Pushrod; Elevator Pushrod

Rudder Pushrod
6
P.5
Ø1mm pilot holes for World Models horn are pre-drilled.
Please look for pin-hole marks at under side of control surfaces.
Ø1mm pilot holes for World Models horn are pre-drilled.
Please look for pin-hole marks at under side of control surfaces.
48mm
105mm
21mm
80mm
Elevator Pushrod
7
PB2x10mm Screw
4
PB2x10mm Screw
2
Bottom View
Bottom View
Clevis
Horn
Fuel Tube
d2xD4x4mm
PB2x10mm
Pushrod
Ø1.4x460mm
Clevis
Fuel Tube
d2xD4x4mm
PB2x10mm
Pushrod
Ø1.4x548mm
Horn
2mm
2mm
TWM PL8210010
CLEVIS WRENCH
TWM PL8210010
CLEVIS WRENCH
E271XMPO26801110
