Step 9
-M5X6 cup head screws*2
-T-nut 20-M5*2
-X-axis limit trigger plate*2
-3.0 hexagonal wrench
Required parts

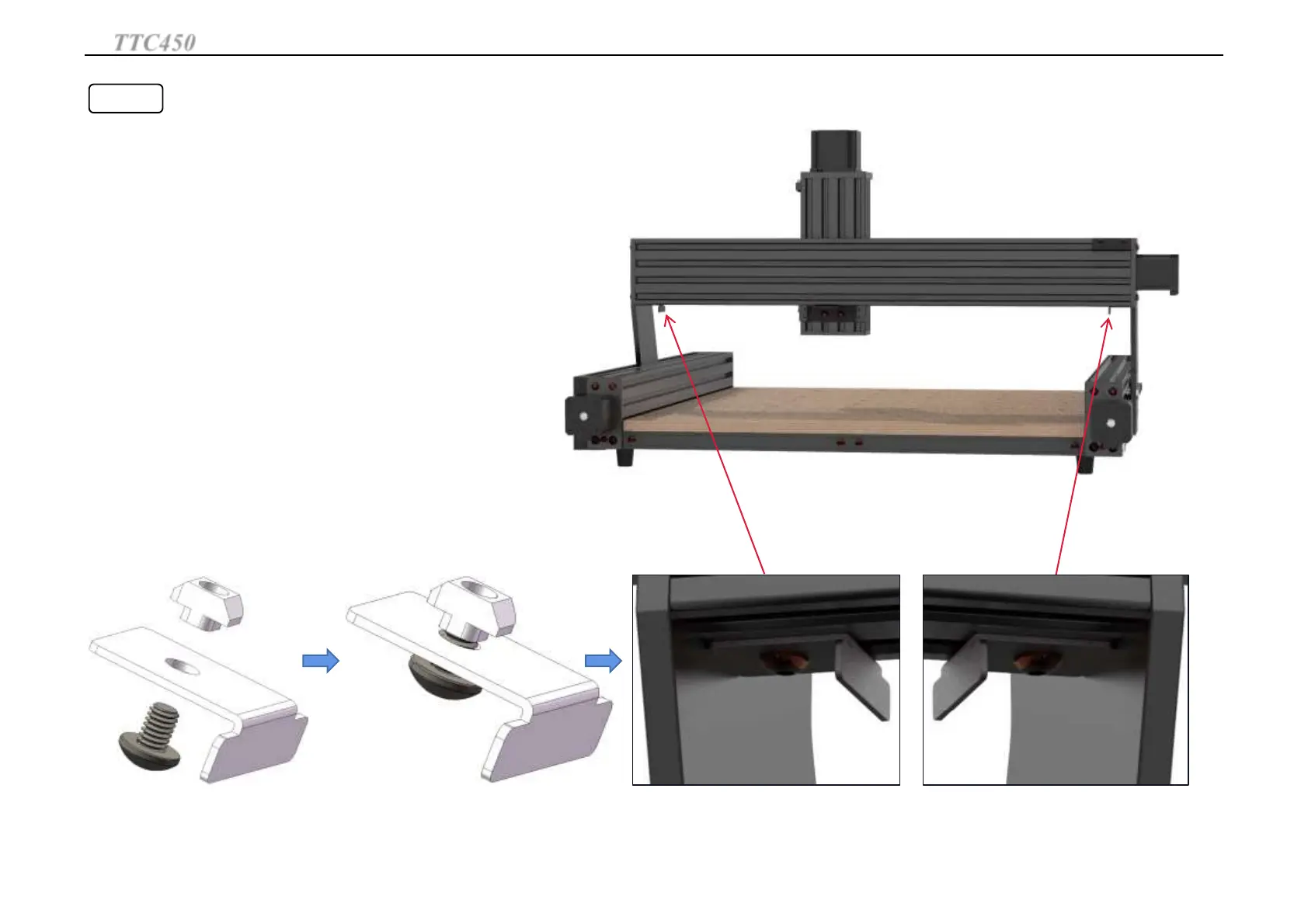

Insert M5X6 screws through the X-axis limit trigger
plate and then screw into the T-nuts.
Insert it into the profile slot at the bottom of both ends of
the X-axis and tighten it.
X-axis limit trigger plate installation
TTC450
Set up TTC450
14
