Step 15
-Profile seal*3
Required parts

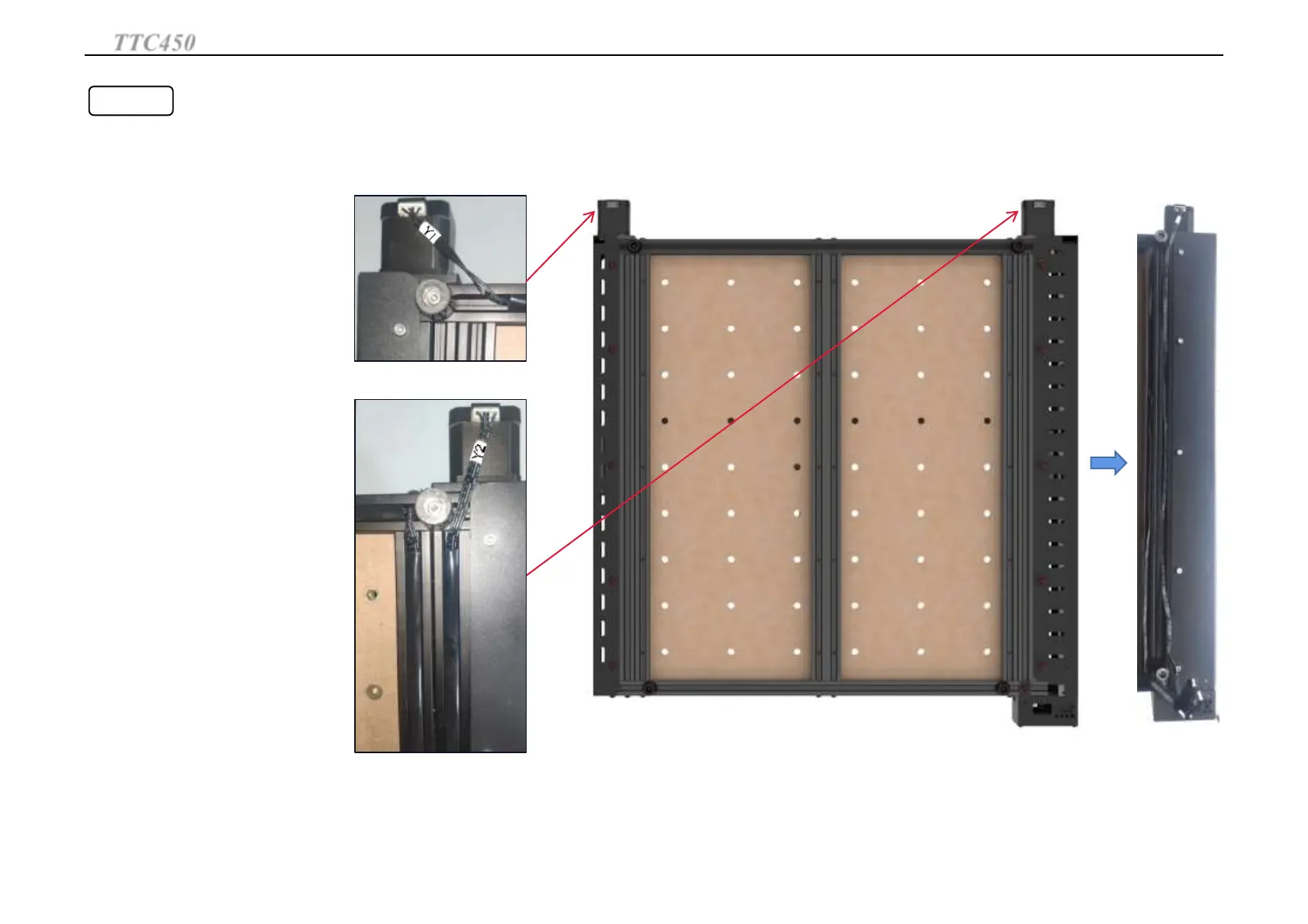

Y-axis motor cable fixed
Insert the Y-axis motor wire into
the bottom profile slot
The profile seal is pressed firmly.
The motor line is inserted into the
Y-axis stepper motor.
Y2
Y1
TTC450
Set up TTC450
20
