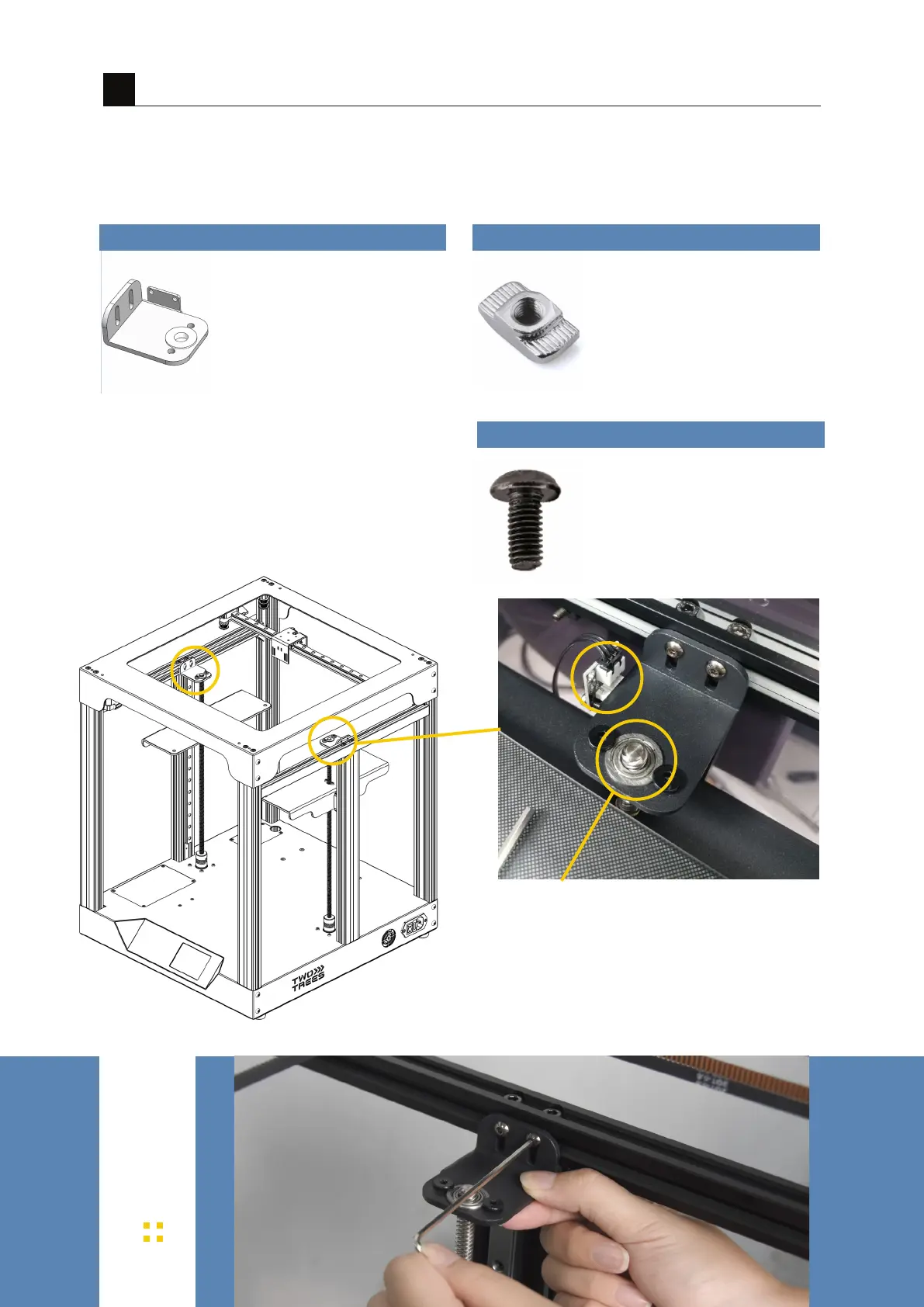

8. Install the T8 Lead Screw Holder and Z-axis End Stop
安装丝杆固定座与Z轴限位开关
Slightly higher
稍微出头
The Z-axis end stop faces backwards.
Z轴限位开关面向右后方。
And remember to connect the wire with the end stop.
记得连接限位开关的电线
T8 Lead Screw Holder
丝杆固定座
x2
T-nut T型螺母
x4
M4*8 Screw 螺丝
x4
8
Note: Do not over tight in case you need
to adjust here later.
注意： 一开始不要扭太紧，以防之后还需要调整这里。
