How to construct the sauna:
Note – there are 11 power connections in all and several low voltage connections.
(7) are in the sauna: (back, left and right) panels, bench valance, bench valance fan,
bench and main power connection.
There are additional power connections on the top outer face of the ceiling.
(1) Mains connection cable for the sauna. Do NOT insert the main electrical connection
cable for the sauna into the socket before all the assembly steps have been
completed correctly.
------------------------------------------------------------------------------------------------------------------------------------------------
There are (5) power connection/ junction boxes that are labelled accordingly and must be connected
after assembling each section.
Back wall panel Left Right Bench valance Bench
B1 to B1 L1 to L1 R1 to R1 S3 to S3 S1 to S1
These (5) power plugs are connected easily by simply inserting the white plug of the white junction
box cover into the correct plug-in connection (3) in the junction box.

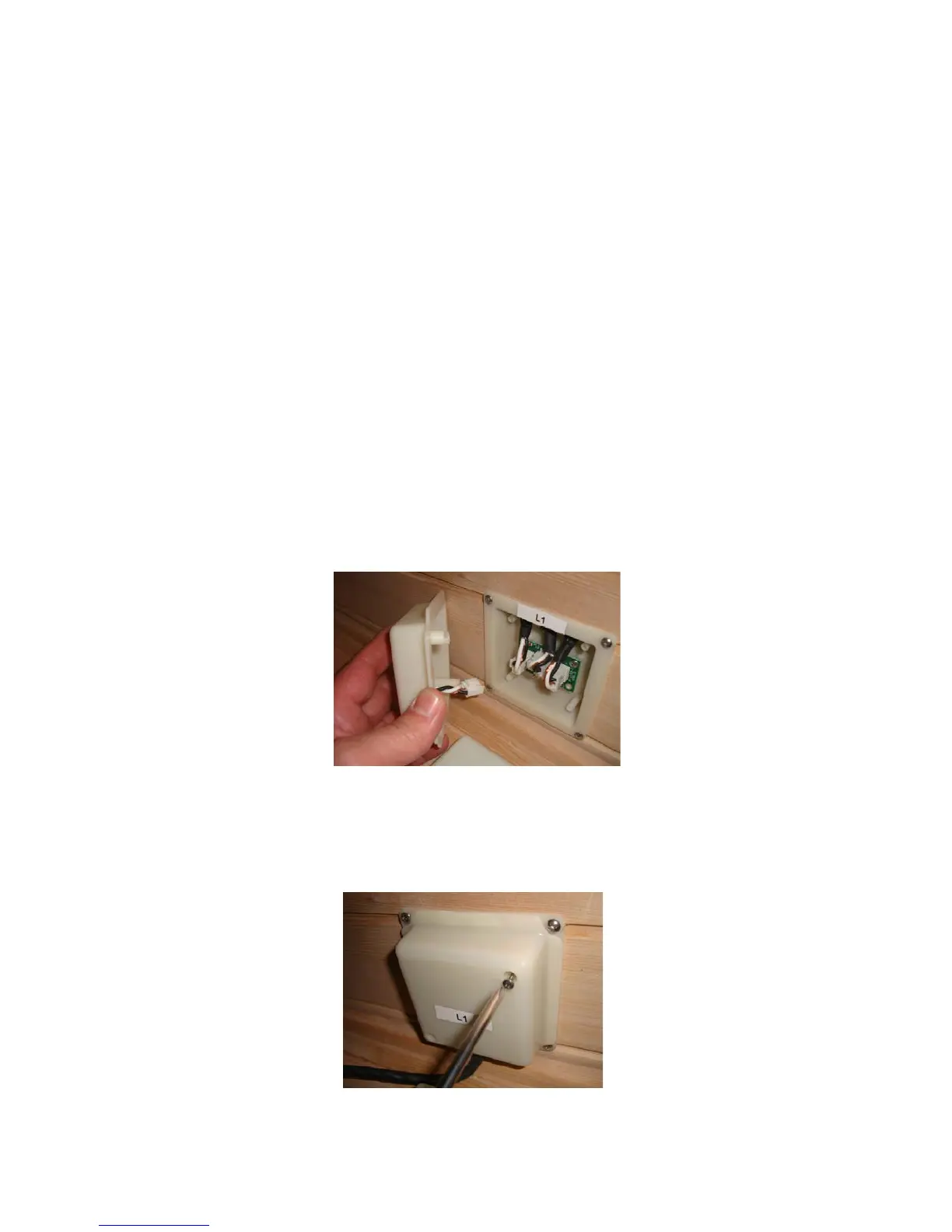

Example below: L1 to L1 (left wall panel power connection) (left wall panel junction box)
Fitting the junction box covers: After the junction box has been connected securely fix the junction
box cover with a Phillips screwdriver and 2 Phillips screws from Box 1.
